Wiring diagram for Glove Box Light/Cargo Light system

Wiring diagram for Glove Box Light/Cargo Light system
Wiring diagram for Glove Box Light/Cargo Light systemOriginal file
Wiring diagram for Glove Box Light/Cargo Light system

Electrical & Vacuum Troubleshooting Manual 1979View all 48

Trailer circuitry wiring diagram Wiring diagram for backup lights on a 1979 Ford Bronco and F100-350. Wiring diagram for Turn Signal/Emergency Warning Lights Wiring diagram for vehicle lights, fuses, and switches. Page from a manual explaining turn signals, emergency flashers, and stoplights. 1979 Ford truck interior light systems locator for instrument, dome, cargo lights and cigar lighter Document page with wiring diagrams and troubleshooting steps for vehicle interior lights. Wiring diagram for Glove Box Light/Cargo Light system Wiring diagram for vehicle control and instrument lights. 1979 Ford truck warning lights and gages locator with sending units, switches and instrument cluster Page from a vehicle manual explaining warning lights and troubleshooting. Wiring diagram showing vehicle electrical components and connections. Document explaining Ford Bronco fuel and temperature gauges with diagrams Wiring diagram for 1979 Ford Bronco fuel and temperature systems. Ford F-Series / Bronco accessory systems pictorial: radio, wipers, speed control, horn, power tailgate window Wiring diagram page for horn and fog lamp circuits with relays and connectors 48photos in this albumView all

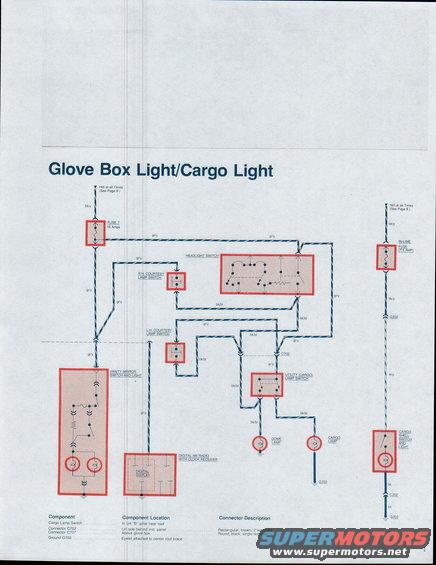

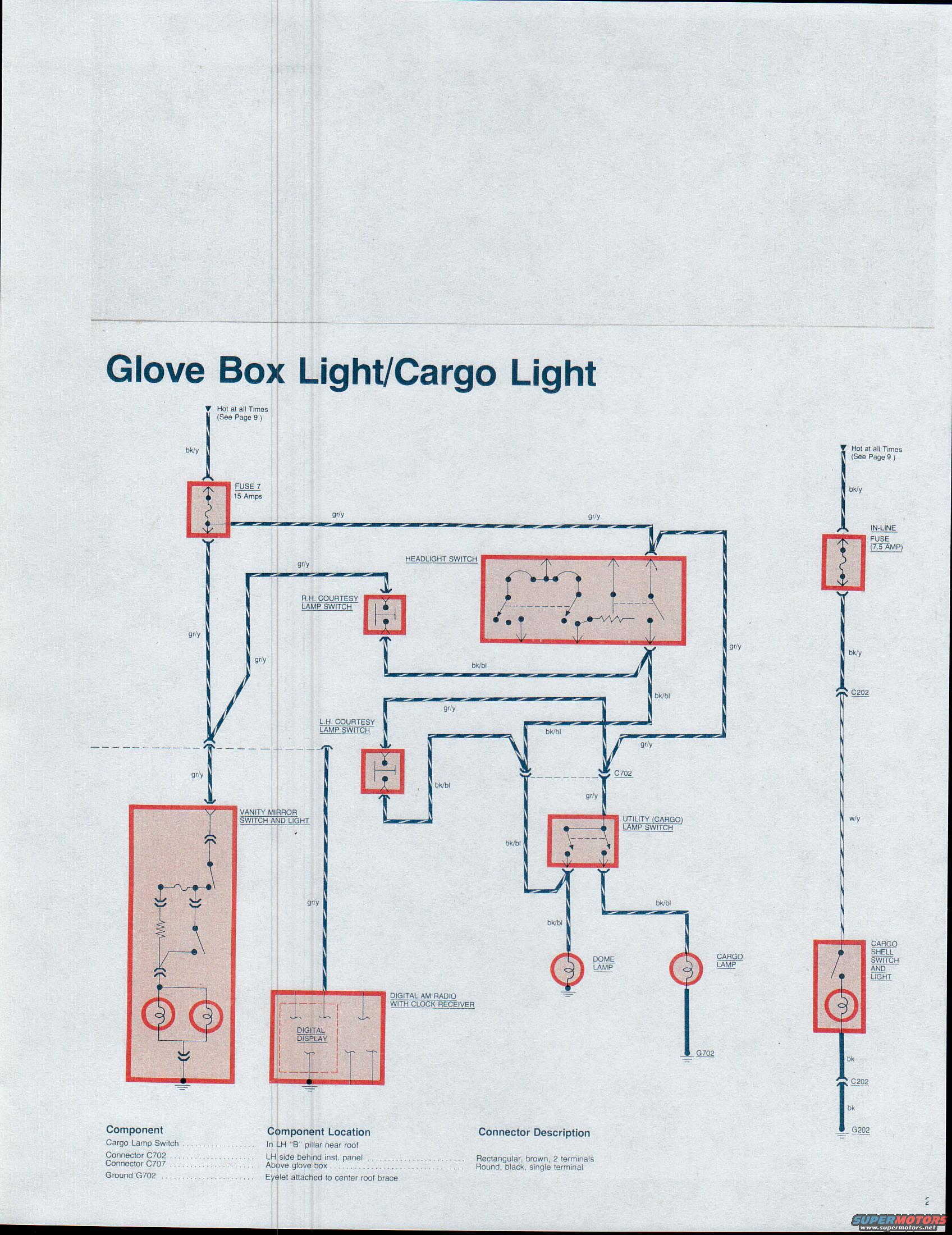

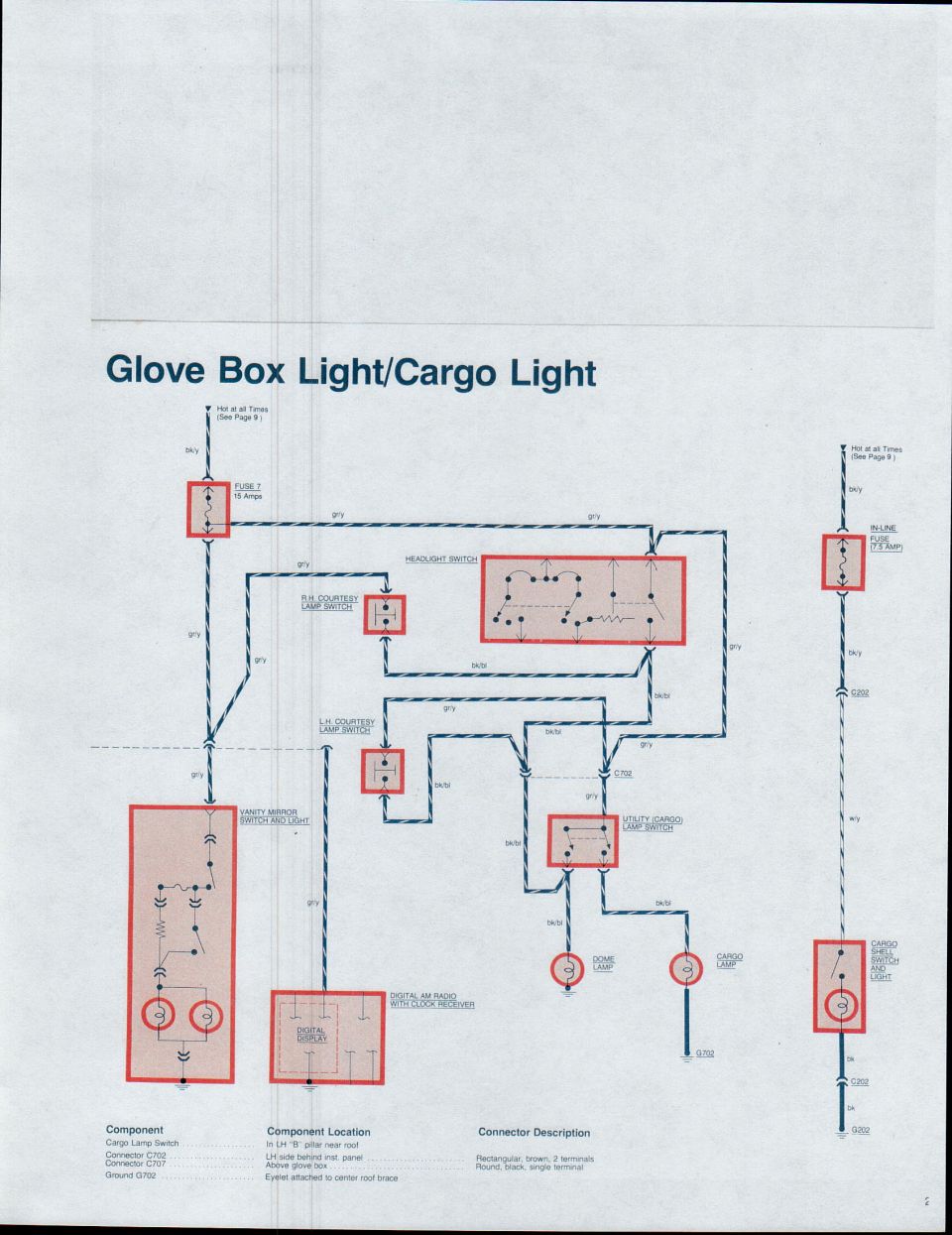

This is a wiring diagram for the Glove Box Light/Cargo Light system. It details the components, their locations, and connector descriptions.
