Document explaining brake and transmission vacuum supply system.

Document explaining brake and transmission vacuum supply system.
Document explaining brake and transmission vacuum supply system.Original file
Document explaining brake and transmission vacuum supply system.

Electrical & Vacuum Troubleshooting Manual 1979View all 48

Wiring diagram page for horn and fog lamp circuits with relays and connectors Ford radio circuit operation and trouble-shooting page: fuse 10, speaker resistance 2-4 ohms diagnosis Ford radio wiring schematic: AM/AM-FM monaural and AM/FM stereo speakers, fuse 12 7.5A, connector list Page from a manual about windshield wiper and washer system troubleshooting and diagrams. Wiring diagram page for conventional and interval windshield wiper circuits Ford Bronco power rear window wiring and trouble-shooting: fuse 10, accessory safety relay, tailgate switch 1979 Ford truck heater/air conditioning and deluxe heater component locator, electrical and vacuum Diagram of the Heater Only Electrical System with schematic and troubleshooting steps. Diagram of the Heater and Air Conditioner Electrical System with troubleshooting tips. Page from a vehicle manual about heater and air conditioner vacuum systems. Diagram of a vehicle's heater and A/C vacuum system. Page about vacuum systems, troubleshooting tools, and color designations. Vacuum distribution diagram for a vehicle Document explaining brake and transmission vacuum supply system. Wiring diagram for a vehicle's speed control system Fuse block layout and fuse chart with voltmeter, DC ammeter and ohmmeter test instructions 48photos in this albumView all

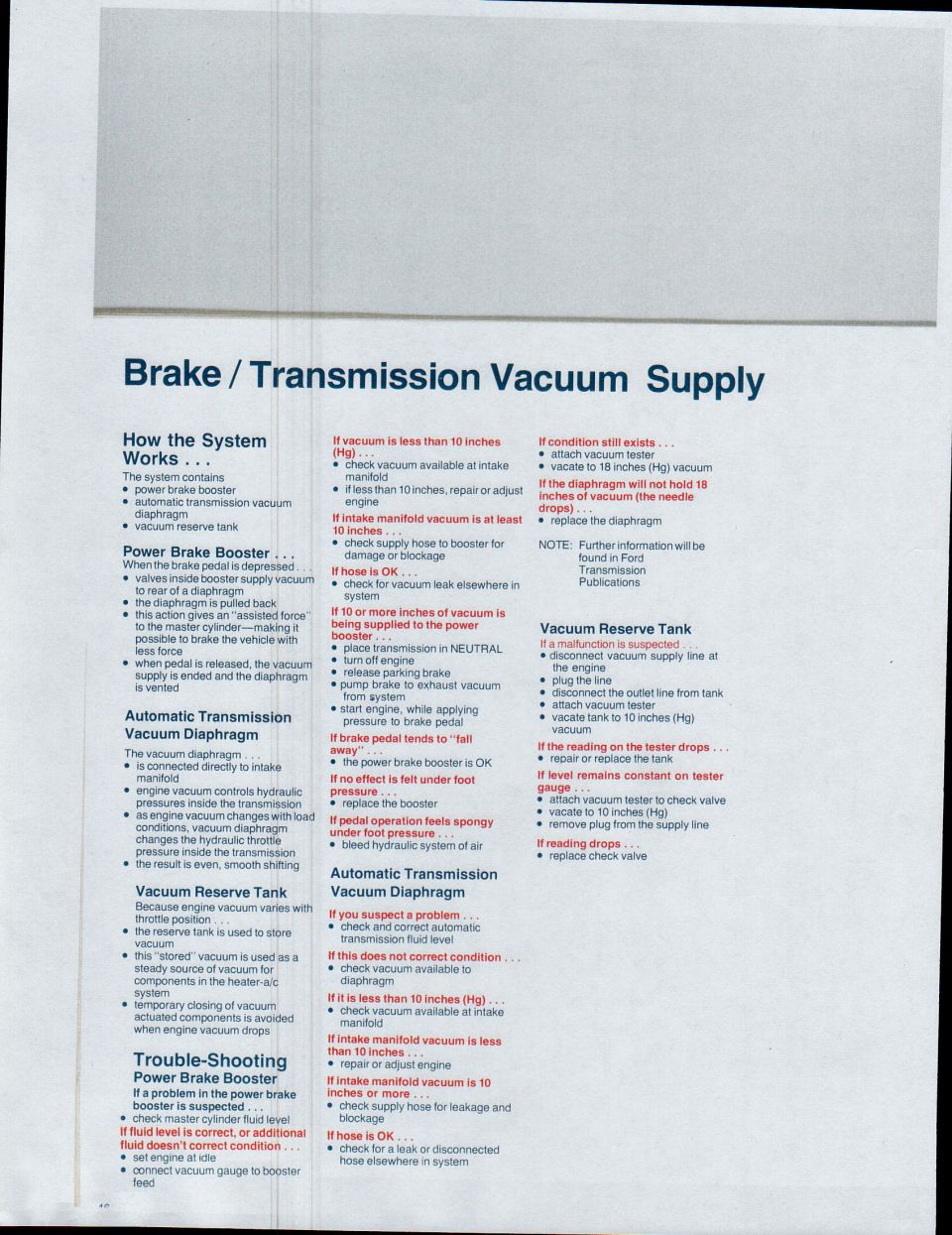

This is a document detailing the "Brake / Transmission Vacuum Supply" system, including how it works, troubleshooting for the power brake booster, automatic transmission vacuum diaphragm, and vacuum reserve tank.
