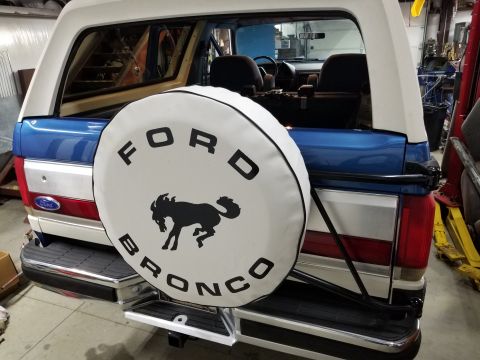

273 hits | 85.74 KB | Posted: 2/13/20
RHF corner

125 hits | 88.17 KB | Posted: 2/13/20
LHF corner

113 hits | 67.26 KB | Posted: 2/13/20
LHR corner

104 hits | 70.98 KB | Posted: 2/13/20
RHR corner

110 hits | 92.88 KB | Posted: 2/13/20
Front top

109 hits | 67.67 KB | Posted: 2/13/20
Left top

118 hits | 67.74 KB | Posted: 2/13/20
Rear top

103 hits | 65.26 KB | Posted: 2/13/20
LHR bumper is bent

102 hits | 59.18 KB | Posted: 2/13/20
LHF bumper trim is loose

109 hits | 89.15 KB | Posted: 2/13/20
Hood
Typical dry-rot of cowl seal.

104 hits | 109.54 KB | Posted: 2/13/20
Engine bay
Typical dry-rot of cowl seal.

107 hits | 106.66 KB | Posted: 2/13/20
Engine bay Right
Typical dry-rot of cowl seal.

[url=https://www.supermotors.net/registry/media/9479...

105 hits | 106.22 KB | Posted: 2/13/20
Engine bay Left

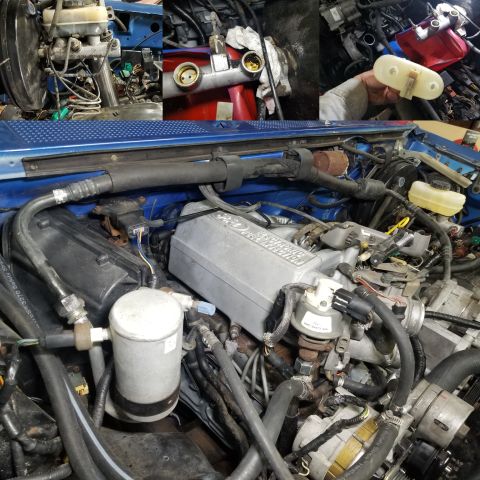

The dark brake fluid probably hasn't been changed in decades.
The air filter is K&N...

120 hits | 74.81 KB | Posted: 2/13/20
VECI label

[url=https://www.supermotors.net/registry/media/858380][img]https://www.supermotors.net/...

121 hits | 67.73 KB | Posted: 2/13/20
VC label

[url=https://www.supermotors.net/registry/media/72354][img]https://www.supermotors.net/get...

101 hits | 68.69 KB | Posted: 2/13/20
The exhaust manifolds look original, and I haven't found the exhaust leaks yet.

101 hits | 82.47 KB | Posted: 2/13/20
The engine wiring is in surprisingly-good condition, but it's still using the old Ford-style relays ...

98 hits | 86.1 KB | Posted: 2/13/20
The A/C appears to have been partially converted to R134a, and many of the coolant hoses have been r...

98 hits | 88.26 KB | Posted: 2/13/20
I've never seen insulation around the fuel lines, so I assume that's not factory. As with many truck...

85 hits | 90.91 KB | Posted: 2/13/20
Some of this is from battery acid - some is probably from rodents. But since there's a golf tee in t...

89 hits | 91.23 KB | Posted: 2/13/20
To prepare for pressure-washing, I pulled the fan, shroud, & belt.

98 hits | 95.26 KB | Posted: 2/13/20
I've never seen a battery cable made this way, but there is no frame ground now. The body ground is ...

91 hits | 92.41 KB | Posted: 2/13/20
The smog pump is gutted - it spins freely. The transmission cooler hose appears to have been replace...

93 hits | 96.15 KB | Posted: 2/13/20
The smog pump is gutted - it spins freely. The transmission cooler hose appears to have been replace...

92 hits | 89.57 KB | Posted: 2/13/20
The smog pump is gutted - it spins freely. The transmission cooler hose appears to have been replace...

93 hits | 84.85 KB | Posted: 2/13/20
There's a fluid leak from the return hose at the cooler, but not much from the pump itself. The shi...

118 hits | 84.26 KB | Posted: 2/13/20
The front bumper corner braces are intact, and the trim is original.

112 hits | 83.75 KB | Posted: 2/13/20
The original bumper mounts are in good shape, & the trim is original.

108 hits | 90.1 KB | Posted: 2/13/20
The frame & some of the suspension have been painted gloss black, without much prep or even cleaning...

84 hits | 76.66 KB | Posted: 2/13/20
The horn bracket is bent, but they don't seem to be working anyway. The body mounts are collapsing....

95 hits | 72.08 KB | Posted: 2/13/20

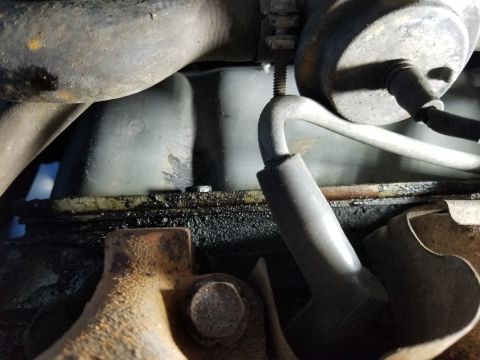

The valve cover gasket oil is streaming down the RHR corner of the block (Left in the pic) keeping a...

94 hits | 74.19 KB | Posted: 2/13/20

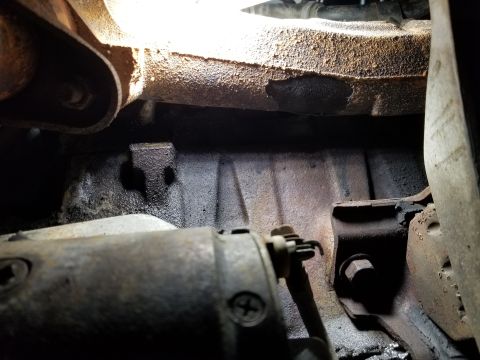

The VCG oil is streaming down the RHR corner of the block (Left in the pic) keeping a semi-clean tra...

96 hits | 88.65 KB | Posted: 2/13/20
Unlike most, this true-dual exhaust retained the factory oxygen sensor crossover. The starter is the...

89 hits | 68.34 KB | Posted: 2/13/20

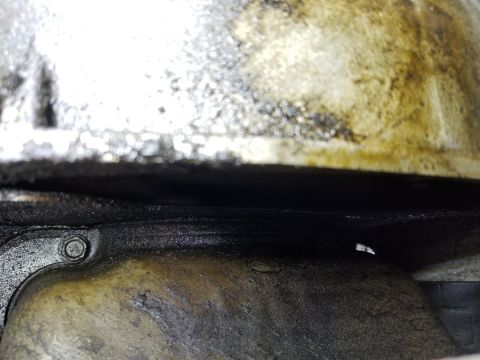

At first, I thought this was all coming down from the VCGs. But when it continued dripping for 3 day...

86 hits | 85.14 KB | Posted: 2/13/20

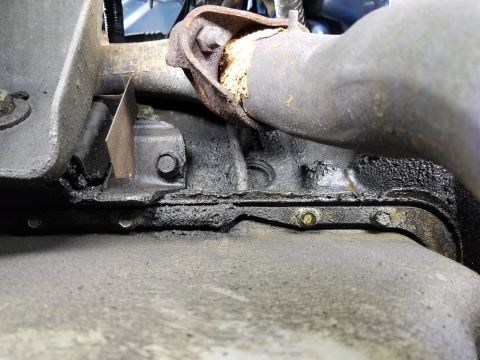

As usual, all the oil leaks collect along the pan lip. It's not apparent from this angle, but the en...

74 hits | 94.72 KB | Posted: 2/13/20

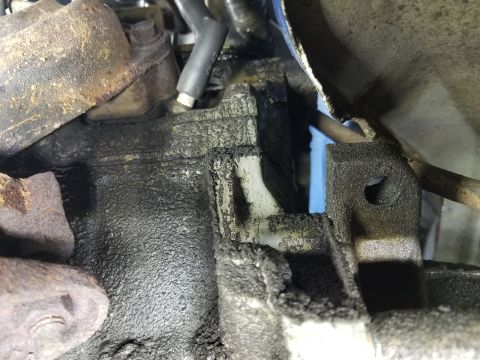

The clean spot on the block (LHR corner) is from oil flowing out of the valve cover gaskets.

89 hits | 70.25 KB | Posted: 2/13/20
The dual exhaust goes on both sides of the transmission crossmember, which will make for a LOT of ex...

86 hits | 62.11 KB | Posted: 2/13/20
The secondary air downstream pipe is tacked to the exhaust where it should be connected to the catal...

90 hits | 93.81 KB | Posted: 2/13/20
The clean spot on the block (LHR corner) is from oil flowing out of the valve cover gaskets.

83 hits | 87.47 KB | Posted: 2/13/20
Shifter equalizer, speedo cable, high-pressure fuel pump, and fuel filter (behind the heat shield). ...

86 hits | 98.88 KB | Posted: 2/13/20
C6 shift & kickdown levers. The PNP switch is behind them.

84 hits | 78.37 KB | Posted: 2/13/20
The BW1356 has some slop, and the dirt-daubers moved into all its pockets.

88 hits | 73.88 KB | Posted: 2/13/20
The frame & some of the suspension have been painted gloss black, but the body wasn't cleaned.

94 hits | 79.6 KB | Posted: 2/13/20
There are 2 added leaves for the lift. The true-dual exhaust seems better than most, and has lots of...

86 hits | 90.24 KB | Posted: 2/13/20

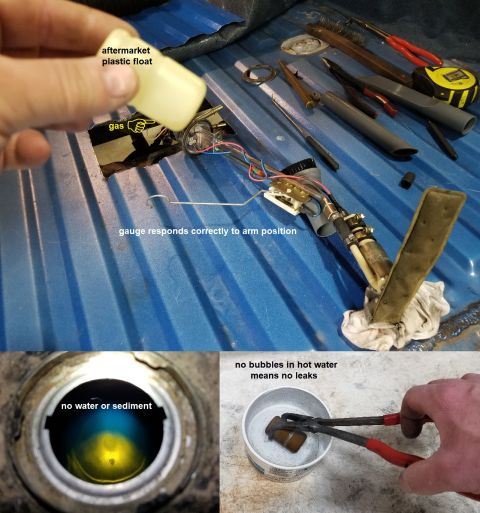

I can't tell yet why the fuel tank wiring is hacked, but the gauge doesn't seem to work. It looks li...

79 hits | 73.91 KB | Posted: 2/13/20

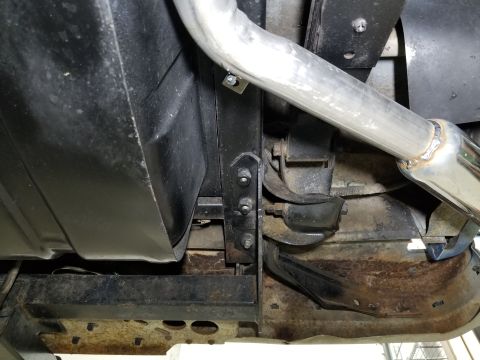

The LHR bumper was hit hard enough to bend the skin AND the brace. But both can probably be straigh...

88 hits | 105.13 KB | Posted: 2/13/20

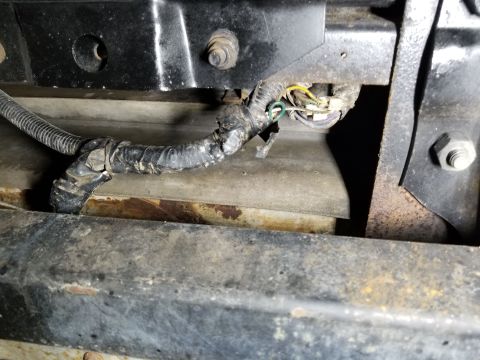

The 4-pin wiring has been Scotch-Locked to the 7-pin.

92 hits | 85.1 KB | Posted: 2/13/20

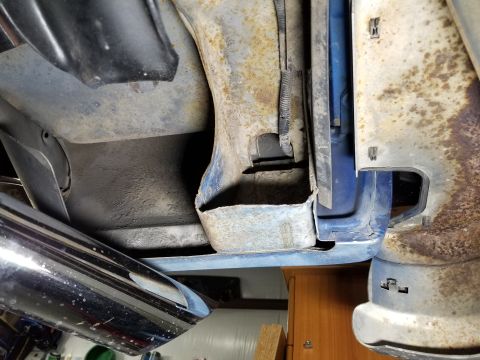

Typical mud in the quarter panels, and the bumper tip is tweaked.

88 hits | 71.95 KB | Posted: 2/13/20

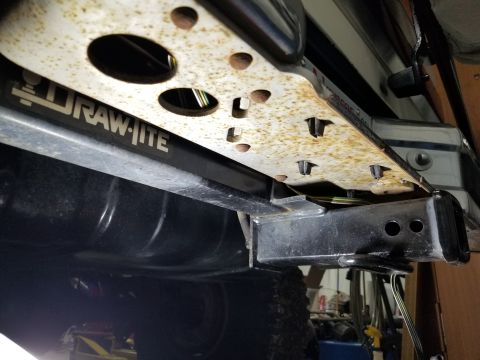

This is probably the best receiver because it tucks so high against the bumper, and it seems to be i...

86 hits | 66.53 KB | Posted: 2/13/20

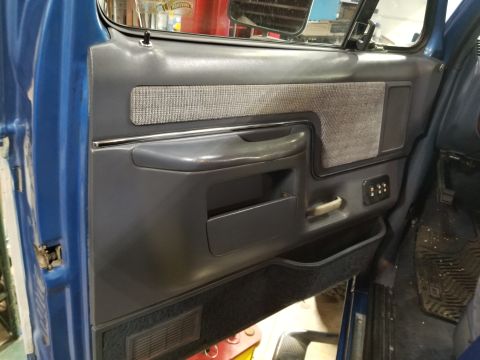

The panels & armrests are in very good condition (except that big washer at the top front), and the ...

93 hits | 96.13 KB | Posted: 2/13/20

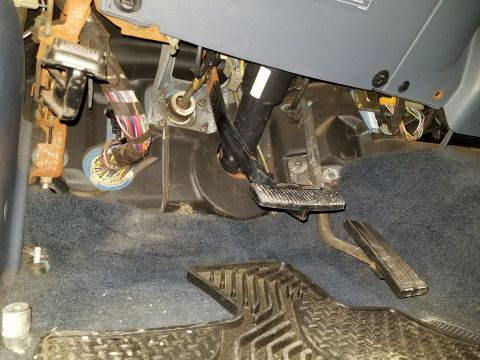

For such an old truck that has obviously been wheeled, the underdash is surprisingly clean & origina...

90 hits | 77.86 KB | Posted: 2/13/20

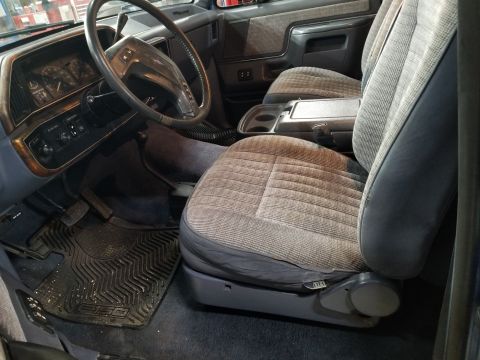

The front carpet looks original. The dash & column are in good condition, but I don't understand the...

81 hits | 47.79 KB | Posted: 2/13/20

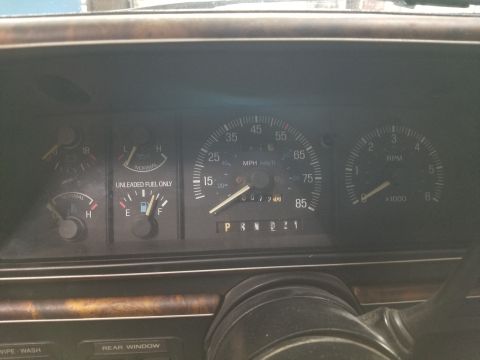

I assume the truck has 210Kmi.

[url=https://www.supermotors.net/registry/media/723858][img]https://...

85 hits | 60.28 KB | Posted: 2/13/20

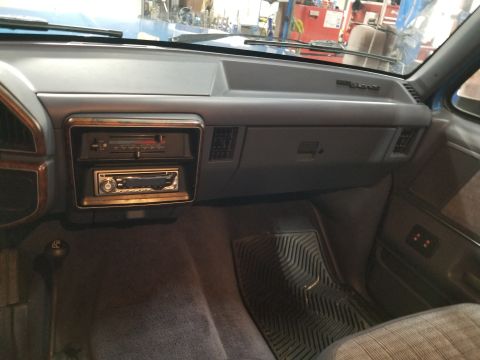

The front carpet looks original. The dash is in good condition.

[url=https://www.supermotors.net/re...

87 hits | 97.08 KB | Posted: 2/13/20

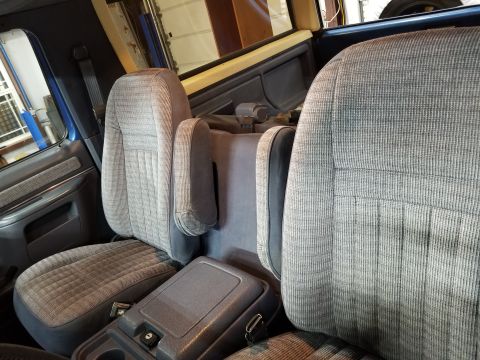

The upholstery is in very good condition, and looks original.

95 hits | 45.62 KB | Posted: 2/13/20

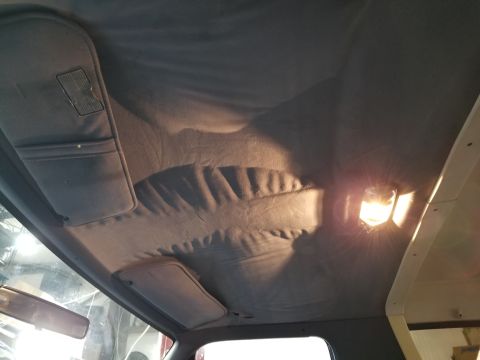

Typical droopy headliner.

83 hits | 66.4 KB | Posted: 2/13/20

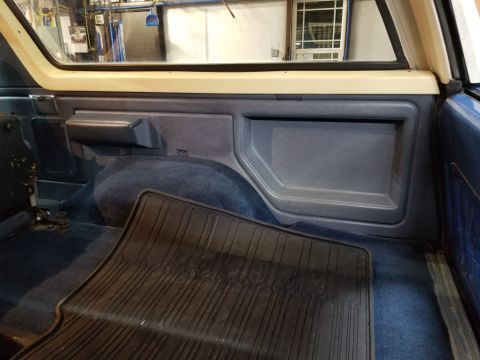

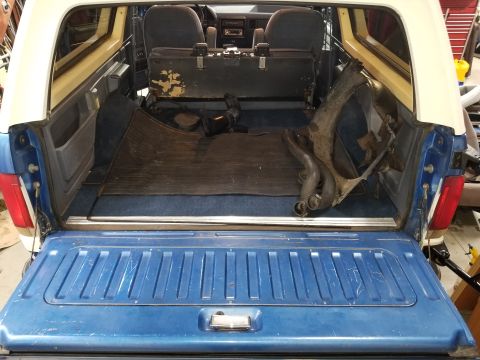

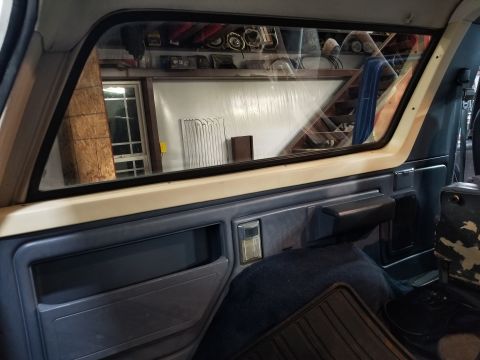

The cargo carpet is replacement, but made fairly well. It was cut instead of being installed under t...

86 hits | 66.64 KB | Posted: 2/13/20
The cargo carpet is replacement, but made fairly well. It was cut instead of being installed under t...

90 hits | 83.62 KB | Posted: 2/13/20
The cargo carpet is replacement, but made fairly well. It was cut instead of being installed under ...

80 hits | 83.7 KB | Posted: 2/13/20

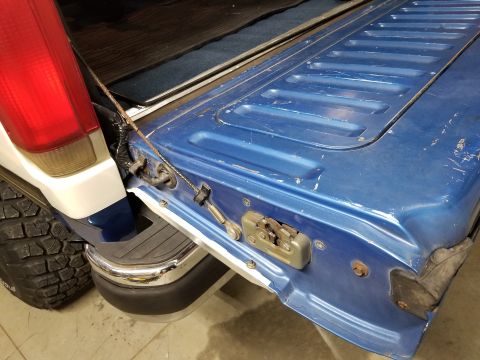

Typically rusty t/g cables, and taped-up wiring.

90 hits | 89.64 KB | Posted: 2/13/20

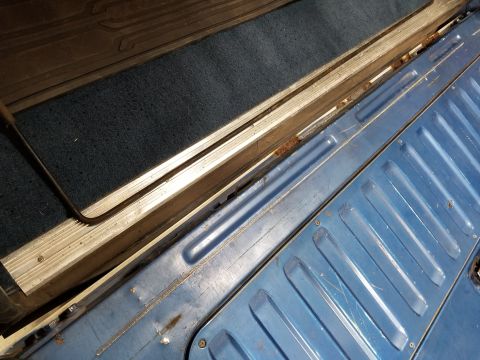

Typical rust at the bottom of the t/g, plus a hole in the access panel.

89 hits | 79.63 KB | Posted: 2/13/20

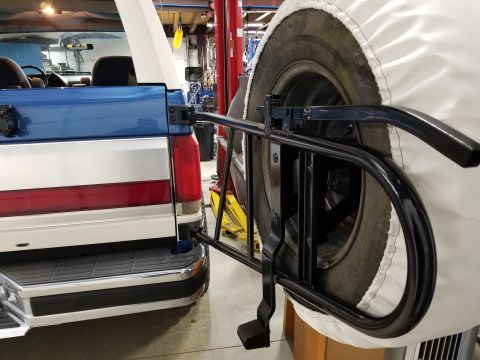

The spare tire is 12 years old, and undersized. The other 4 (35x12.50R15) are 7 years old.

92 hits | 80.57 KB | Posted: 2/13/20

87 hits | 48.03 KB | Posted: 2/13/20

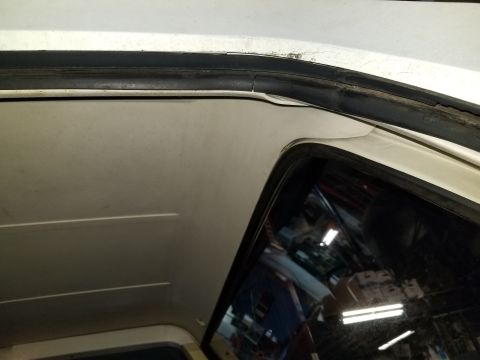

The upper t/g glass run has the typical dry-rot cracks at the seams.

https://www.amazon.com/dp/B01D...

91 hits | 86.44 KB | Posted: 2/13/20

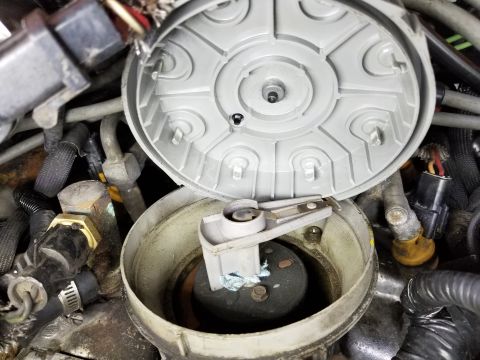

The rotor is shimmed with blue paper towel; probably because of timing chain slack.

This is a few m...

163 hits | 120.54 KB | Posted: 2/13/20

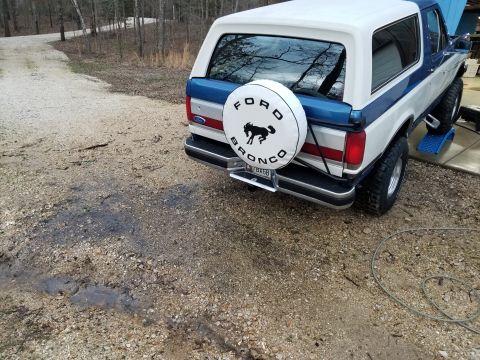

Most of the black grime on the white gravel came from this truck. And after it dried and I got back...

107 hits | 88.47 KB | Posted: 2/13/20

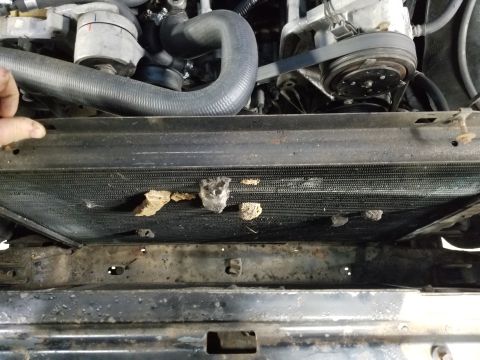

The radiator upper mounts are broken off, and when I cut the baling wire holding it up, I found more...

134 hits | 81.61 KB | Posted: 2/13/20

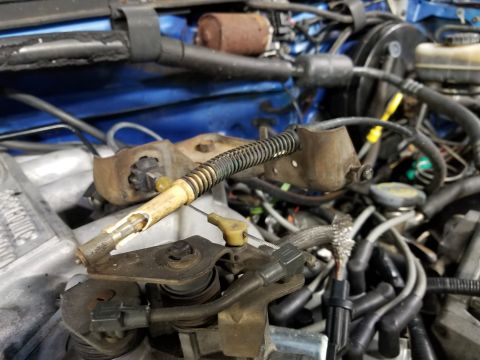

When I unclipped the cruise cable, the throttle cable end shattered.

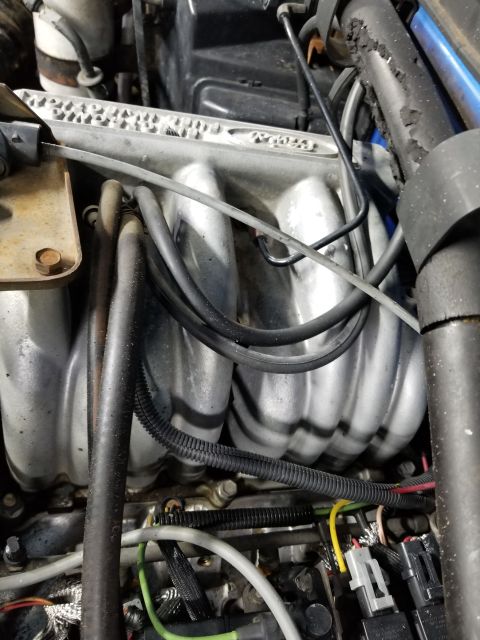

[url=https://www.supermotors.n...

103 hits | 110.7 KB | Posted: 2/13/20
[url=https://www.supermotors.net/registry/media/1151310][img]https://www.supermotors.net/getfile/115...

115 hits | 91.68 KB | Posted: 2/13/20

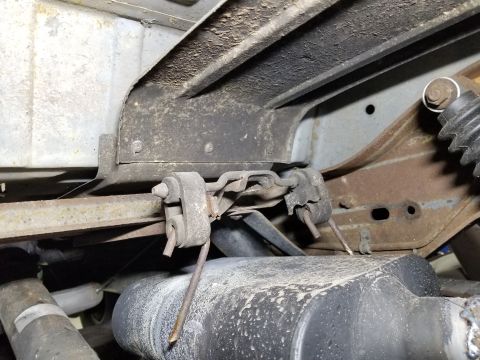

The original muffler hangers were left beating against the new muffler, which is probably producing ...

124 hits | 82.71 KB | Posted: 2/13/20

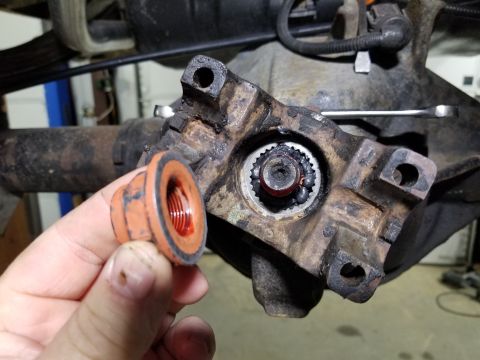

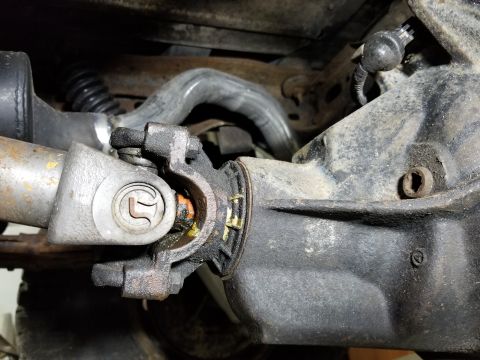

Part of the driveline clunk is the loose pinion nut. All the U-joints seem to be tight. But there's...

115 hits | 96.72 KB | Posted: 2/13/20

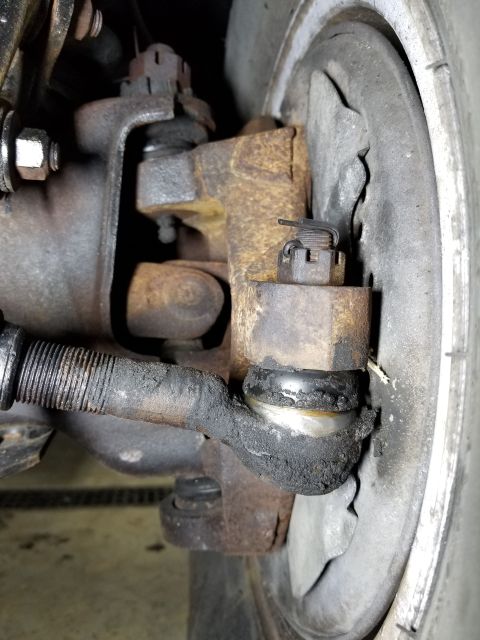

There is no detectable wear in the tie rods, but the Left ball joints are VERY loose. The Right BJs...

107 hits | 67.66 KB | Posted: 2/13/20

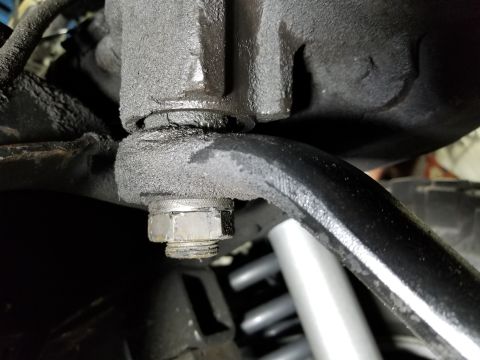

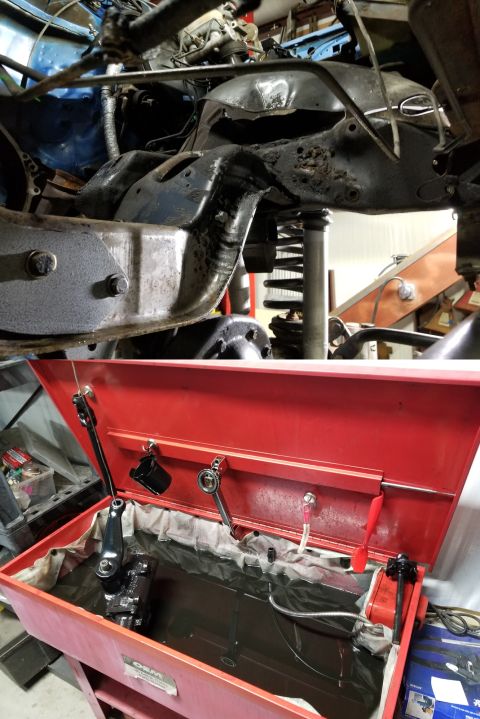

The pitman arm nut was so loose that the arm was moving on the splines. Note that the top 3 threads ...

110 hits | 88.43 KB | Posted: 2/13/20

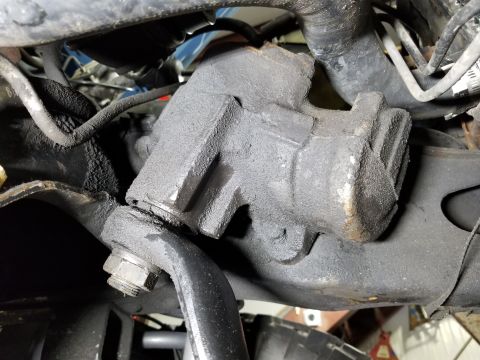

After tightening the pitman arm, it was apparent that the box has a lot of slop. Probably 75% of th...

121 hits | 78.63 KB | Posted: 2/13/20

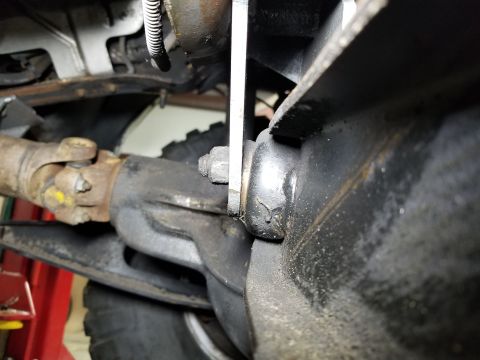

The Right axle pivot bushing is damaged & loose. The bolt is visibly off-center of the bushing. The...

108 hits | 63.09 KB | Posted: 2/13/20

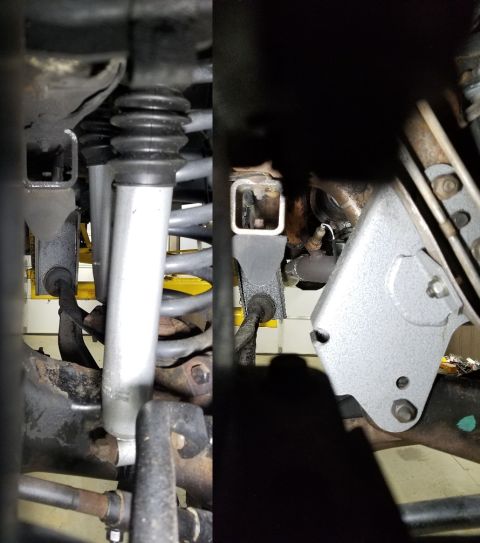

The Left radius arm drop bracket appears OK, but the Right has a noticeable angle, indicating the fr...

158 hits | 98.71 KB | Posted: 2/13/20

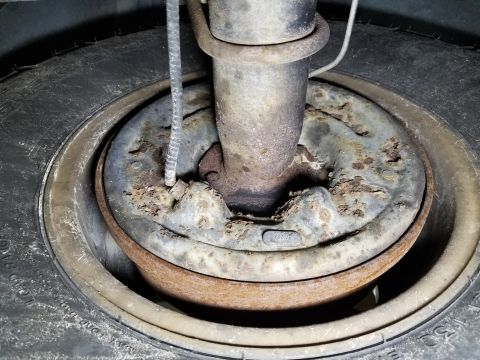

The right e-brake cable is folded at the brake backing plate.

Right brake cable Wagner BC132090

233 hits | 68.61 KB | Posted: 2/18/20

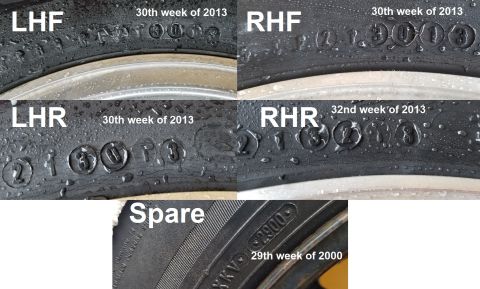

Tire Dates

[url=https://www.supermotors.net/registry/media/76046][img]https://www.supermotors.net...

128 hits | 57.3 KB | Posted: 2/24/20

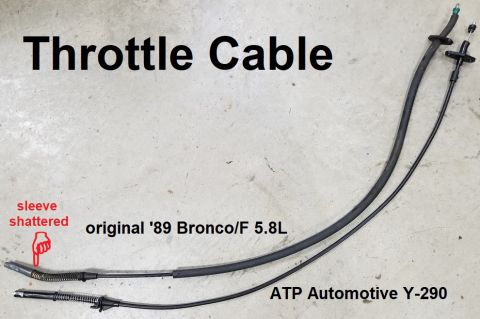

The new throttle cable matches

136 hits | 64.03 KB | Posted: 2/24/20

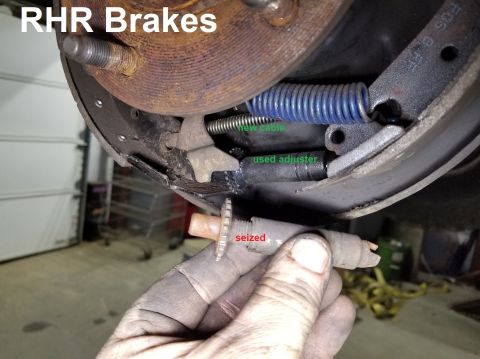

While replacing the RHR brake cable, I found the autoadjuster seized, so I swapped it for a used one...

97 hits | 97.27 KB | Posted: 3/7/20

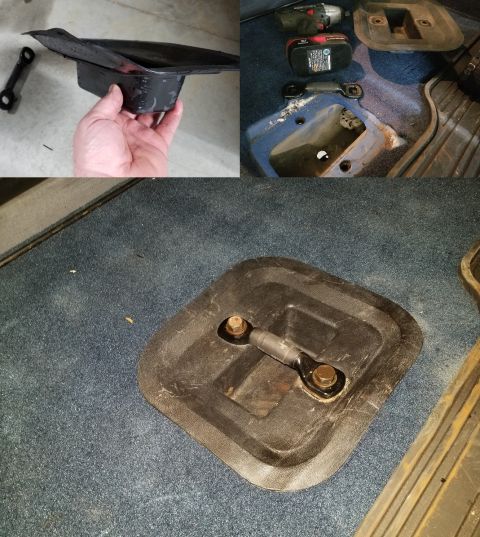

While changing the rear seat strike bar, I also straightened its cup, and removed ANOTHER dirt-daube...

152 hits | 73.13 KB | Posted: 2/25/20

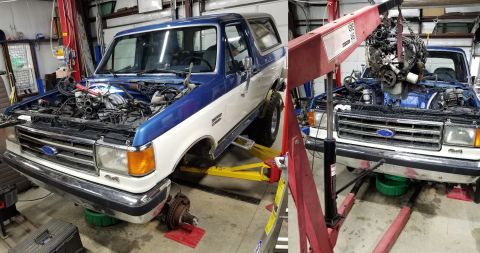

Engine out

119 hits | 68.68 KB | Posted: 3/2/20

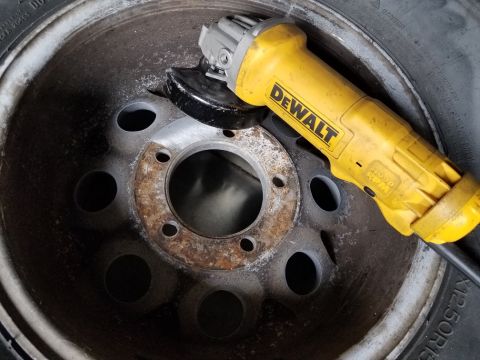

As Ford & most other makers recommend, I always clean the wheel mounting surfaces.

126 hits | 106.65 KB | Posted: 2/25/20

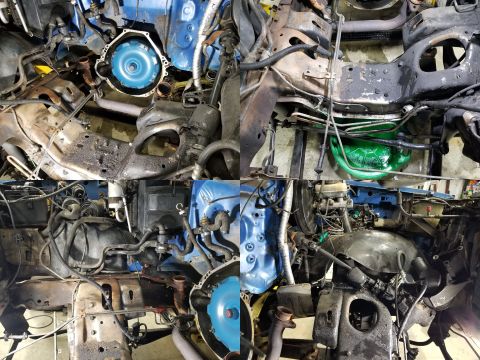

You wouldn't think I had already spent 2 hours washing this truck, but the few clean spots give it a...

158 hits | 100.58 KB | Posted: 2/25/20

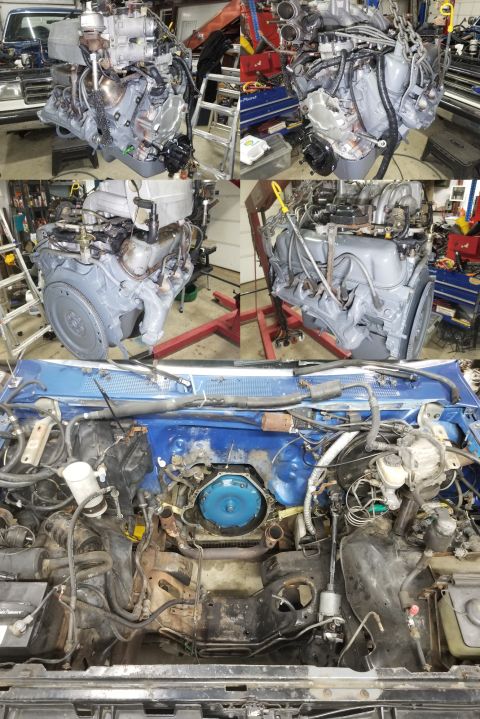

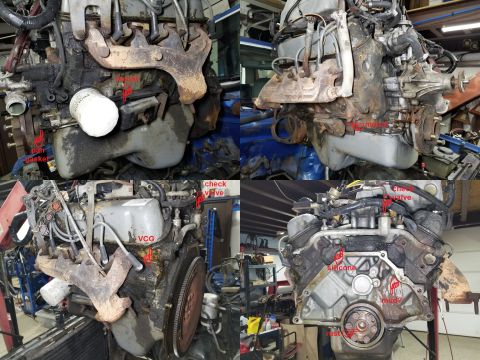

We already knew the engine mounts were broken, and that the pan gasket needed replacement, and that ...

114 hits | 69.76 KB | Posted: 2/25/20

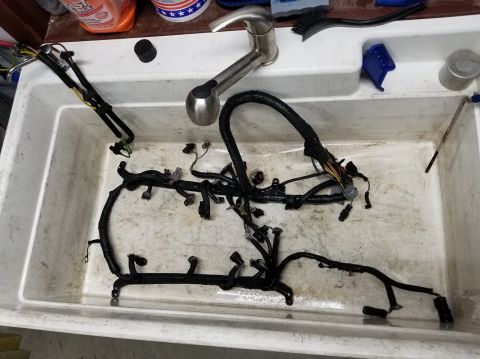

I hand-washed the engine wiring & vacuum harnesses, rather than risk shredding them with the pressur...

172 hits | 97.84 KB | Posted: 2/26/20

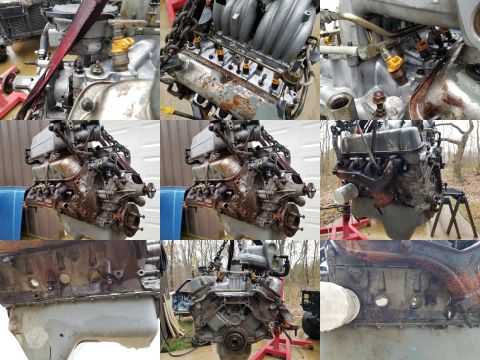

It came cleaner than I expected, but it took about 2 hours in 40-degree wind. The pressure washer we...

104 hits | 76.19 KB | Posted: 2/26/20

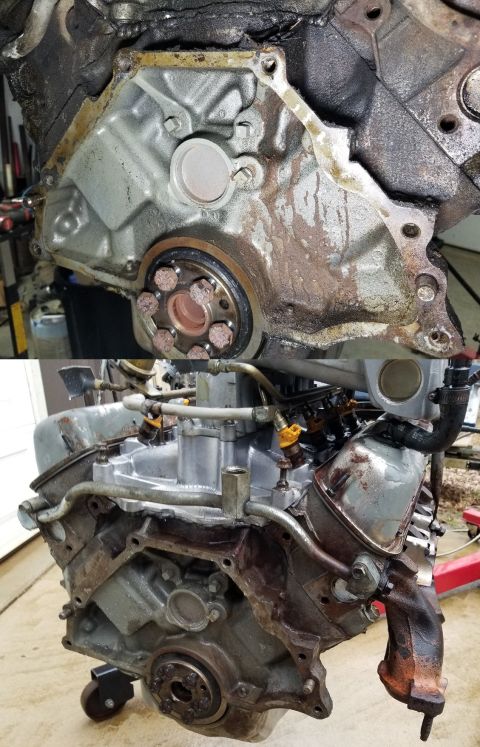

Before & after.

99 hits | 68.43 KB | Posted: 2/26/20

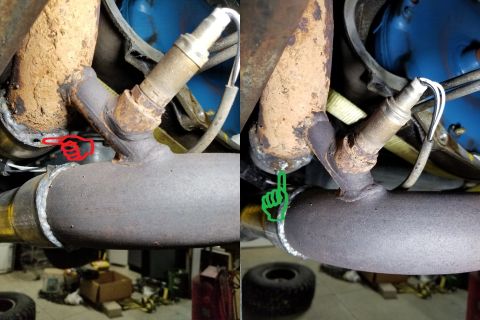

This leak was easy to see & fill.

102 hits | 48.04 KB | Posted: 2/26/20

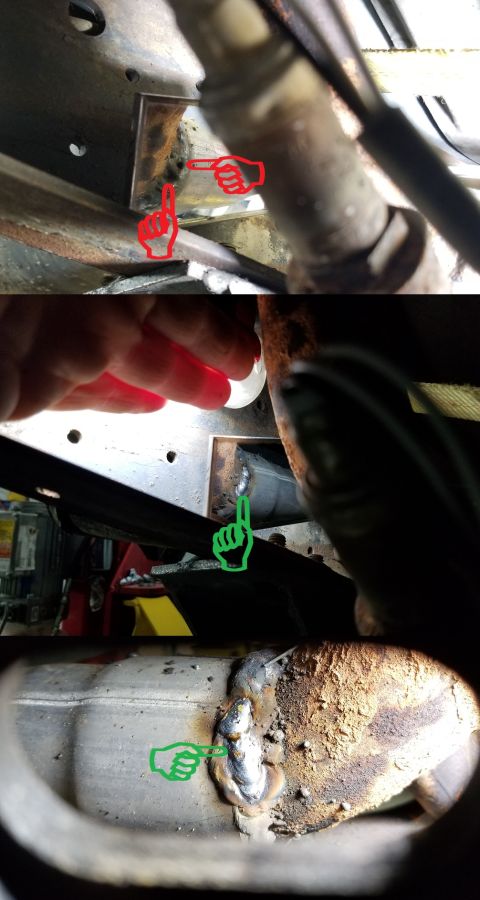

These 2 leaks were only visible with a mirror. I had to weld them through the slot in the frame.

155 hits | 73.07 KB | Posted: 2/27/20

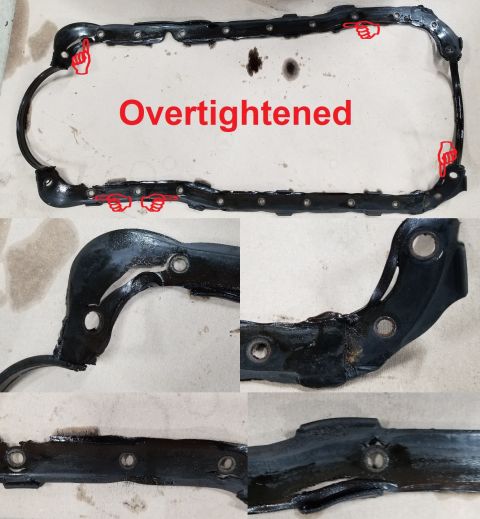

Nuff sed.

[url=https://www.supermotors.net/registry/media/1157596][img]https://www.supermotors.net/...

123 hits | 72.6 KB | Posted: 2/27/20

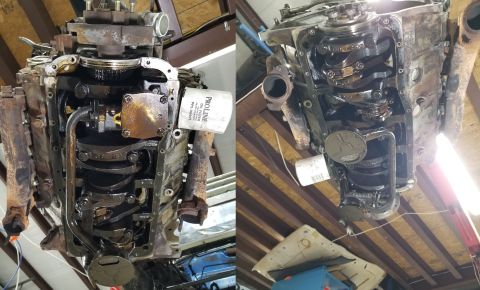

Upskirt porn

479 hits | 87.19 KB | Posted: 2/27/20

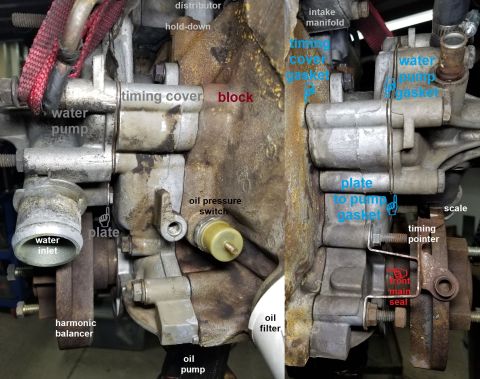

Timing cover gasket details

It looks in such good condition, I don't really want to change it. But ...

132 hits | 81.62 KB | Posted: 2/27/20

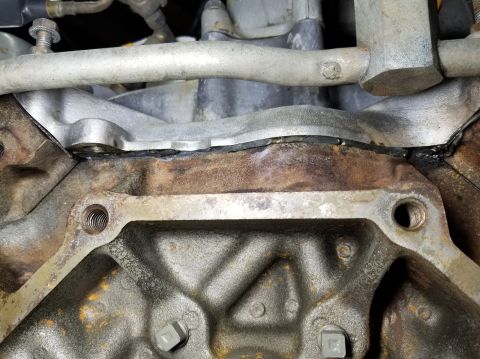

I trimmed the overhanging silicone from the back of the valley.

150 hits | 45.77 KB | Posted: 2/27/20

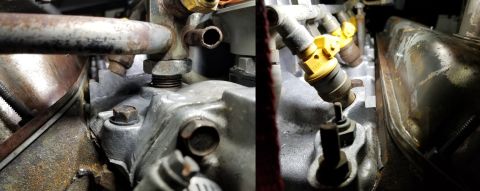

Intake manifold gasket details

126 hits | 46.67 KB | Posted: 2/27/20

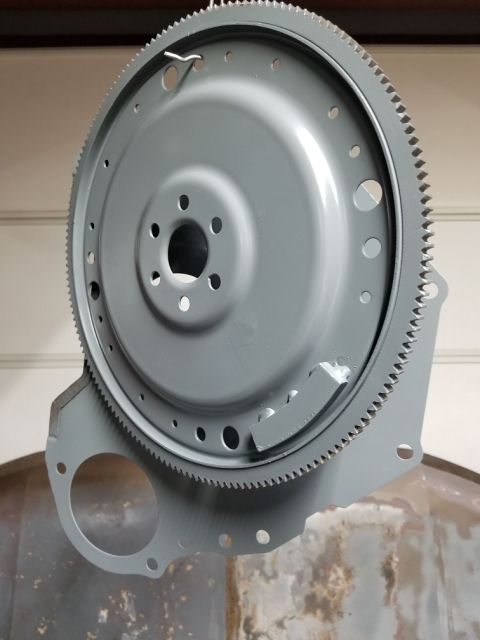

Flexplate & shim plate painted.

[url=https://www.supermotors.net/registry/media/1157598][img]https:...

127 hits | 63.9 KB | Posted: 2/27/20

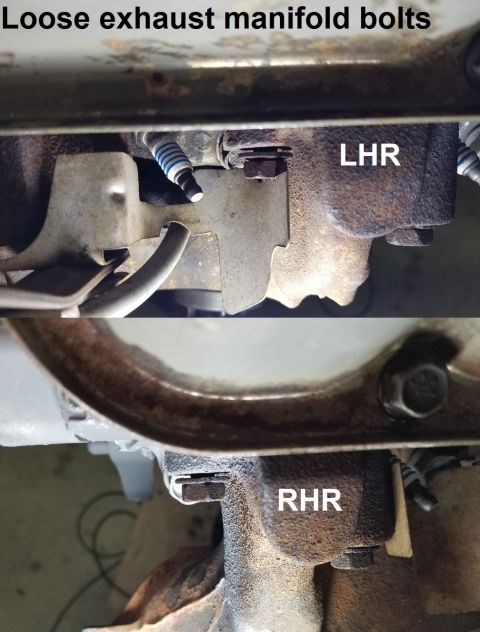

I tightened two exhaust manifold bolts that were very loose; a few others, slightly. Since I didn't ...

163 hits | 61.16 KB | Posted: 2/27/20

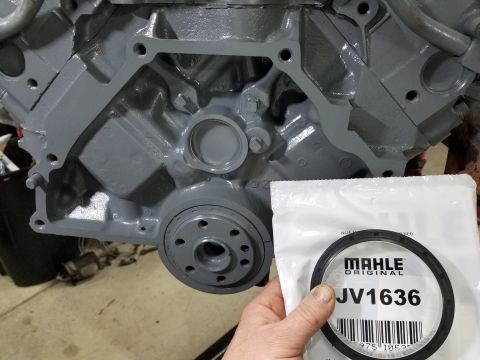

After painting the back end of the block, I changed the rear main seal.

[url=https://www.supermotor...

555 hits | 80.16 KB | Posted: 2/29/20

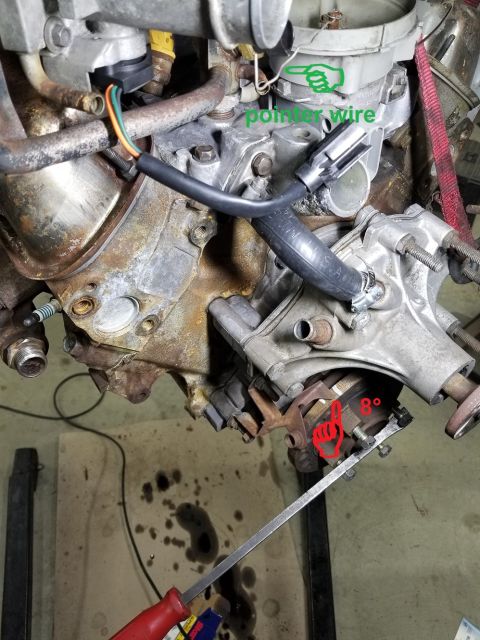

I turned the crank forward to 0 degrees, set a pointer wire on the distributor shaft, then turned th...

144 hits | 78.59 KB | Posted: 3/2/20

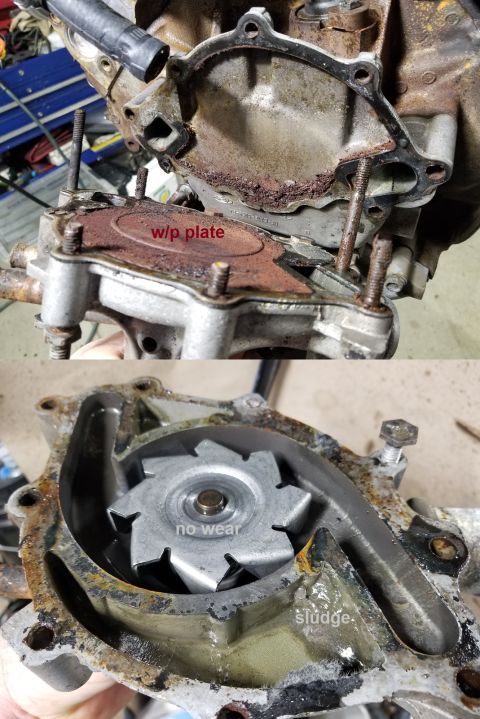

The water pump itself looks much better than I expected. But its backing plate is the worst I've ev...

290 hits | 95.94 KB | Posted: 3/2/20

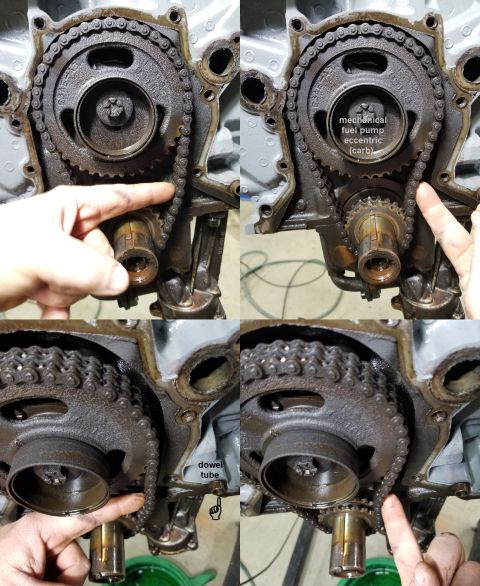

This is 8 degrees of slack. I assume this is why someone thought the distributor rotor needed a pape...

141 hits | 80.25 KB | Posted: 3/2/20

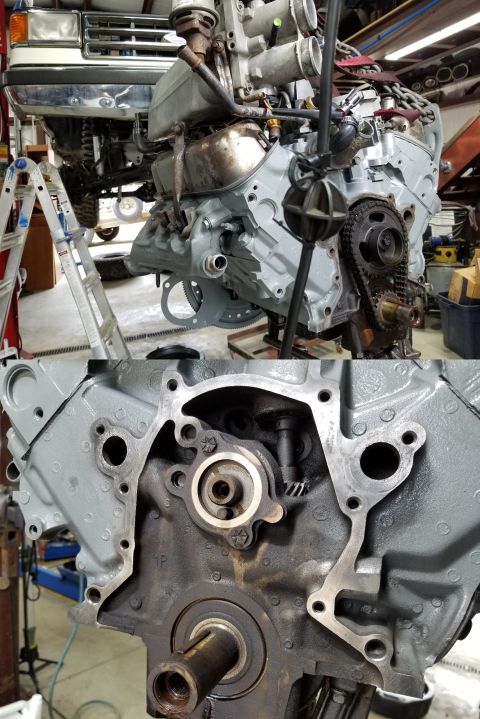

Just before removing the timing cover, I painted the block. After removing the timing cover gasket &...

125 hits | 60.53 KB | Posted: 3/2/20

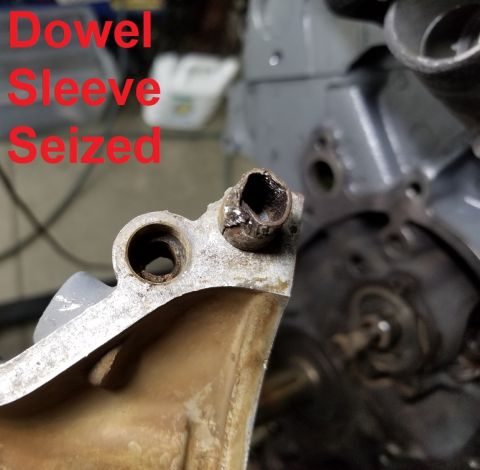

The only supplier for a replacement dowel I've found so far is:
https://lmr.com/item/388192SK/1979-9...

149 hits | 90.96 KB | Posted: 3/2/20

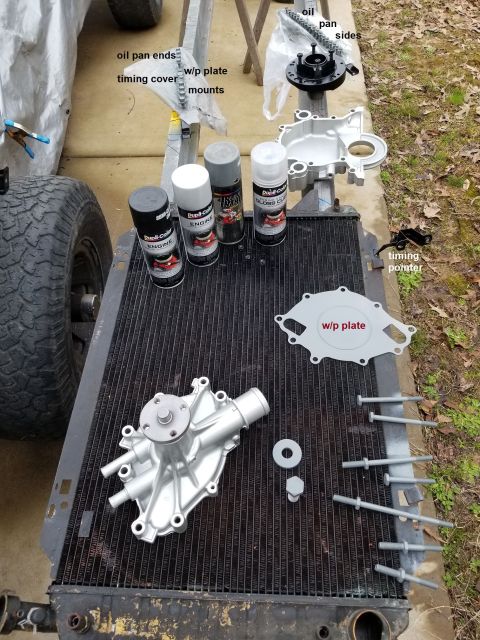

After a lot of parts-washing & sandblasting, I painted all the timing cover parts.

151 hits | 54.96 KB | Posted: 3/6/20

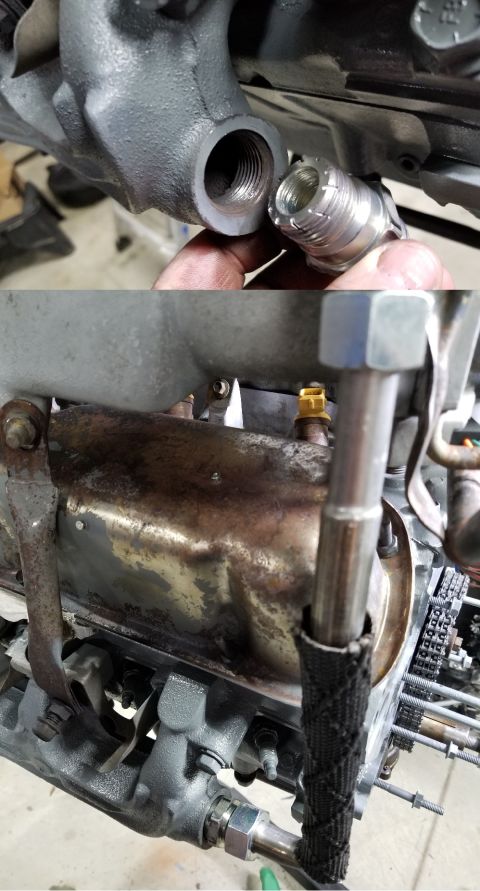

The EGR fitting was too rusty to reuse, and its threads stripped when I removed it from the manifold...

420 hits | 97.96 KB | Posted: 3/6/20

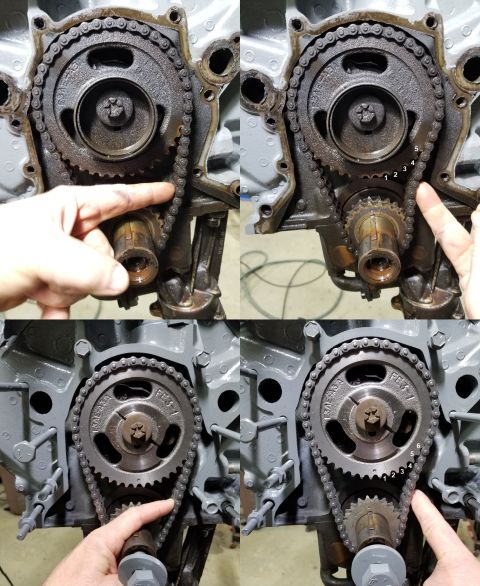

The gears are in exactly the same position, with all the slack on the driver's side, so the addition...

342 hits | 88.68 KB | Posted: 3/6/20

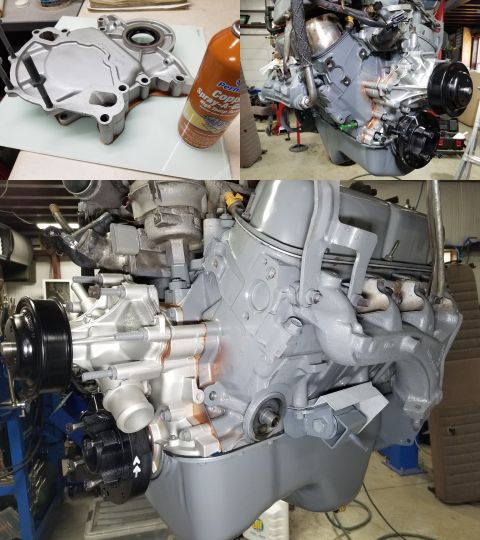

After Copper-Coating the new timing cover gasket on, I installed it (with a used dowel tube) & the o...

647 hits | 81.99 KB | Posted: 3/6/20

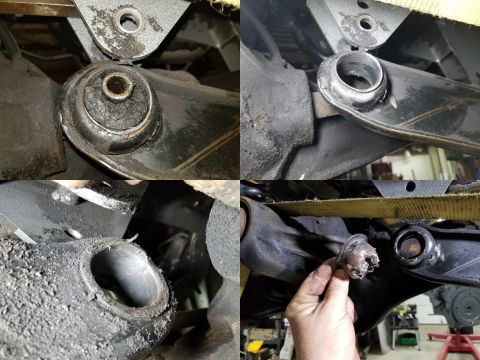

The Left pivot bushing (for the Right axle beam) was powdered. The other one was in better condition...

340 hits | 67.22 KB | Posted: 3/7/20

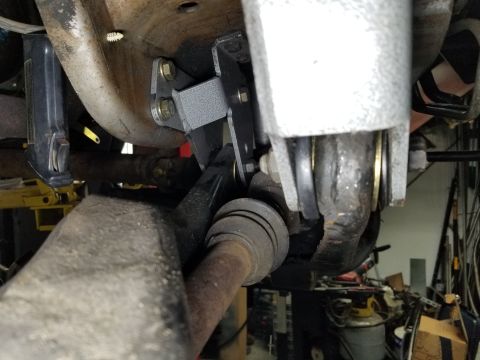

Poly axle pivot bushings are pressed in.

240 hits | 67.83 KB | Posted: 3/7/20

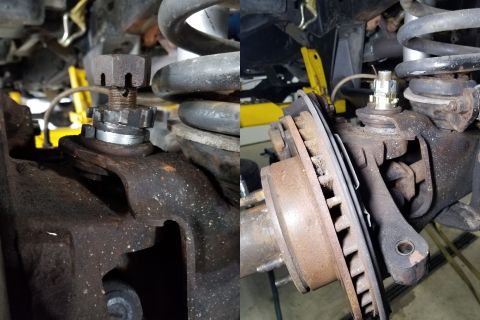

Right camber cam in
IF THE IMAGE IS TOO SMALL, click it.

139 hits | 102.96 KB | Posted: 3/7/20

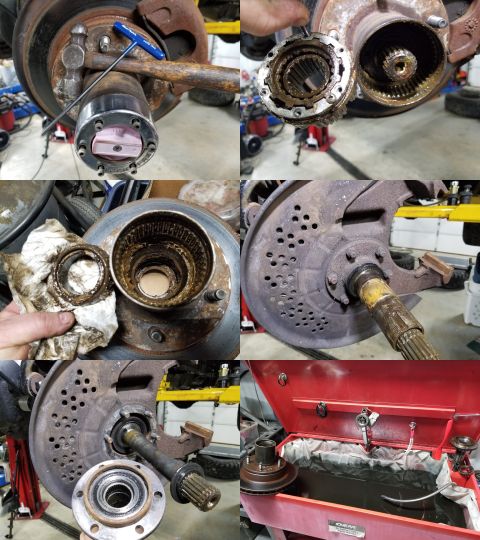

All 6 cap screws were seized, but the internals weren't as bad as I expected. It looks like the wron...

340 hits | 87.1 KB | Posted: 3/7/20

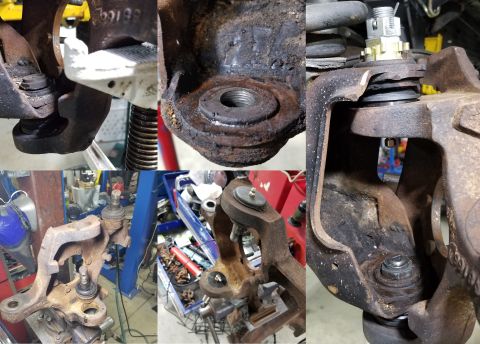

The Right lower ball joint nut wasn't tight; not even finger-tight. And although it had been wallowi...

134 hits | 72.33 KB | Posted: 3/7/20
All the steering parts went into the washer because they were too nasty to handle. The pitman arm ha...

123 hits | 55.2 KB | Posted: 3/8/20

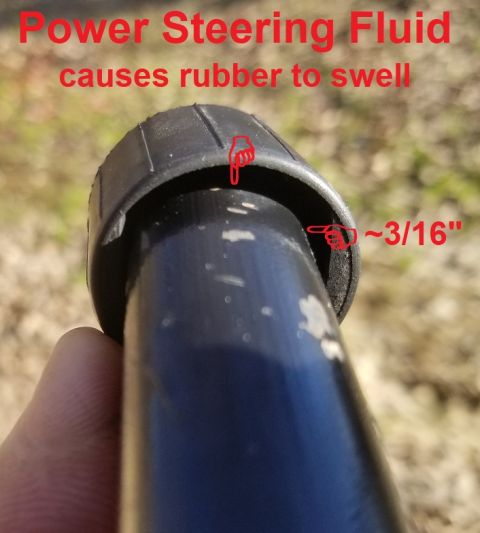

This telescope seal for the intermediate steering shaft shows why common PSF is the wrong fluid for ...

148 hits | 88.56 KB | Posted: 3/8/20

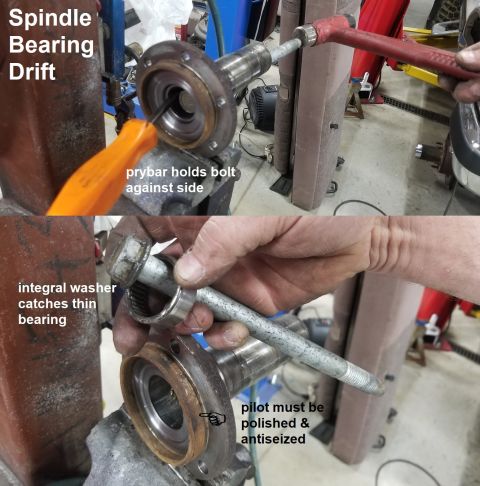

Driving out the spindle bearing is always a PITA, but this improvised drift made it much easier. Bet...

274 hits | 86.99 KB | Posted: 3/9/20

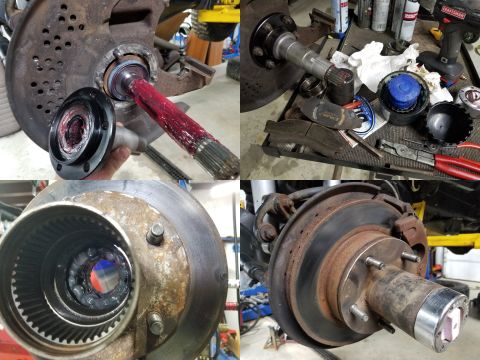

I had to refill my grease gun, but the hub & spindle are as full as possible to keep water out, and ...

184 hits | 93.23 KB | Posted: 3/8/20
The engine & bay are almost ready for each other. The steering box has been replaced, and the (clea...

117 hits | 55.63 KB | Posted: 3/12/20

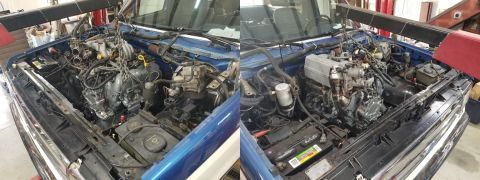

I set the engine back into the bay.

184 hits | 74.43 KB | Posted: 3/13/20

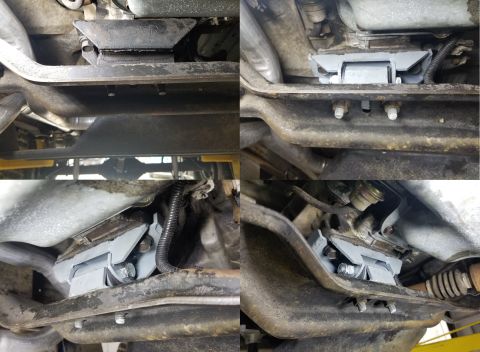

I had a lot of trouble making the bellhousing mate up to the block, until I found out why. Someone t...

134 hits | 84.43 KB | Posted: 3/13/20

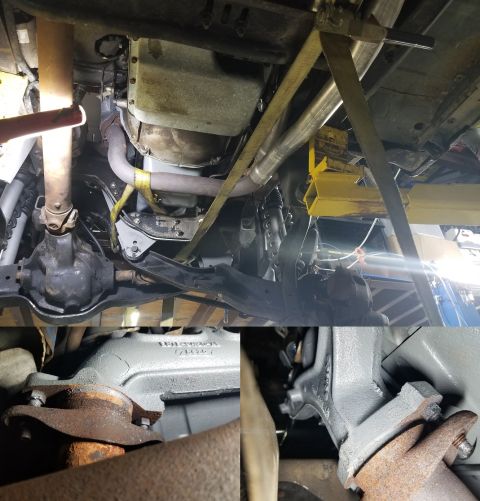

The exhaust was built while the engine mounts were broken, and the trans mount wasn't neutralized. A...

133 hits | 108.07 KB | Posted: 3/13/20

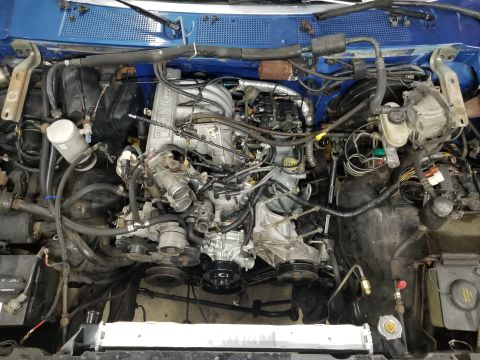

It's going back together...
IF THE IMAGE IS TOO SMALL, click it.

116 hits | 89.48 KB | Posted: 3/15/20

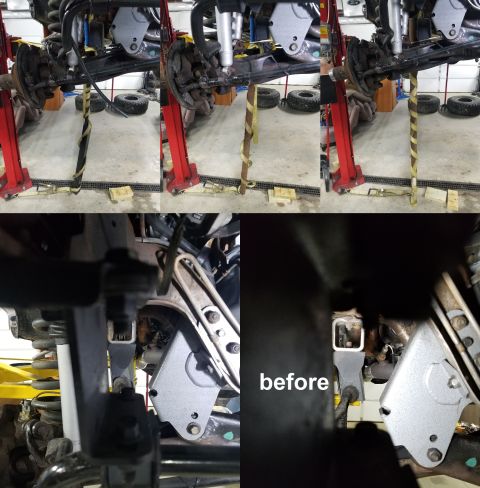

I spent a lot more time than I expected because it took 3 tries to get the setup right. But the fram...

111 hits | 96.29 KB | Posted: 3/15/20

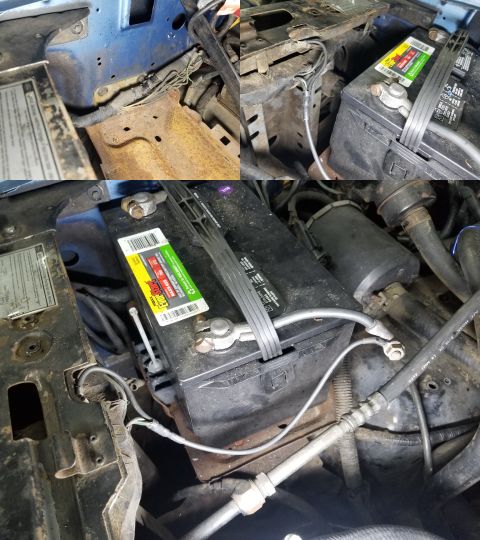

Turns out the battery hold-down had been replaced with a threaded rod with the wrong thread pitch, s...

233 hits | 112.09 KB | Posted: 3/15/20
I thought the master cylinder reservoir was dark at the bottom because of the shadow of the dark flu...

140 hits | 80.82 KB | Posted: 3/15/20

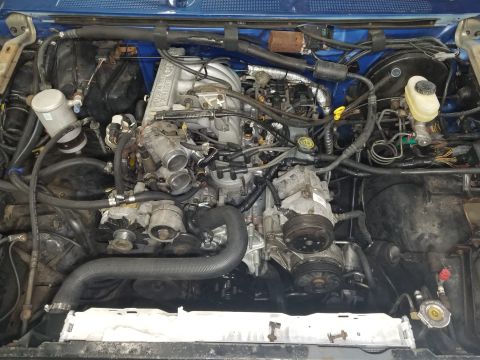

I still have to run the silicone vacuum lines; mount the charcoal canister, and install the plastic ...

894 hits | 83.84 KB | Posted: 3/17/20

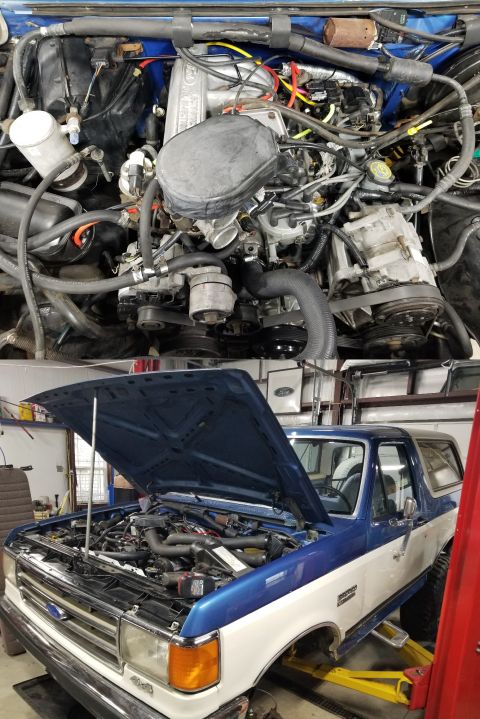

After running the silicone vacuum lines, the hood went back on.
IF THE IMAGE IS TOO SMALL, click it.

527 hits | 53.92 KB | Posted: 3/18/20

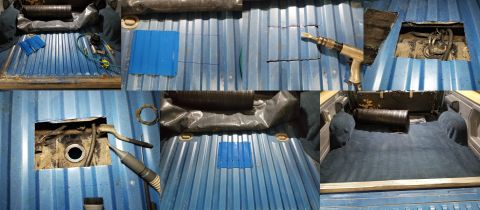

The fuel pump access panel went in uneventfully (other than a bloody knuckle).

157 hits | 86.23 KB | Posted: 3/18/20
The fuel gauge works - it was just a sunk float. I tested a brass one before installing it, and the ...

216 hits | 71.06 KB | Posted: 3/18/20

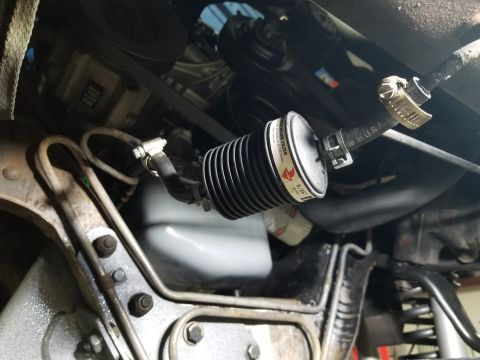

Transmission filter & hose.

136 hits | 73.21 KB | Posted: 3/18/20
Pinion nut is sealed & threadlocked at the correct preload (~9 in-lbs).

121 hits | 55.31 KB | Posted: 3/18/20

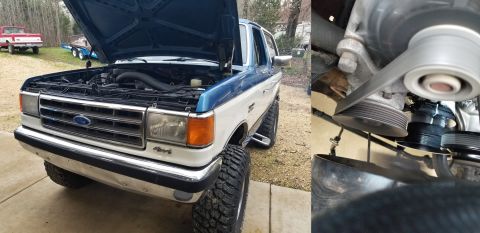

After warming up the engine, I checked timing - it was around 13 degrees, so I reset it to the 10 ma...

124 hits | 67.9 KB | Posted: 3/18/20

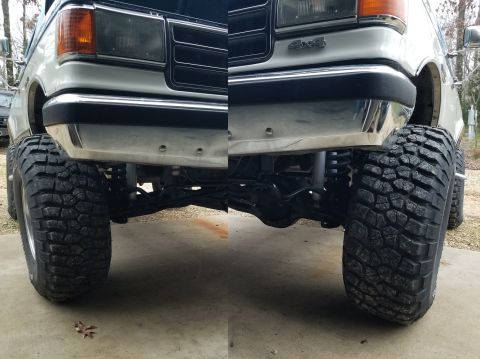

I'm not sure this can be aligned - it looks like the front springs are too tall.

130 hits | 59.43 KB | Posted: 3/19/20

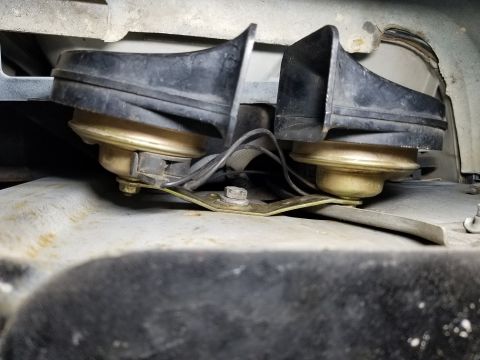

These FIAMM horns probably came from my '94 CV.
