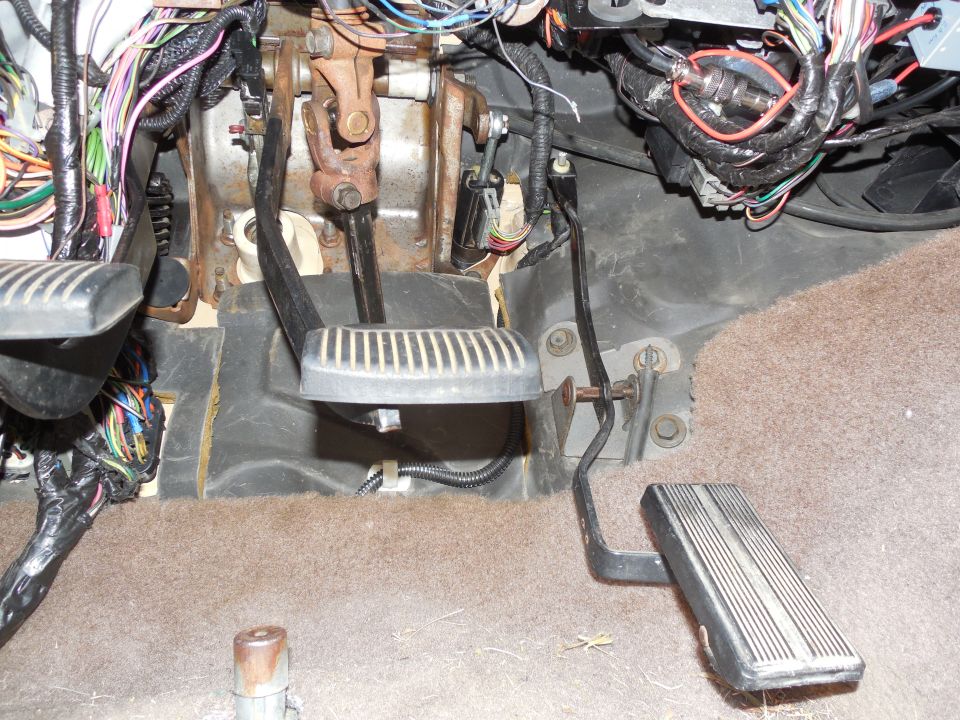

Vehicle footwell with pedals, pedal linkage, brown carpet and ex…

I could tell an immediate difference in the clutch pedal feel, and it seems to work better, too.



Torque Specs:
Clutch Master Cylinder Nuts (13mm) 10-14 Nm; 7-10 lb-ft; 89-124 lb-in
Brake Pedal and Bracket Assembly to "Y" Brace Bolts (10mm heads; M8-1.25 x 16) 21-29 Nm; 15-21 lb-ft
Bleed Screw 3-5 Nm; 27-44 lb-in
Clutch Pivot Shaft Nut (18mm) 68-92 Nm; 50-68 lb-ft

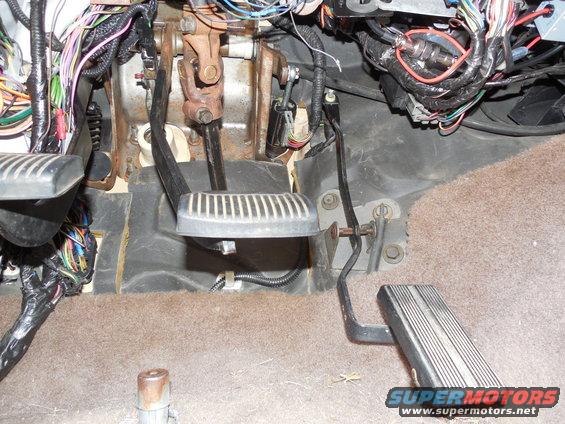

The wire snaking down the firewall in front of the brake pedal goes to the stomp switch in the foreground, which disables the clutch switch for in-gear cranking.

Owner caption October 2014 · Photo 5296 of 6546
