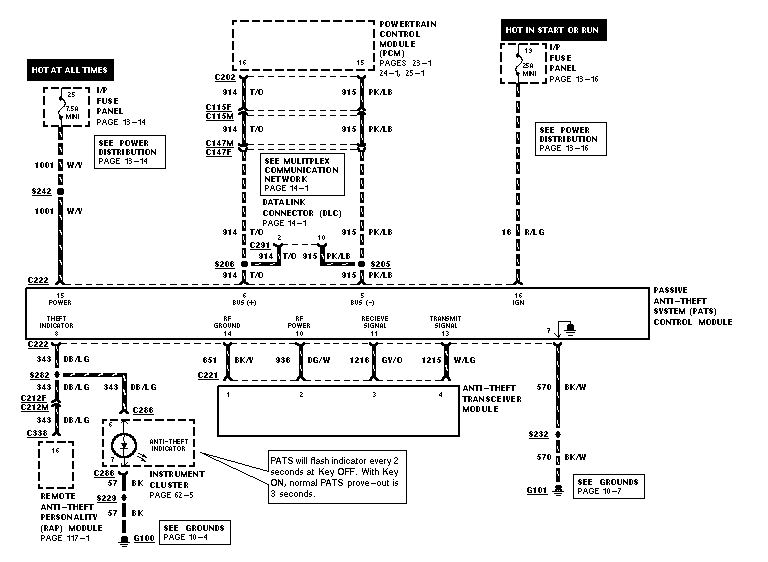

Passive Anti-Theft System (PATS) control module wiring diagram w…

C297 anti-theft transceiver module 4-pin connector pinout with circuit functions C291 black data link connector (DLC) pinout with circuit numbers and functions C222 passive anti-theft system (PATS) control module connector pinout with circuit functions C180 black 4R70W transmission connector pinout with circuit numbers and functions C112 digital transmission range (DTR) sensor connector pinout with circuit numbers and functions Passive Anti-Theft System (PATS) control module wiring diagram with transceiver and indicator Ford Overdrive Switch Connector Pinout & Wire Colors Diagram (F-250) Ford PCM C202 Connector Pinout (Pins 35-90) - Circuit & Wire Color Chart 32wiring diagrams1987-1991 Ford F-250 More reference Service procedureEPC relief valve install steps with drilled bottom plate, purple spring, valve and bracket BrochureTransGo AODE-HD2 Reprogramming Kit instruction cover for 1992-2011 AODE, 4R70/75W and 4R70/75E Spec plateFord certification label dated 06/93, type truck, VIN beginning 1FTCR11X, with GAWR and tire data Blueprint1992 Ford Bronco complete underbody frame dimensions, top and side views with measuring points SchematicF150 1980-2003 catalog diagram P28018 of A/C condenser and hoses for the 5.8L 8-cylinder, 1990 to 1993 Vacuum routingFord 5.8L Vacuum Hose Routing Diagram - Emissions Decal MFM05.8BSA6
