Hyundai Genesis Coupe ICM Relay Box & Data Link Connector Locations - Dash

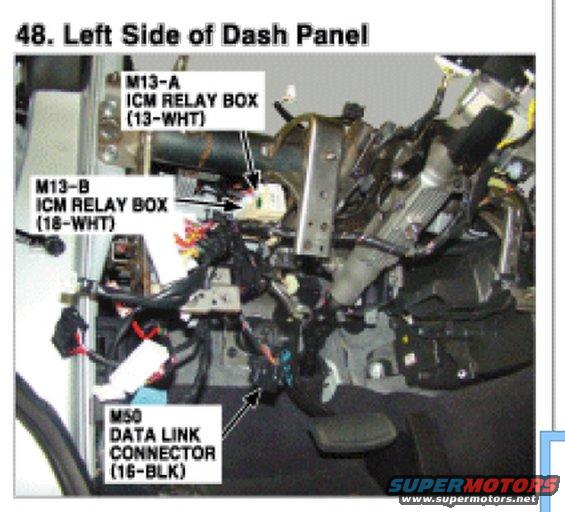

This document is a labeled photograph from a service manual, identified as figure/item 48, showing the left side of the dash panel with the dashboard trim removed to expose wiring harnesses, connectors, and the steering column area. Three components are called out with arrows: connector M13-A for the ICM (Integrated Circuit/Instrument Control Module) Relay Box, a 13-pin white (13-WHT) connector located high near the steering column support; connector M13-B for the ICM Relay Box, an 18-pin white (18-WHT) connector mounted just below/left of M13-A; and connector M50, the Data Link Connector (DLC), a 16-pin black (16-BLK) connector located low near the driver's footwell area. A reader can use this page to physically locate the ICM relay box connectors and the OBD-II style 16-pin data link connector on the driver's side of the dash. The connector designations (M13-A, M13-B, M50), pin counts, and housing colors (white, white, black) are stated in the callouts. The document itself carries no visible year, model, or part-number text beyond these connector labels; the vehicle application (claimed 2013 Hyundai Genesis Coupe per uploader) is not stated on the page itself.
