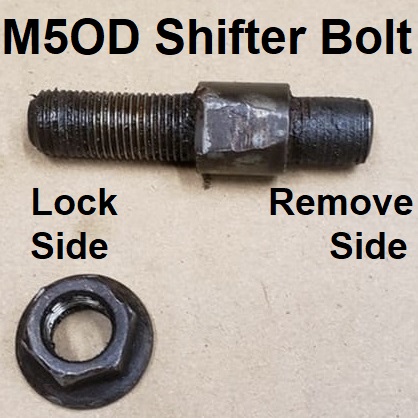

M5OD shifter bolt and nut diagram labeling lock side and remove…
General Purpose PicsView all 430
Mazda M5OD (and possibly others) Shifter Wedge Bolt (7L197)
The nut is normally installed on the LOCK side to hold the shifter tight. To extract the wedge, tighten the nut on the REMOVE side until it slides out, then pull the shifter handle off the shift shaft.
.
