What years and engine does this APC installation sheet apply to?

It applies to '94.5-97 7.3L (diesel) vehicles, per the title of the sheet.

What is the kit part number for the APC module kit?

The kit components are listed under 59A-02929.

What torque is used to attach the APC Module to the Module Bracket?

The four M5 x 11 pan head screws (Item #11) are torqued to 1.6 to 2.0 Nm.

Where does the APC Module mount?

It mounts under the Instrument Panel, positioned under the Ash Receiver Door, attached to the flange with the two existing instrument panel screws, plus a clip and brace around the Instrument Panel Support.

What are the final torque specs for the mounting fasteners?

The instrument panel screws are torqued to 2.5 +/- 0.4 Nm, and the M6 fasteners (Item #6) are tightened to 12 +/- 1.8 Nm.

Home/ Registry/ Ford/ F-250/ 1992-1997/ “Big Red”/ Photo supermotors.net/registry/media/1171932

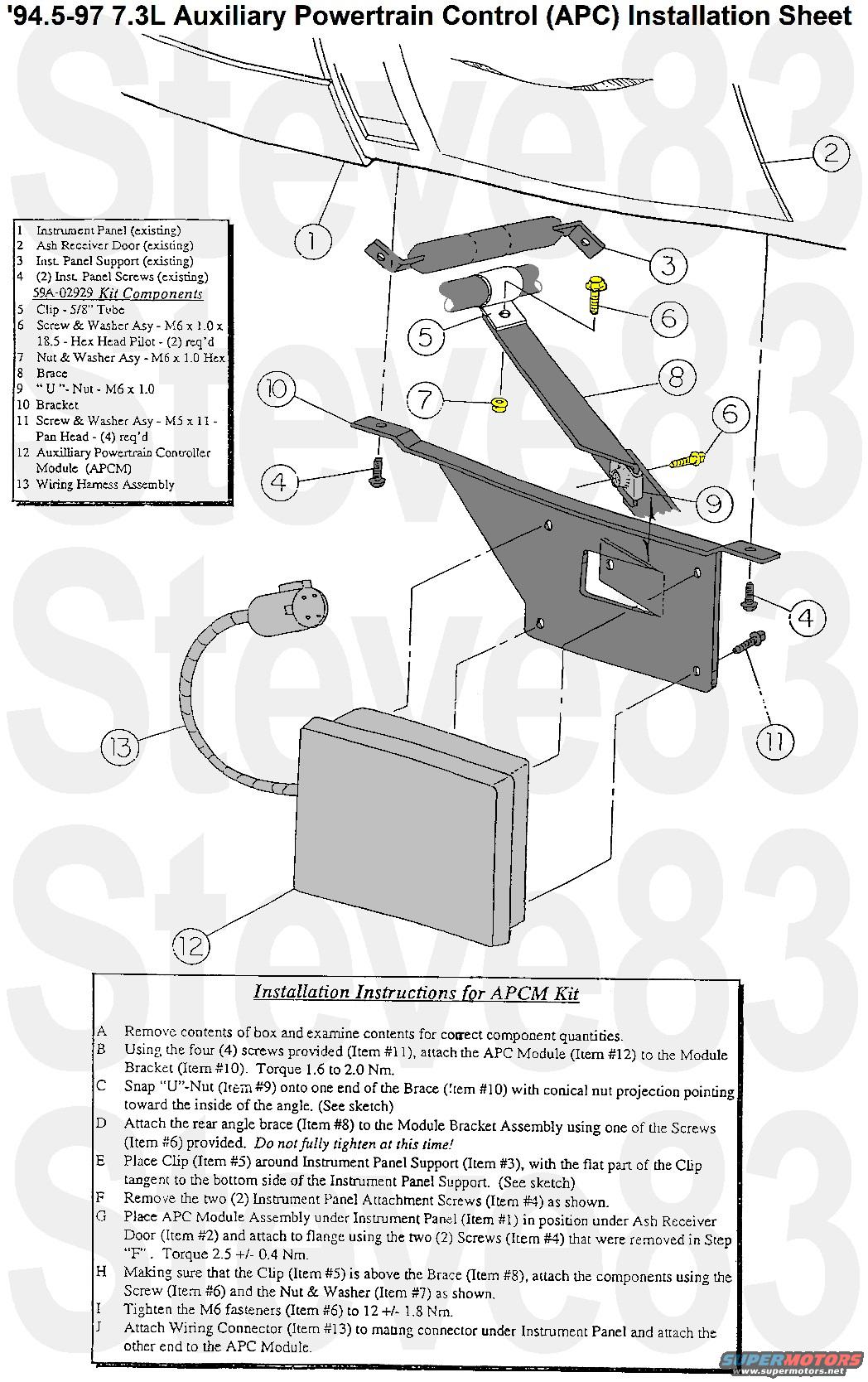

1994.5-97 Ford 7.3L Auxiliary Powertrain Control (APC) Module Installation Sheet

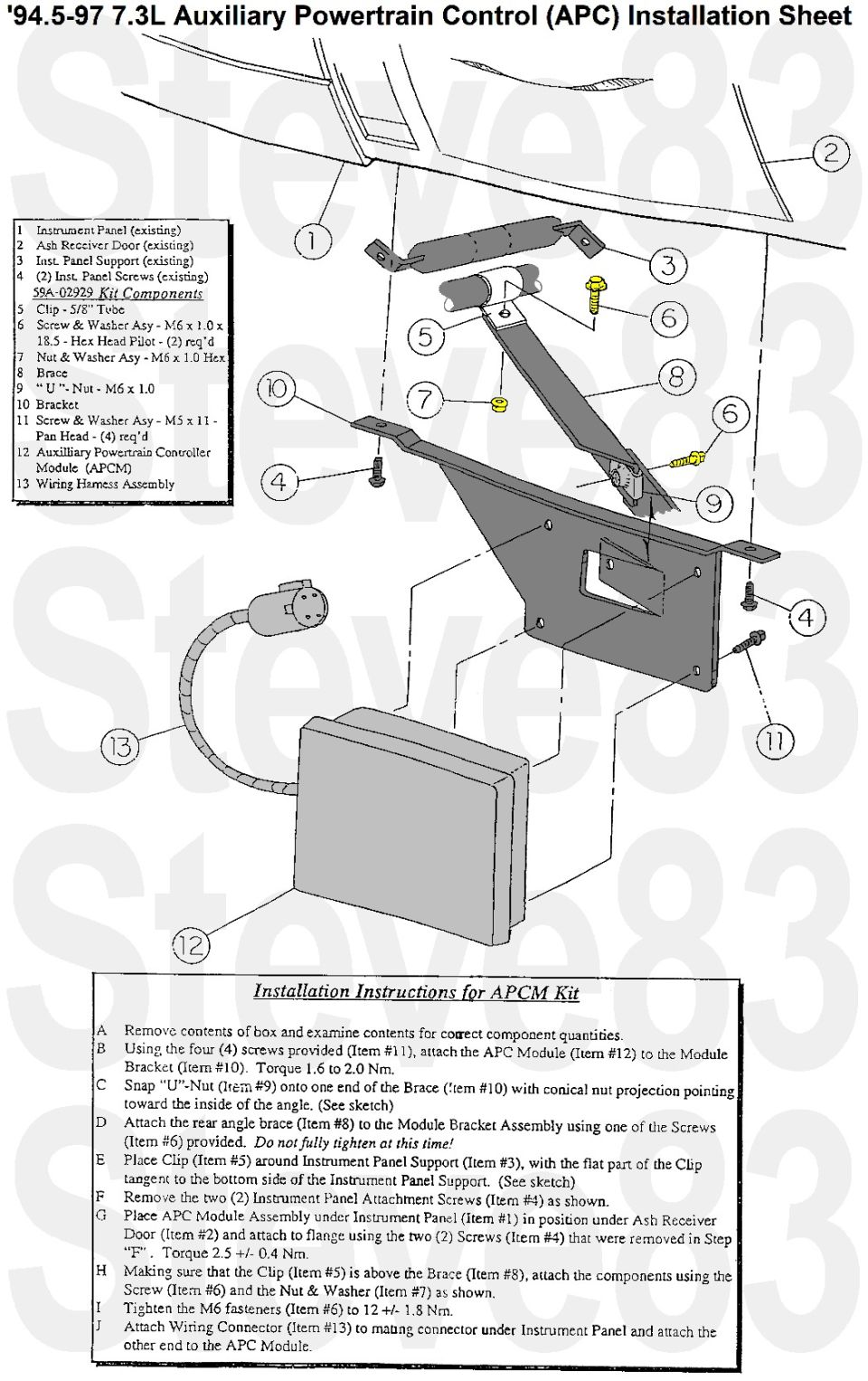

'94.5-97 7.3L Auxiliary Powertrain Control installation sheet with figure and step instructions

‹ ›

Reference · 1992-1997 F-250All 2 service procedures

1994.5-97 Ford 7.3L Auxiliary Powertrain Control (APC) Module Installation Sheet

2service procedures1992-1997 Ford F-250 More reference

'97 International Navistar 7.3 DIT engine emissions label, model A225, 225 @ 3000 rated power

Spec plate

Wiring diagram

Schematic

1997 Ford 7.3L Power Stroke Fuel System Exploded Diagram & Part Numbers

Exploded parts

'97 F-Series diesel fuse and relay chart with color-coded fuse box layouts, amperage and circuit list

Fuse chart

Ford interior color chip chart with code 4221 Medium Opal marked next to a Cromax paint can

Manual page

1993 Ford 5.8L and 7.5L heavy-duty emission labels with vacuum hose routing and 10° BTDC timing

Vacuum routing

Blueprint

APCM (auxiliary PCM) instruction sheet
IF THE IMAGE IS TOO SMALL, click it.

See also:

Part of 1992-1997 Ford F-250 Service Procedures

Owner caption February 2024 · Photo 164 of 195

This document is an installation sheet for the Auxiliary Powertrain Control (APC) module kit for 1994.5-1997 Ford trucks with the 7.3L diesel engine. It includes an exploded-view diagram showing how the APC Module (APCM) mounts on a bracket under the instrument panel, near the ash receiver door and instrument panel support. A parts legend lists existing vehicle components (instrument panel, ash receiver door, instrument panel support, and two instrument panel screws) and the 59A-02929 kit components: a 5/8" tube clip, M6 x 1.0 x 18.5 hex head pilot screw & washer assemblies (2 required), M6 x 1.0 hex nut & washer assembly, brace, M6 x 1.0 U-nut, bracket, M5 x 11 pan head screw & washer assemblies (4 required), the APCM itself, and a wiring harness assembly. Ten step-by-step installation instructions (A-J) explain assembling the module to the bracket (torque 1.6-2.0 Nm), attaching the U-nut and rear angle brace, clipping to the instrument panel support, mounting the assembly using the existing instrument panel screws (torque 2.5 +/- 0.4 Nm), tightening M6 fasteners to 12 +/- 1.8 Nm, and connecting the wiring harness. Readers can learn the full parts list, mounting location, and required torque specifications for installing the APC kit.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What years and engine does this APC installation sheet apply to?: It applies to '94.5-97 7.3L (diesel) vehicles, per the title of the sheet.
What is the kit part number for the APC module kit?: The kit components are listed under 59A-02929.
What torque is used to attach the APC Module to the Module Bracket?: The four M5 x 11 pan head screws (Item #11) are torqued to 1.6 to 2.0 Nm.
Where does the APC Module mount?: It mounts under the Instrument Panel, positioned under the Ash Receiver Door, attached to the flange with the two existing instrument panel screws, plus a clip and brace around the Instrument Panel Support.
What are the final torque specs for the mounting fasteners?: The instrument panel screws are torqued to 2.5 +/- 0.4 Nm, and the M6 fasteners (Item #6) are tightened to 12 +/- 1.8 Nm.
