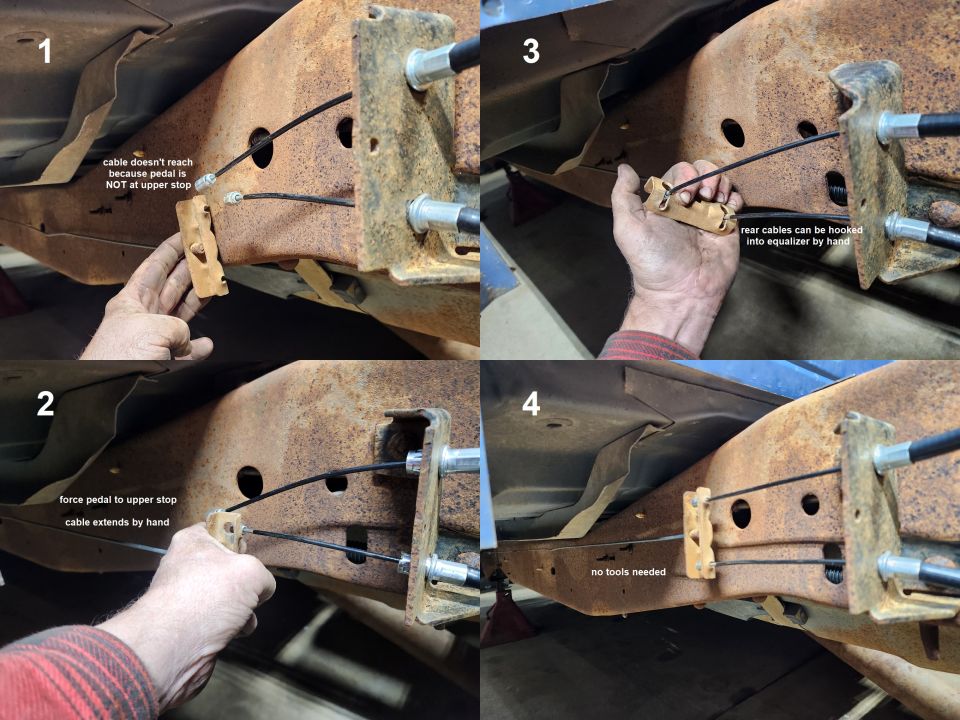

Four-panel image showing brake cable installation on a rusty veh…
Brakes & HubsView all 184
E-brake Cable Re-connection on '92-up trucks
IF THE IMAGE IS TOO SMALL, click it.
The pedal MUST be hard against its upper (released) stop for the adjuster mechanism to be unlocked. Then the equalizer can be pulled rearward by hand to insert or remove the cable ends from its keyhole slots.
