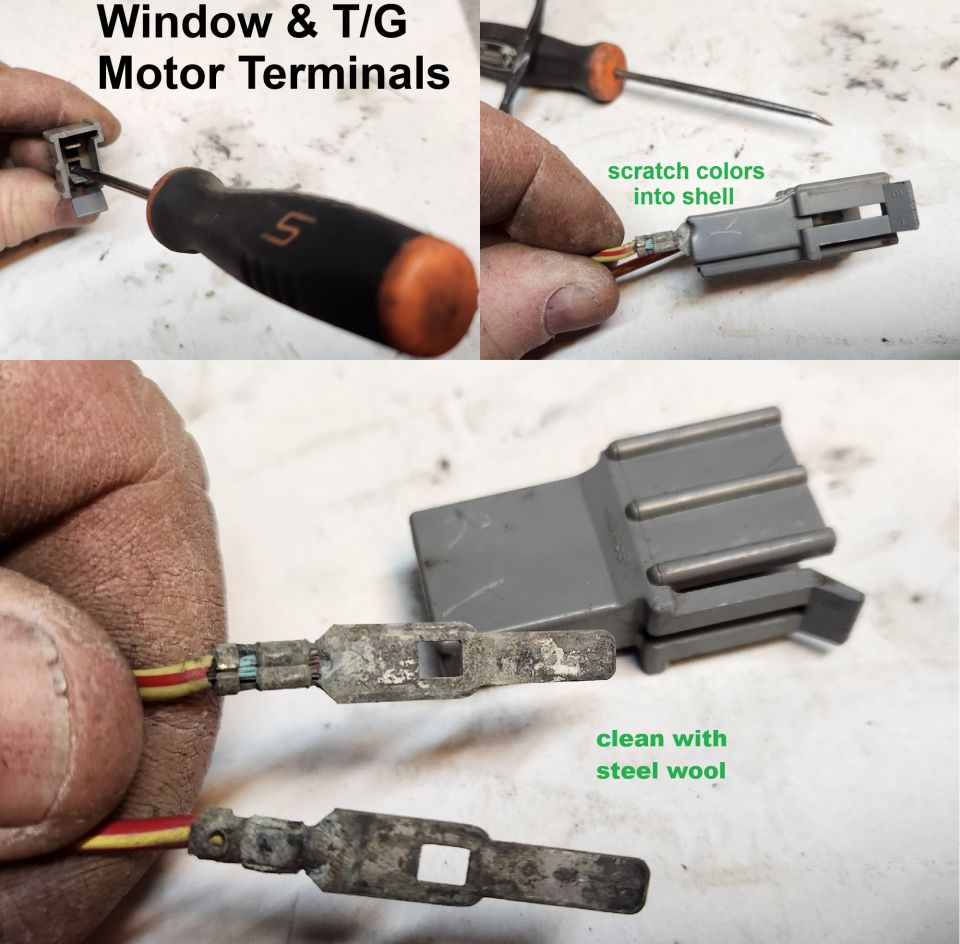

Window Motor Terminals
IF THE IMAGE IS TOO SMALL, click it.
After scratching the wire colors into the plastic shell, release the terminals for cleaning.
Female
terminal
