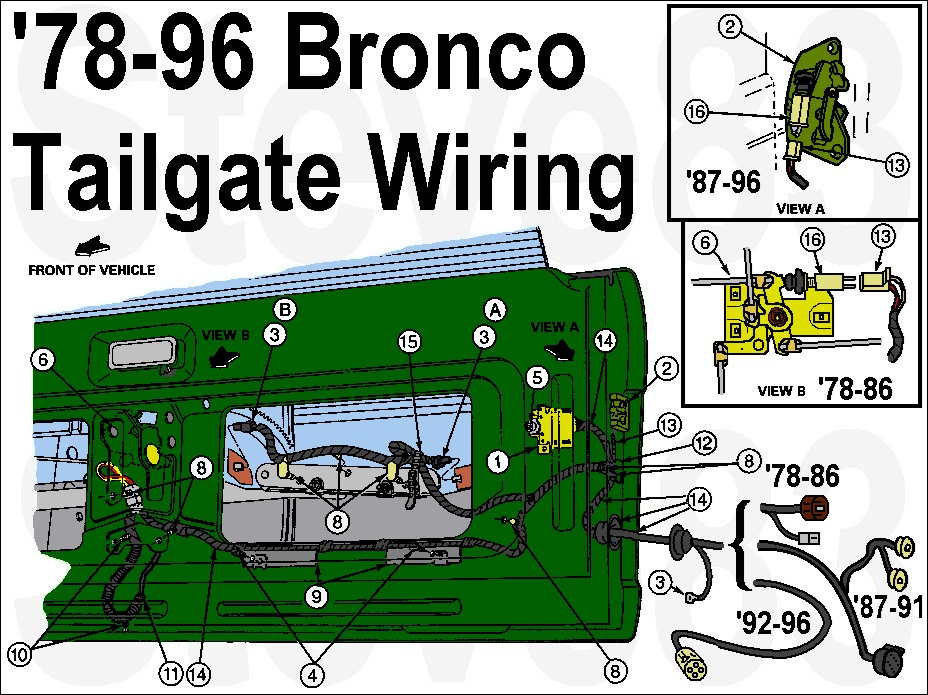

'78-96 Bronco tailgate wiring diagram with latch views and conne…

'78-96 Bronco Tailgate Wiring Installation
IF THE IMAGE IS TOO SMALL, click it.

1 - Switch and Housing Assembly (Includes 14086 Wiring) - 14046
2- Latch Assembly - 43170
3 - Ground ring terminal to Heated Backlight only
4 - Screw - 55927-S2
5- Cylinder Case Assembly - 7143184
6- Remote Control Assembly - 9843170
8 - Locator (Part of 14086 Wiring Assembly)
9 - Guard Channel (Part of 14086 Wiring Assembly)
10 - Locator (Part of 9844000 Window Regulator Assembly)
11 - Wiring (Part of 9844000 Window Regulator Assembly)
12 - Existing Locator Bracket (Part of Door Assembly)
13 - To Window Limit Switch
14 - Wiring (Part of 14046 Switch and Housing Assembly)
15 - Strap - 95873-S
16 - Limit Switch Assembly - 14A011
A. Circuit 57: Black
B. Circuit 186: Brown-Light Blue Stripe
