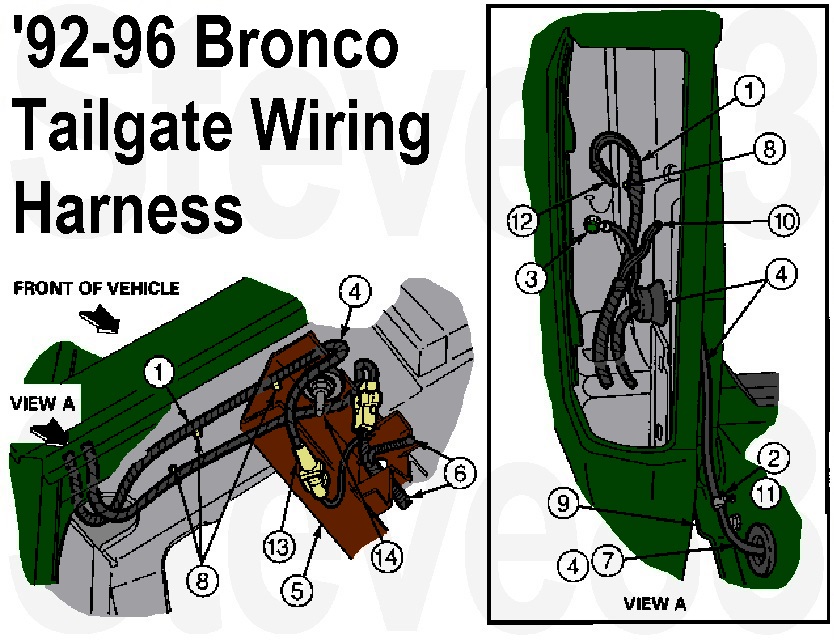

'92-96 Bronco Tailgate Wire Harness Routing
IF THE IMAGE IS TOO SMALL, click it.

1 - Wiring Assembly (Standard Production) 13A409
2 - Locator, Position in Hole Provided (Part of 14086)
3 - Screw N805375-S36MG
4 - Wiring Assembly (Tailgate) 14086
5 - Frame Assembly 5005
6 - Wiring Assembly 14405
7 - To Tailgate Assembly
8 - Locator (Shown in Installed Position) (Part of 13A409)
9 - Tailgate Assembly 40700
10 - To Backup Lamp
11 - Clip 377105-5
12 - To Turn Signal and Stoplamp
13 - Interconnect (14405) 13A409
14 - Cap 14A099
