What wire color is the Ford alternator power wire in this diagram?

ALT PWR = RED, and the alternator excitor wire is WHITE.

How does the Ford DuraSpark electronic ignition module connect according to this diagram?

The DuraSpark distributor connects to the electronic ignition module via green, orange, purple, and black wires; the module also connects with white and red wires to the starter solenoid circuit, and the ignition coil (+ and -) is wired in with COIL POS = PINK and TACHOMETER = PURPLE/WHITE.

What are the Ford ignition switch conversion wire colors?

IGN SW PWR = RED to YELLOW, IGN SW IGN = PINK to RED/GREEN, IGN SW ACC = ORANGE to BLACK, IGN SW START = PURPLE to WHITE/BLUE.

What color is the Ford turn flasher and hazard wire in the steering column conversion?

TURN FLASHER = PURPLE converts to BLUE, and HAZZARD = DK BROWN converts to WHITE/RED.

What are the temperature and oil sender wire colors?

OIL SENDING = LT BLUE/BLACK and TEMP SENDING = LT GREEN.

Home/ Registry/ Ford/ Mustang/ 1979-1993/ “All-Go No-Show!”/ Photo supermotors.net/registry/media/161562

Ford Wiring Diagrams - Charging System, DuraSpark Ignition & Column Conversion

Ford charging and ignition wiring diagram with color-coded wire legend

‹ ›

Ford wiring diagram showing charging system and electronic ignition circuits with color-coded wire conversion legends.

AI caption December 2004 · Photo 13 of 50

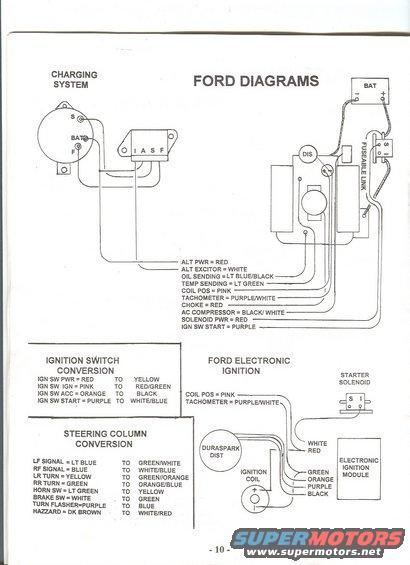

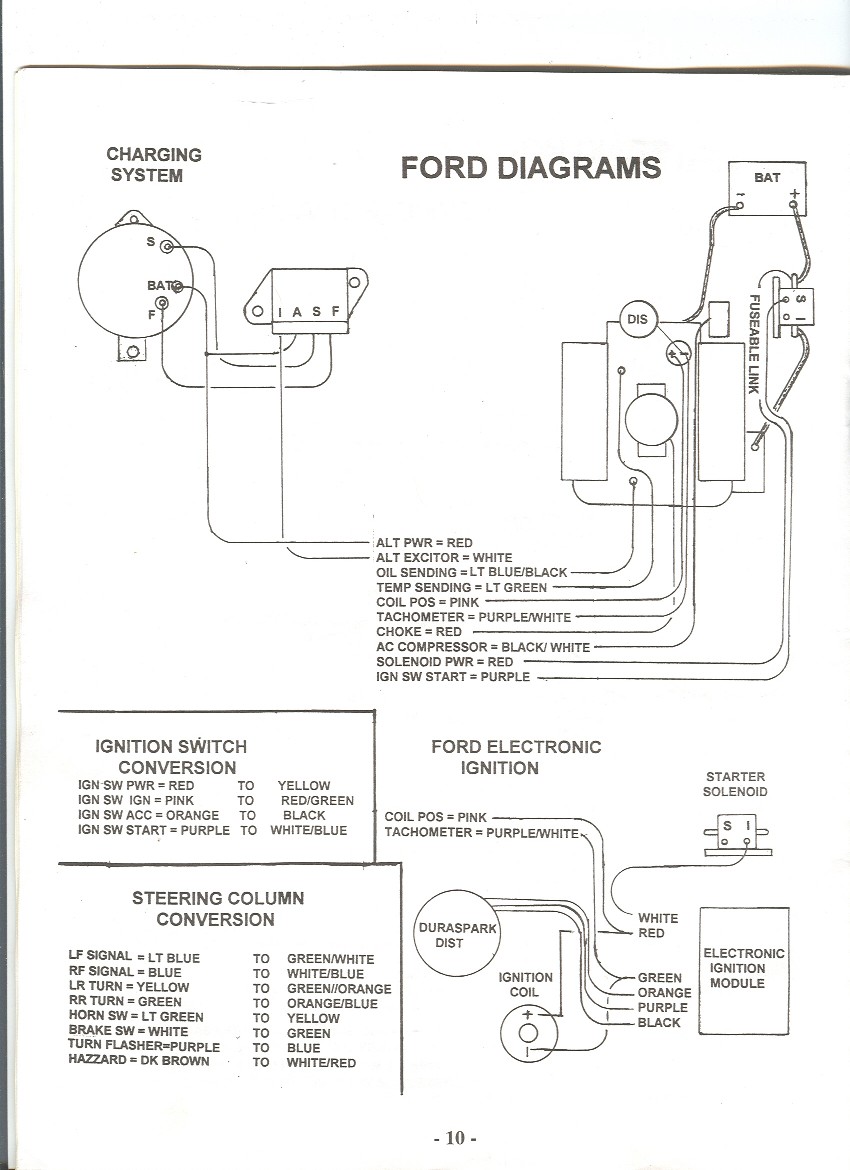

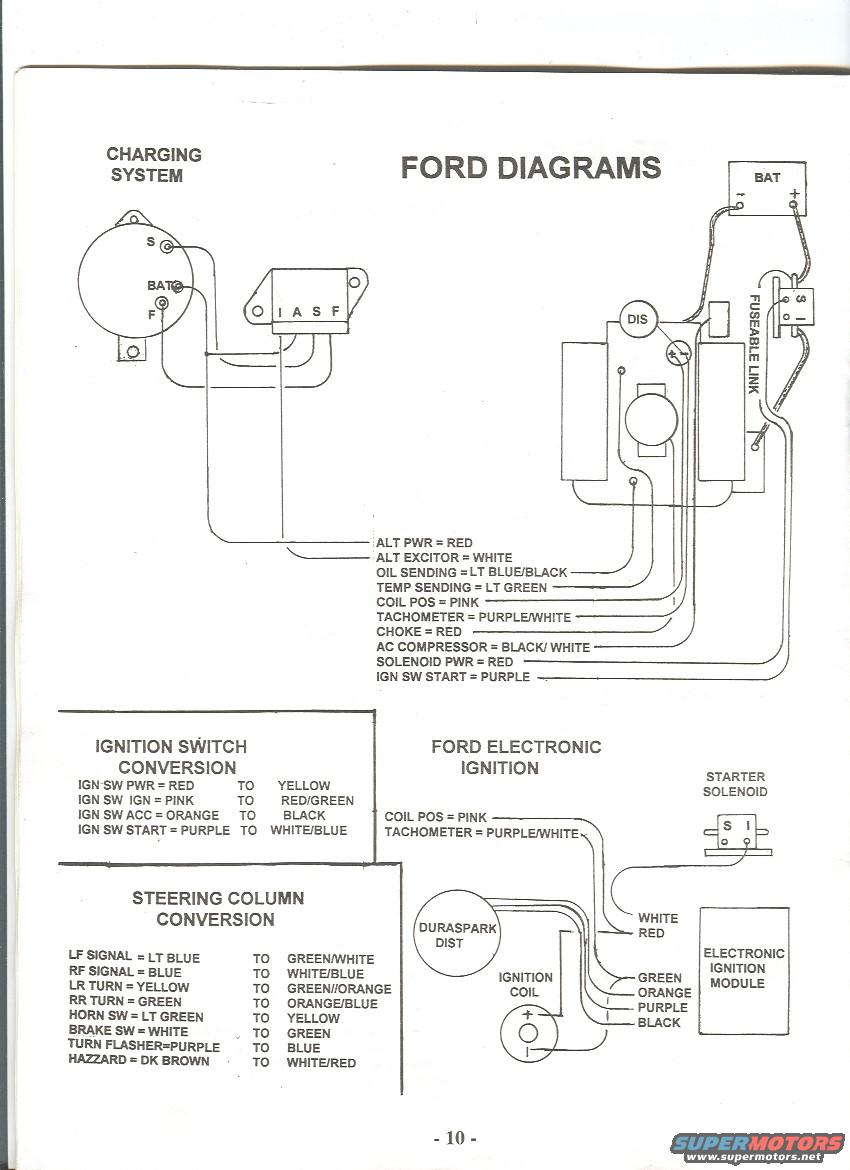

This is page 10 of an aftermarket wiring reference booklet titled "FORD DIAGRAMS," showing generic Ford wiring information rather than a diagram for a specific model year. It contains four sections: (1) a Charging System diagram showing the alternator (terminals S, BAT, F), external voltage regulator (terminals I, A, S, F), battery, fusible link, and solenoid, with a wire-color legend (e.g., ALT PWR = RED, ALT EXCITOR = WHITE, OIL SENDING = LT BLUE/BLACK, TEMP SENDING = LT GREEN, COIL POS = PINK, TACHOMETER = PURPLE/WHITE, CHOKE = RED, AC COMPRESSOR = BLACK/WHITE, SOLENOID PWR = RED, IGN SW START = PURPLE); (2) an Ignition Switch Conversion table mapping factory Ford ignition switch wire colors to aftermarket harness colors; (3) a Steering Column Conversion table mapping turn signal, horn, brake switch, flasher, and hazard wire colors; and (4) a Ford Electronic Ignition diagram showing the DuraSpark distributor, ignition coil, starter solenoid, and electronic ignition module with wire colors (white, red, green, orange, purple, black). A reader can learn how to wire or convert a Ford charging system, DuraSpark ignition, and steering column to an aftermarket wiring harness using these color mappings.
