What connector is shown in this diagram?

Connector C2032, the headlamp switch connector, for vehicles with auto lamps.

Which pin on the C2032 headlamp switch is ground?

Pin 4, circuit 57 with a black (BK) wire, is ground.

What wire provides constant power to the headlamp switch?

Pin 7 carries two circuit 196 (DB/O, dark blue/orange) wires labeled Power (Hot at All Times).

What does pin 6 of the headlamp switch do?

Pin 6 carries circuit 15 (R/Y). It is the Multi-Function Switch Feed, or on vehicles with auto lamps (*), the Auto Lamp Headlamp Relay Output.

Which pin controls instrument illumination?

Pin 5, circuit 1045 (DB/W, dark blue/white), is Instrument Illumination.

Home/ Registry/ Ford/ Taurus/ 1996-1999/ 1997 Ford Taurus/ Photo supermotors.net/registry/media/167207

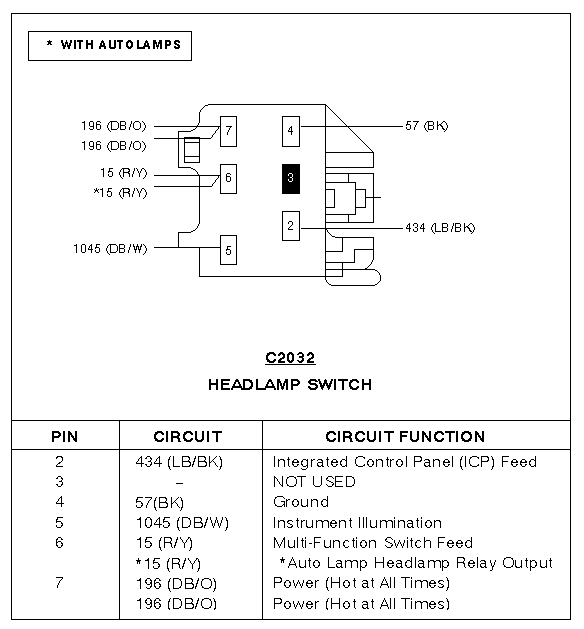

1997 Ford Taurus Headlamp Switch Connector C2032 Pinout with Auto Lamps

Headlamp switch connector C2032 pinout with pin/circuit function table

‹ ›

Connector pinout chart for headlamp switch C2032 listing each pin's circuit number and function such as ground, illumination and feeds.

AI caption December 2004 · Photo 120 of 579

This document is a connector pinout reference for connector C2032, the headlamp switch, on a Ford vehicle equipped with auto lamps (as noted by the asterisk legend '* WITH AUTO LAMPS'). It shows a diagram of the switch connector with pin cavity positions 2 through 7 (pin 3 is blacked out/not used) along with the circuit numbers and wire colors attached to each pin. A table below the diagram lists each pin's circuit number, wire color, and function: pin 2 carries circuit 434 (light blue/black) as the Integrated Control Panel (ICP) feed; pin 3 is not used; pin 4 carries circuit 57 (black) as ground; pin 5 carries circuit 1045 (dark blue/white) for instrument illumination; pin 6 carries circuit 15 (red/yellow) as the multi-function switch feed, or with auto lamps, the auto lamp headlamp relay output; and pin 7 carries two circuit 196 (dark blue/orange) wires providing power that is hot at all times. A reader can use this to identify wires at the headlamp switch connector for diagnosis of headlight, interior illumination, or auto lamp problems.
