Ford Taurus SHO 3.4L V8 Engine Exploded Parts Diagram - Gaskets & Part Numbers

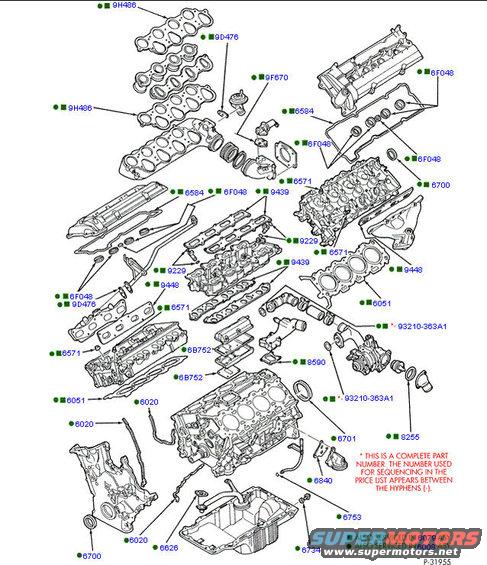

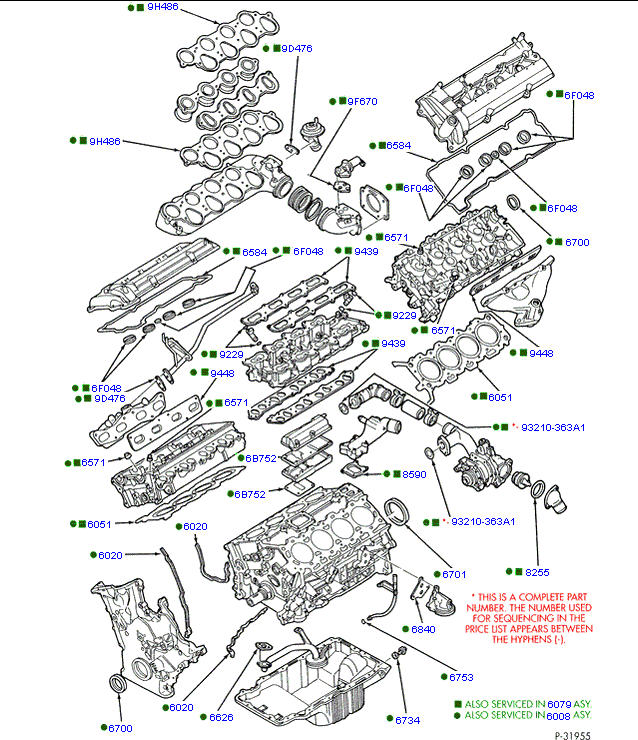

This document is a Ford factory-style exploded parts illustration (diagram reference P-31955) of a V8 engine, showing the engine disassembled into its major components and gaskets with basic part number callouts. Visible components include intake manifold gaskets (9H486), valve cover gaskets (6584) and grommets/seals (6F048), cylinder head gaskets and head-related items (6051, 6700), exhaust manifold gaskets (9448), throttle body/intake connections (9F670, 9439, 9229), camshaft/cylinder head assemblies (6571 callouts), the engine block, front cover and seals (6020, 6700), oil pan and gasket (6626, 6734, 6710-area hardware), oil pickup and dipstick-related parts (6753, 6754-area), rear main seal area (6701), water pump/thermostat area (8590, 8255), and complete part numbers 93210-363A1 marked with asterisks. Footnotes explain that asterisked numbers are complete part numbers whose price-list sequencing number appears between the hyphens, and that certain items are also serviced in the 6079 assembly and 6008 assembly. The document itself carries no year, model, or engine displacement text; the V8 identification comes from the eight cylinder bores visible in the block and head illustrations. Useful for identifying Ford basic part number groups when ordering gaskets and engine components.
