What amperage is the fuel pump fuse and where is it located?

The fuel pump fuse is 20A, located in position 10 of the engine compartment fuse panel.

Where is the starter relay in the engine fuse panel?

The starter relay is in position 32, near the top of the panel.

What size is the mega-fuse on this panel?

The MEGA-FUSE is rated at 175A and is located at the bottom of the fuse panel.

Which positions hold the 40A ignition fuses?

There are two IGNITION 40A fuses, in positions 3 and 5.

What relay controls the wipers on this panel?

The panel has a WIPER PARK RELAY at position 24 and a WIPER HI/LO RELAY at position 25, along with a WASHER MOTOR RELAY at position 29.

Home/ Registry/ Ford/ Taurus/ 1996-1999/ 1997 Ford Taurus/ Photo supermotors.net/registry/media/786398

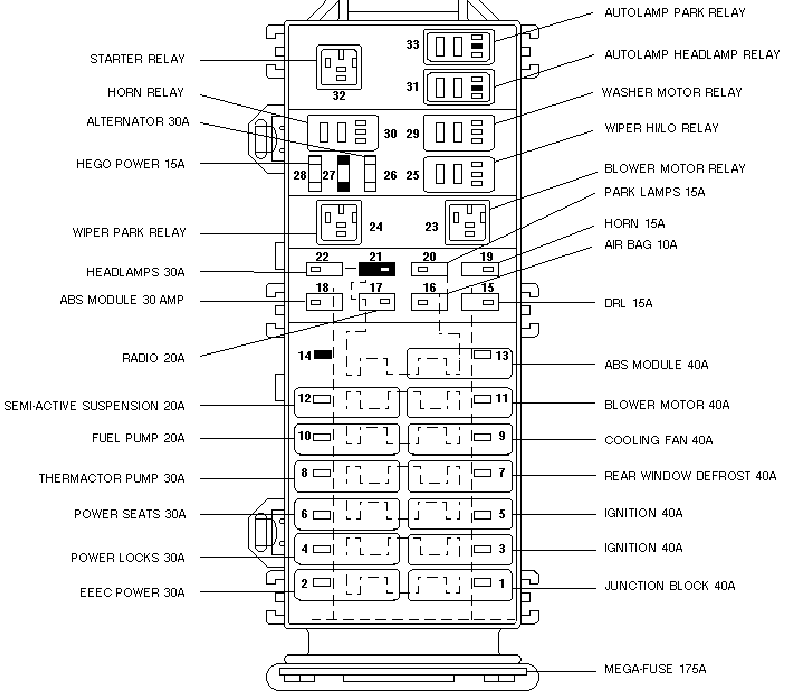

1997 Ford Taurus Gen 3 Engine Compartment Fuse Box Diagram - Fuse & Relay Chart

Ford Taurus/Sable fuse and relay box layout with amp ratings and relay positions

‹ ›

Fuse and relay center diagram identifying every relay and fuse with amperage: starter, horn, alternator 30A, ABS module 30/40A, blower motor 40A, cooling fan 40A, ignition 40A, mega-fuse 175A.

AI caption March 2010 · Photo 469 of 579

This document is a labeled line-drawing diagram of an engine compartment fuse and relay panel, uploaded as applicable to a 1997 Ford Taurus (third generation). The diagram shows the physical layout of the panel with numbered positions from 1 through 33, plus a 175A MEGA-FUSE at the base of the panel. Callout labels identify each fuse and relay by function and amperage. Relays shown include the starter relay (32), horn relay (30), wiper park relay (24), autolamp park relay (33), autolamp headlamp relay (31), washer motor relay (29), wiper hi/lo relay (25), and blower motor relay (23). High-current fuses in the lower cartridge section include junction block 40A (1), EEC power 30A (2), ignition 40A (3 and 5), power locks 30A (4), power seats 30A (6), rear window defrost 40A (7), thermactor pump 30A (8), cooling fan 40A (9), fuel pump 20A (10), blower motor 40A (11), semi-active suspension 20A (12), and ABS module 40A (13). Smaller fuses cover alternator 30A, HEGO power 15A, headlamps 30A, ABS module 30A, radio 20A, park lamps 15A, horn 15A, air bag 10A, and DRL 15A. A reader can use this to locate and identify fuses and relays by position and amperage.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What amperage is the fuel pump fuse and where is it located?: The fuel pump fuse is 20A, located in position 10 of the engine compartment fuse panel.
Where is the starter relay in the engine fuse panel?: The starter relay is in position 32, near the top of the panel.
What size is the mega-fuse on this panel?: The MEGA-FUSE is rated at 175A and is located at the bottom of the fuse panel.
Which positions hold the 40A ignition fuses?: There are two IGNITION 40A fuses, in positions 3 and 5.
What relay controls the wipers on this panel?: The panel has a WIPER PARK RELAY at position 24 and a WIPER HI/LO RELAY at position 25, along with a WASHER MOTOR RELAY at position 29.
