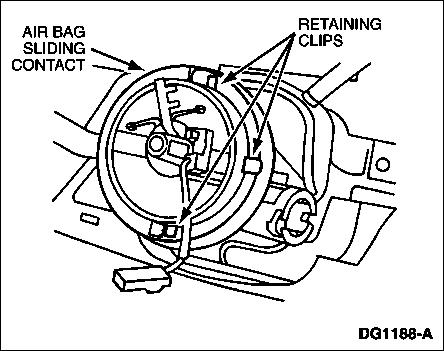

clock-spring-removal.jpg Clock Spring

"Sliding contact" is a misnomer.  The older horn contacts were sliding, but a more-stable connection was needed for airbags, which is why the clock spring was invented.  It's a long ribbon of plastic with metal traces coiled like a clock spring that provides a wire-like path from the stationary steering column to the rotating steering wheel.  Unfortunately, over a few years, the traces either wear through or crack, causing airbag, cruise control, horn, and radio malfunctions.

For more info, see this album:
[url=http://www.supermotors.net/registry/6098/31472-4][img]http://www.supermotors.net/getfile/701936/thumbnail/steeringcolumn92up.jpg[/img][/url]
clock-spring-removal.jpg | Hits: 10697 | Posted on: 3/12/05 | View original size (40.57 KB)

Clock Spring

"Sliding contact" is a misnomer. The older horn contacts were sliding, but a more-stable connection was needed for airbags, which is why the clock spring was invented. It's a long ribbon of plastic with metal traces coiled like a clock spring that provides a wire-like path from the stationary steering column to the rotating steering wheel. Unfortunately, over a few years, the traces either wear through or crack, causing airbag, cruise control, horn, and radio malfunctions.

For more info, see this album:
