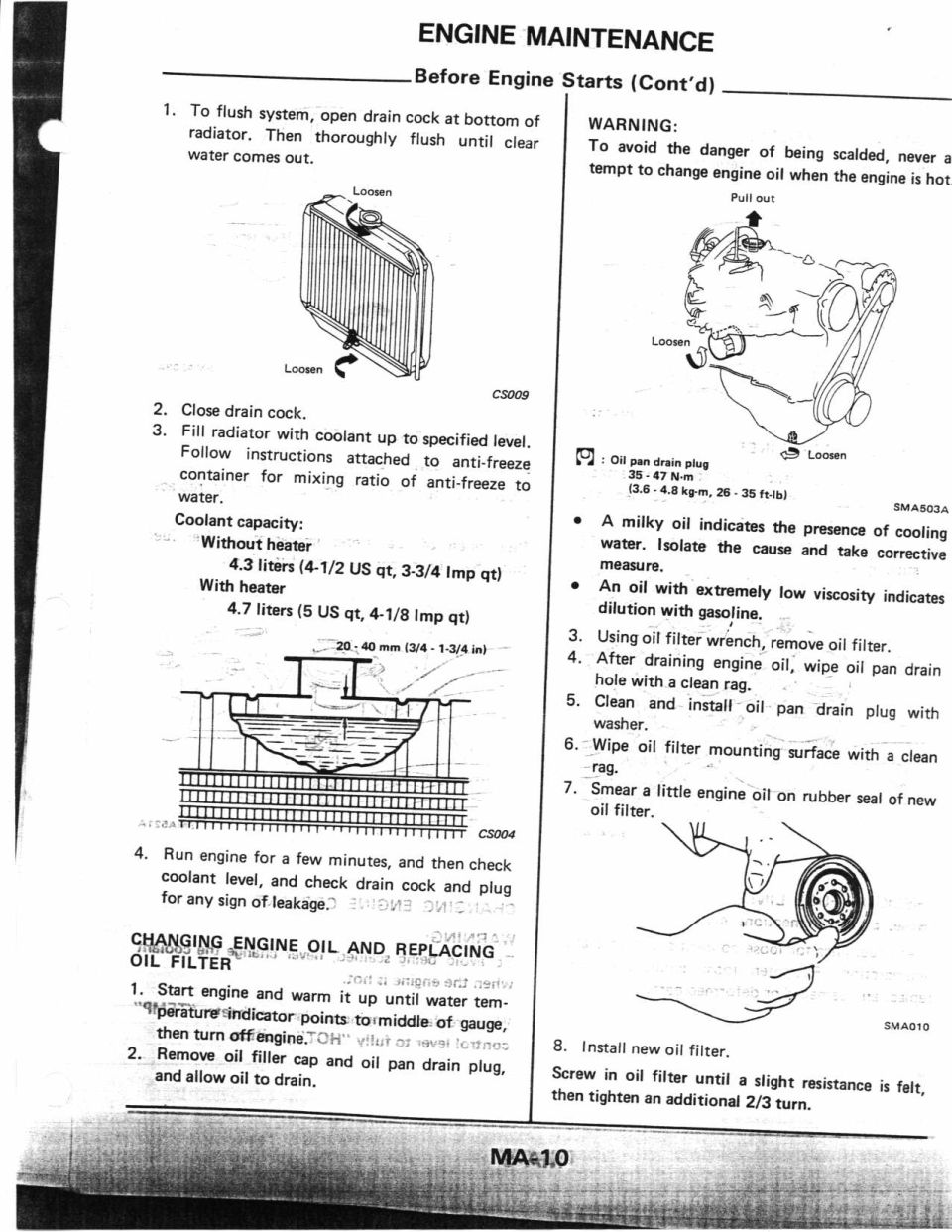

Engine maintenance manual page with radiator and oil filter diag…

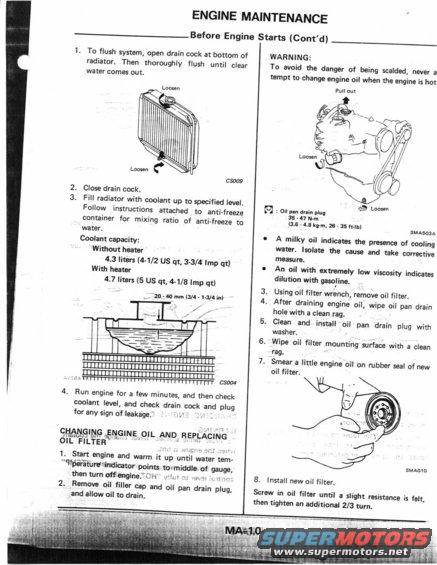

ENGINE MAINTENANCE Before Engine Starts (Cont'd) 1. To flush system, open drain cock at bottom of radiator. Then thoroughly flush until clear water comes out. 2300.9 2. Close drain cock. 3. Fill radiator with coolant up to specified level. Follow instructions attached to antifreeze container for mixing ratio of anti-freeze to water. Coolant capacity: Without heater 4.3 litrs (41/2 US qt, 3-3/4 Imp qt) With heater 4.7 liters (5 US qt, 44/8 Imp qt) ,jzn-aommmu-i-zmm 4. Run engine for a few minutes, and then check coolant level, and check drain cock and plug for any sign of leakagef .' 0 . 1 Start engine and warm it up until water tem- "qlpriturvfindiator pains toimiddle. of gauge, then turn offengineTCh : a r-w . 2. Remove oil filler cap and oil pan drain plug, and allow oil to drain. gmgly SMGINEOIL AND" REPEACING IL FILTER WARNING: To avoid the danger of being scalded, never a tempt to change engine oil when the engine is hot Pull out Lanun M : on pm drIin plug :5 - 41 N-m . - 4. . . I35 Bkgm, 26 35ftlhl SMASDJA - A milky oil indicates the presence of cooling water. Isolate the cause and take corrective measure. 0 An oil with extremely low viscosity indicates dilution with gasoline. 3. Using oil filter wrench, remove oil filter. 4. After draining engine oil, wipe oil pan drain hole with a clean rag. 5. Clean and install oil pan drain plug with washer. . 6. Wipe oil filter mounting surface with a clean rag. ' 7. Smear a little engine oil on rubber seal of new oil filter. Simon) 8. Install new oil filter. Screw in oil filter until a slight resistance is felt, then tighten an additional 2/3 turn.
