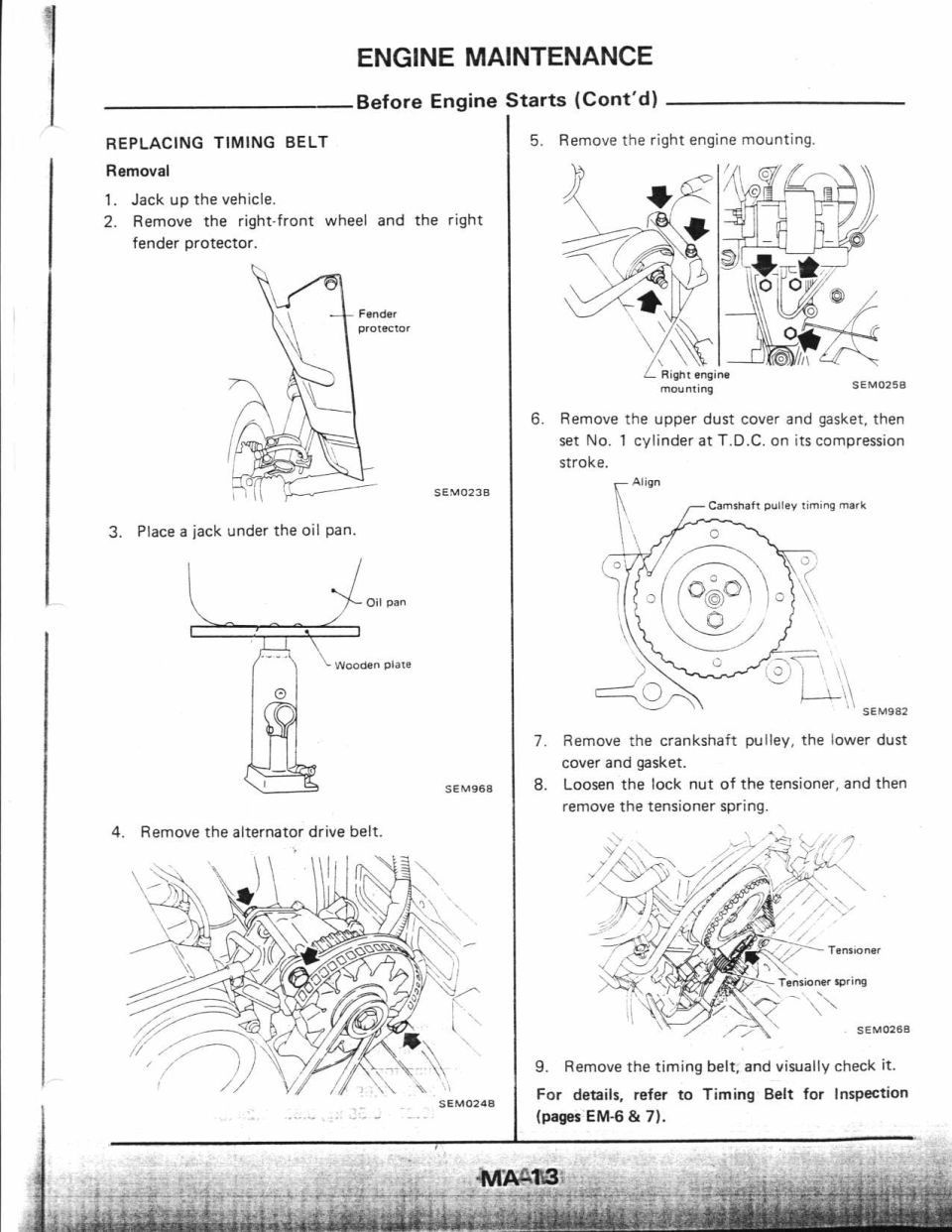

Service manual page showing timing belt replacement steps and di…

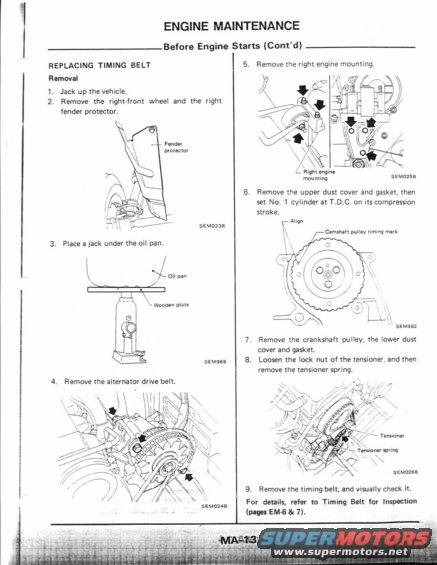

Scanned service manual page titled 'ENGINE MAINTENANCE - Before Engine Starts (Cont'd)' covering timing belt replacement, with line-drawing diagrams of the fender protector, oil pan jack, alternator drive belt, right engine mounting, camshaft pulley timing mark, and tensioner.
ENGINE MAINTENANCE REPLACING TIMING BELT Removal 1t Jack up the vehicle. 2. Remove the right-front wheel and the right fender protector. Fender wrurecmr SEMDZEB 3. Place a jack under the oil pan. on pan Wooden plate SEMBSE Before Engine Starts (Cont'd) 5. Remove the right engine mountingv mgr engine "mummy SEMD25B 6. Remove the upper dust cover and gasket, then set No. 1 cylinder at T.D.C. on its compression stroke. K Camsha pulley urnmg mark l /"\l Sims: 7. Remove the crankshaft pulley, the lower dust cover and gasket. 8. Loosen the lock nut of the tensioner, and then remove the tensioner spring. SEMoase 9 Remove the timing belt, and visually check it. For details, reier to Timing Belt for Inspection (page: EM-G & 7). .taimm; , , if
