Nissan service manual page MT-2 with transaxle and gear control…

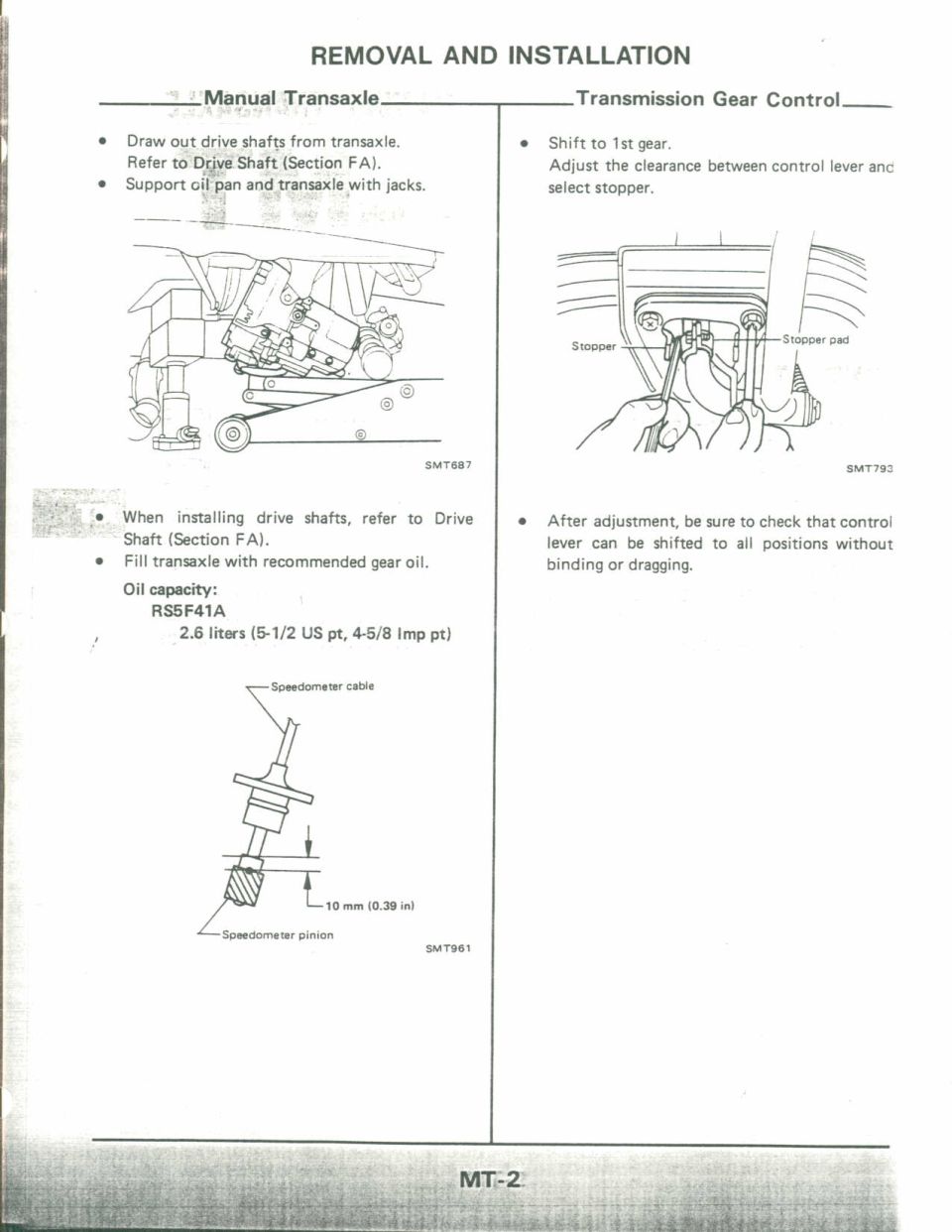

Nissan service manual page MT-2 with transaxle and gear control diagrams
Nissan service manual page MT-2 with transaxle and gear control diagramsOriginal file
Nissan service manual page MT-2 with transaxle and gear control diagrams

87 Service ManualView all 403

Clutch controls service manual page with pedal adjustment diagrams and specs Exploded view of clutch unit with flywheel, clutch disc, and clutch cover plus torque values Clutch unit service manual page with clutch disc and cover inspection diagrams Clutch cover installation procedure with alignment tool figure Clutch Service Data and Specifications (S.D.S.) with disc, cover and torque values, Nissan Service manual page listing special clutch service tools with drawings, page CL-8 Service manual Section MT Manual Transaxle contents page Nissan service manual page MT-2 with transaxle and gear control diagrams Service manual page MT-3 showing oil seal replacement steps and diagrams. Exploded view of transmission case components with clutch housing, seals, and plugs Exploded view of transmission gear components with shafts, gears, bearings, and synchros Exploded view of transmission shift components with forks, rods, and shift mechanism Manual transaxle disassembly steps with figures: removing case bolts, position switch, reverse idler gear, bea Transaxle disassembly steps: removing final drive, shift rod plate, retaining pin, shifter, welch plug and sel Clutch housing and transmission case repair: input shaft oil seal, control shaft seal, rear bearing, welch plu Clutch housing and transmission case repair: mainshaft front and rear bearing outer race removal and installat 403photos in this albumView all

Scanned service manual page titled 'REMOVAL AND INSTALLATION' covering Manual Transaxle and Transmission Gear Control, with line drawings of an under-car transaxle (SMT687), a gear control stopper adjustment (SMT793), and a speedometer pinion showing 10 mm clearance (SMT961). Text notes RS5F41A oil capacity of 2.6 liters, page MT-2.

AI caption · Photo 149 of 412

REMOVAL AND INSTALLATION ~' Minna! Transaxle Draw out drive shafts from transaxle. Refer to' Dglve Shaft (Section FA). Support oil Ian aridttransaxle yrith jacks. sMraav When installing drive shafts, refer to Drive Shaft (Section FA). Fill transaxle with recommended gear oil. Oil capacity: RSSFMA 2.6 liters (51/2 US pt, 4.5/8 Imp pt) Speedometer cable 10 mm (0.39 in) Spudomamr pimon Transmission Gear Control Shift to lst gear Adjust the clearance between control lever anc select stopper. sun-793 After adjustment, be sure to check that control lever can be shifted to all positions without binding or dragging.

Is this accurate? Sign in to help verify it.
