Nissan Micra Clutch Service Data & Torque Specs - Disc 160TBL, Cover D160K

Clutch Service Data and Specifications (S.D.S.) with disc, cover and torque values, Nissan

‹ ›

Clutch SDS table: disc 160 x 110 x 3.2 mm, cover D160K full load 2,942 N (300 kg), pedal height 198-208 mm, plus clutch tightening torque values.

AI caption June 2005 · Photo 146 of 412

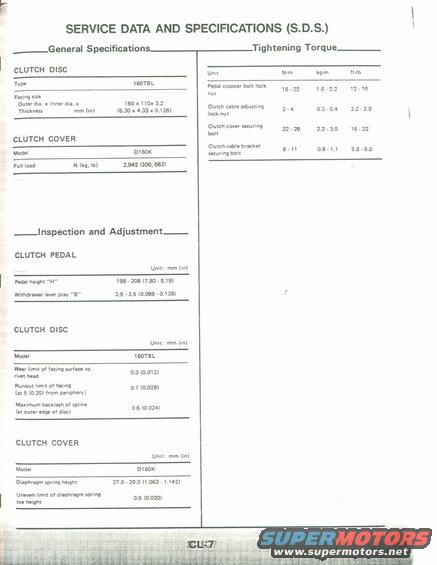

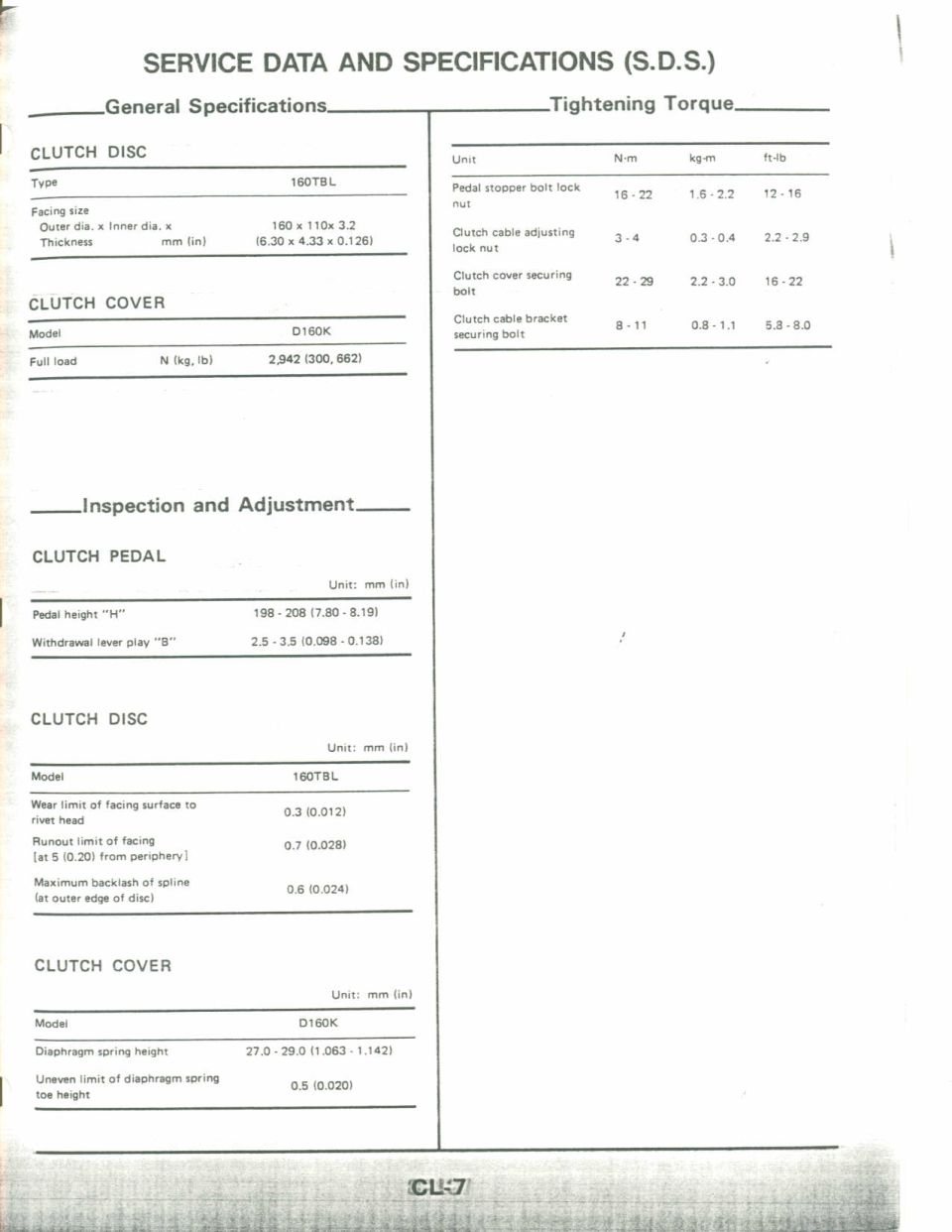

This is a Service Data and Specifications (S.D.S.) page (page code CL-7) from a factory service manual clutch section, uploaded as part of a manual set for a 1990 Nissan Micra. It provides general specifications for the clutch disc (type 160TBL, facing size 160 x 110 x 3.2 mm / 6.30 x 4.33 x 0.126 in) and clutch cover (model D160K, full load 2,942 N / 300 kg / 662 lb). A tightening torque table lists values in N·m, kg-m, and ft-lb for the pedal stopper bolt lock nut (16-22 N·m), clutch cable adjusting lock nut (3-4 N·m), clutch cover securing bolt (22-29 N·m), and clutch cable bracket securing bolt (8-11 N·m). Inspection and adjustment specs cover clutch pedal height (198-208 mm / 7.80-8.19 in), withdrawal lever play (2.5-3.5 mm), clutch disc wear limit to rivet head (0.3 mm), facing runout limit (0.7 mm), spline backlash maximum (0.6 mm), diaphragm spring height (27.0-29.0 mm), and uneven diaphragm spring toe height limit (0.5 mm). Useful for anyone servicing or adjusting a cable-operated clutch on this vehicle.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the torque spec for the clutch cover securing bolts?: 22 - 29 N·m (2.2 - 3.0 kg-m, 16 - 22 ft-lb).
What is the correct clutch pedal height?: Pedal height "H" is 198 - 208 mm (7.80 - 8.19 in), with withdrawal lever play "B" of 2.5 - 3.5 mm (0.098 - 0.138 in).
What is the wear limit for the clutch disc facing?: The wear limit of the facing surface to rivet head is 0.3 mm (0.012 in).
What clutch disc and cover models does this document cover?: Clutch disc type 160TBL (facing size 160 x 110 x 3.2 mm) and clutch cover model D160K with a full load of 2,942 N (300 kg, 662 lb).
What is the torque for the clutch cable adjusting lock nut?: 3 - 4 N·m (0.3 - 0.4 kg-m, 2.2 - 2.9 ft-lb).
