Nissan Micra Manual Transaxle Disassembly (MT-7) - Case, Idler Gear, Retainer

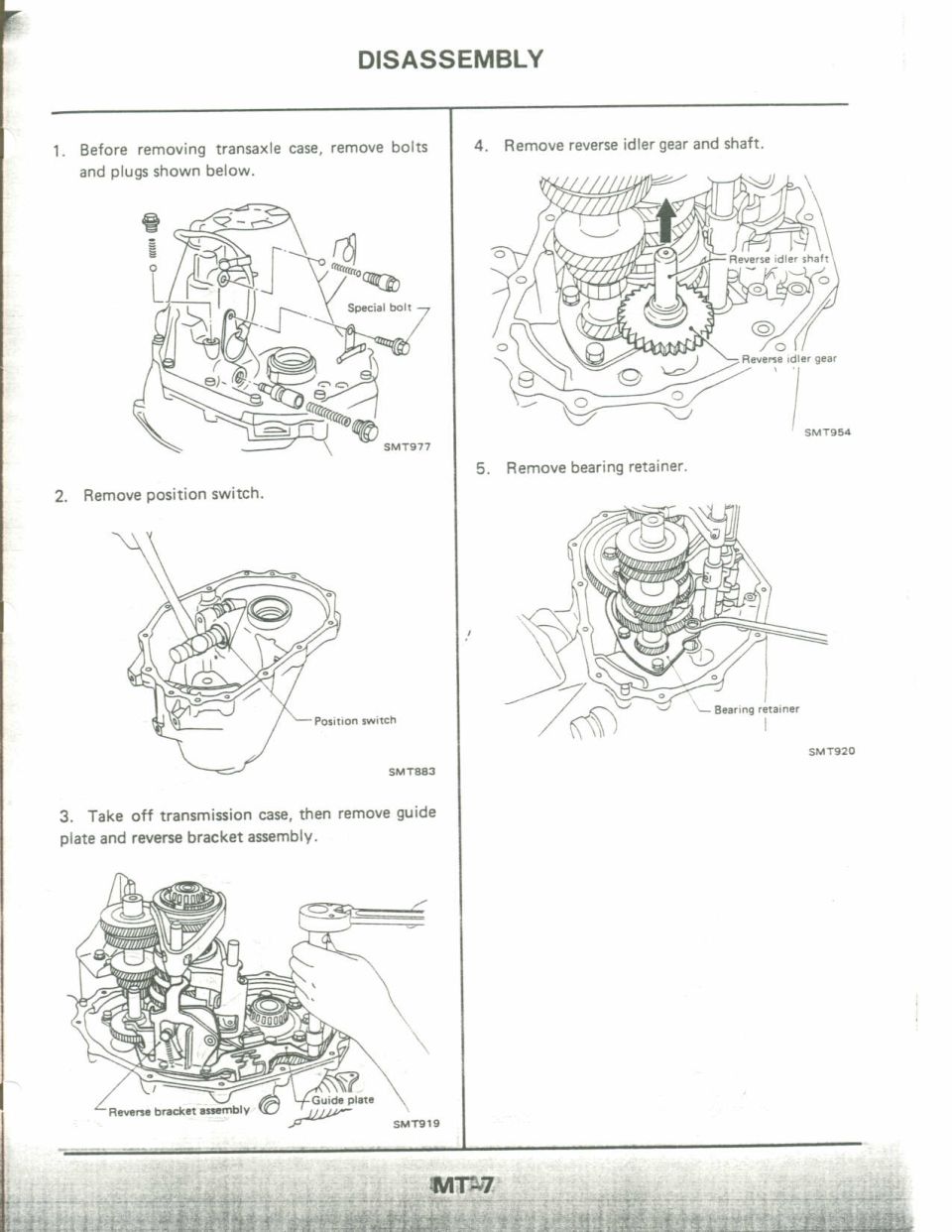

Service manual page MT-7 showing manual transaxle disassembly steps with labeled illustrations for case bolts, position switch and reverse idler gear.

AI caption · Photo 154 of 412

This document is page MT-7 from a Nissan factory service manual's Manual Transaxle (MT) section, covering the first five steps of transaxle disassembly. Step 1 instructs removal of bolts and plugs (including a labeled 'Special bolt') before removing the transaxle case, shown in illustration SMT977. Step 2 covers removal of the position switch (illustration SMT883). Step 3 describes taking off the transmission case and removing the guide plate and reverse bracket assembly (SMT919). Step 4 shows removal of the reverse idler gear and reverse idler shaft (SMT954). Step 5 covers removal of the bearing retainer (SMT920). Each step is accompanied by a detailed line-art exploded or in-situ illustration identifying the relevant components (special bolt, position switch, reverse bracket assembly, guide plate, reverse idler shaft/gear, and bearing retainer). The page contains no torque specifications, part numbers, or year/model applicability statements; it serves as the visual and procedural guide for beginning teardown of the manual transaxle. It was uploaded to a 1990 Nissan Micra gallery as part of a larger multi-page manual scan set.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What must be done before removing the transaxle case?
Before removing the transaxle case, remove the bolts and plugs shown in the illustration, including the special bolt (illustration SMT977).
When is the position switch removed during transaxle disassembly?
The position switch is removed in step 2, after the bolts and plugs are removed but before the transmission case is taken off (illustration SMT883).
What is removed along with the transmission case in step 3?
After taking off the transmission case, the guide plate and reverse bracket assembly are removed (illustration SMT919).
How are the reverse idler gear and shaft handled?
In step 4, the reverse idler gear and reverse idler shaft are removed; the illustration shows the shaft being pulled upward out of the case (SMT954).
What is the last step shown on this page?
Step 5: remove the bearing retainer, as shown in illustration SMT920.
