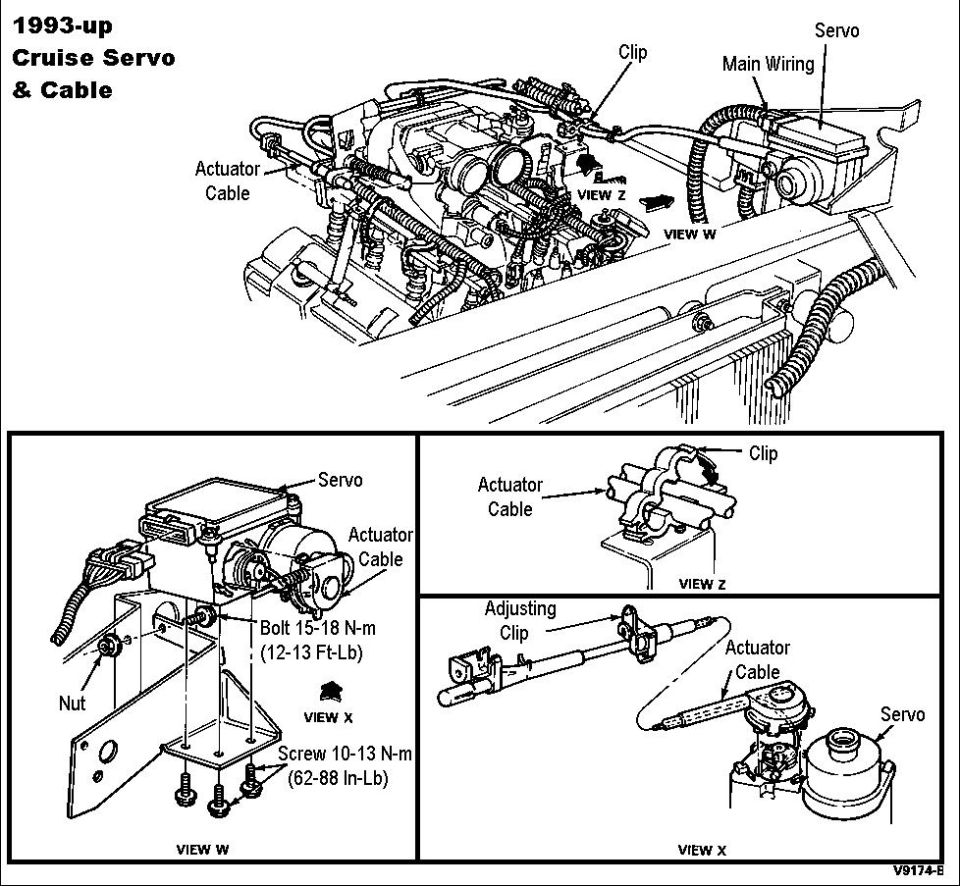

Diagram titled 1993-up Cruise Servo and Cable showing servo, act…

Cruise Servo 1993-03 (7.5L F450 shown; others similar)

.

Cable Adjustment
1. Remove cable retaining clip (9D726) from actuator cable at accelerator shaft bracket (9728 ).
2. Set throttle plate to closed position.
3. Pull on the actuator cable (away from the clip, toward the servo) to take up any slack. Back off at least one notch so that there is 1mm (.040 inch) of slack in the cable. The cable must not be pulled tight for proper operation.
4. While holding the cable, insert the retaining clip and snap securely.

.
