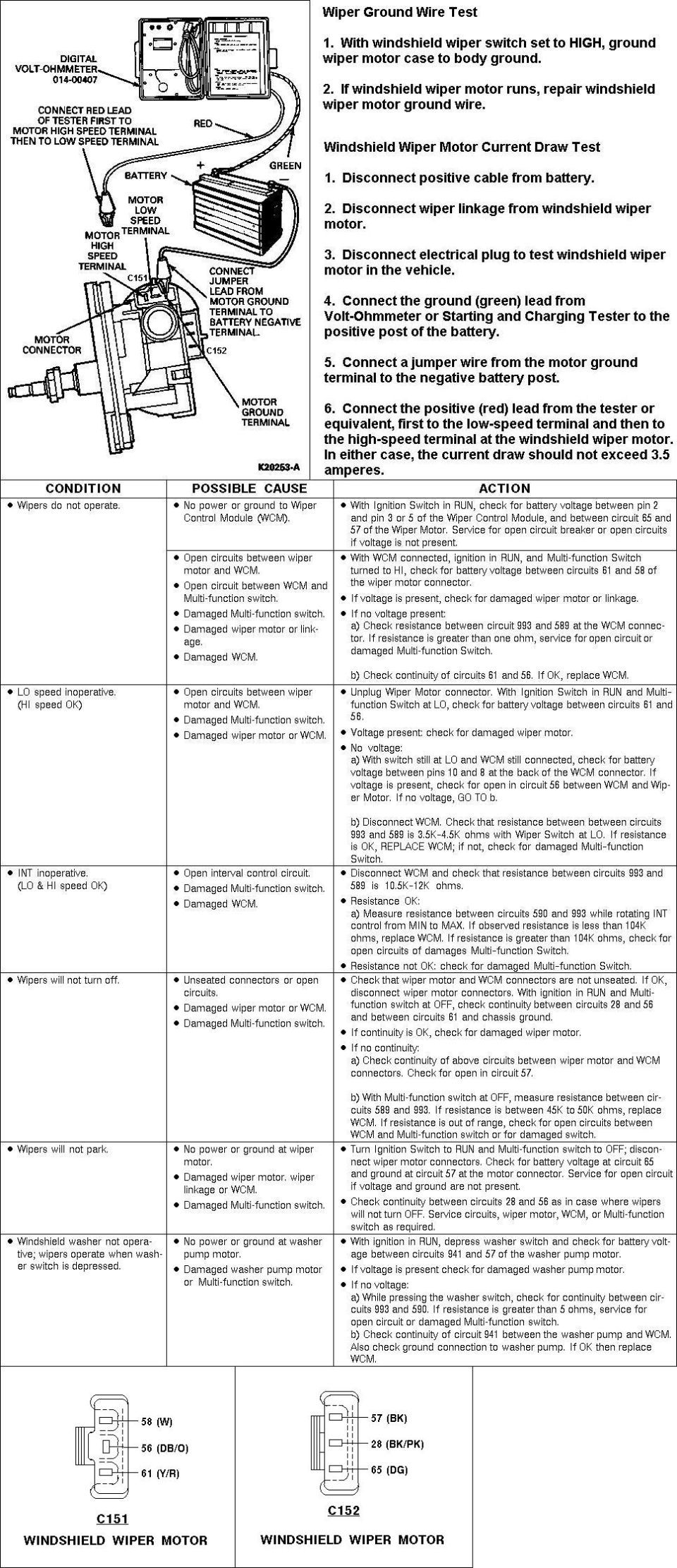

Wiper Motor Testing '92-up
IF THE IMAGE IS TOO SMALL, click it.
W - Lo
DB/O - Hi
Y/R - Ground (motor)
Bk - Ground (park)
Bk/Pk - Position
DG - Power (park)
NOTE: The ground wire test at the top is only for motors that DO NOT RUN normally.
The motor's peak draw should be less than 8.25A.
