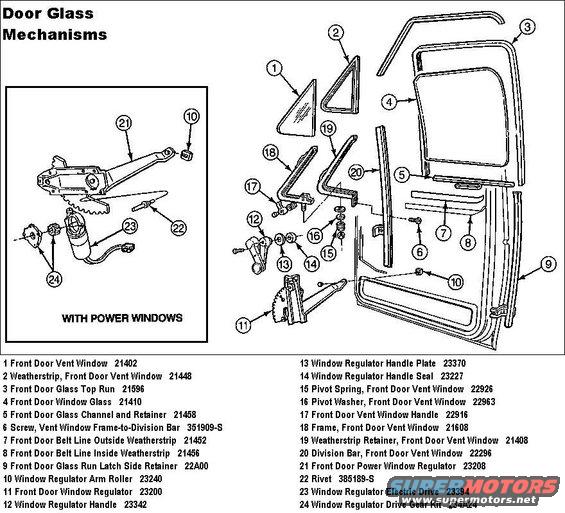

Door glass mechanisms exploded parts diagram with power window c…

Door Window Regulators & Vent

Note that the regulator (21) is attached by 4 rivets (22) which must be punched & drilled out. But the regulator does NOT need to be removed to access the motor (23). Its 3 bolts (5/16" 6-point head w/integral washer; 12-24x5/8") can be accessed after drilling or holesawing (1/2") the 2 dimples in the inner door skin which mark the 2 concealed screws' locations.

7 & 8 (weatherbelts) can be bought as a 4-piece set as:
'80-86 (E0TZ-1021457-A, E0TZ-1021456-A, E0TZ-1021453-A, E0TZ-1021452-A) Fairchild KF2001 or JBG 34386A
'87-96 (E9TZ-1521457-A, E9TZ-1521456-A, E7TZ-1521453-A, E7TZ-1521452-A) Generic, or Fairchild KF2005, or JBG 34388A

For motor repair, see these:
.

Door Panel Removal


The unidentified part above 2 & 3 might be the top of the door frame, or it might be the upper seal (20518 ).

.
