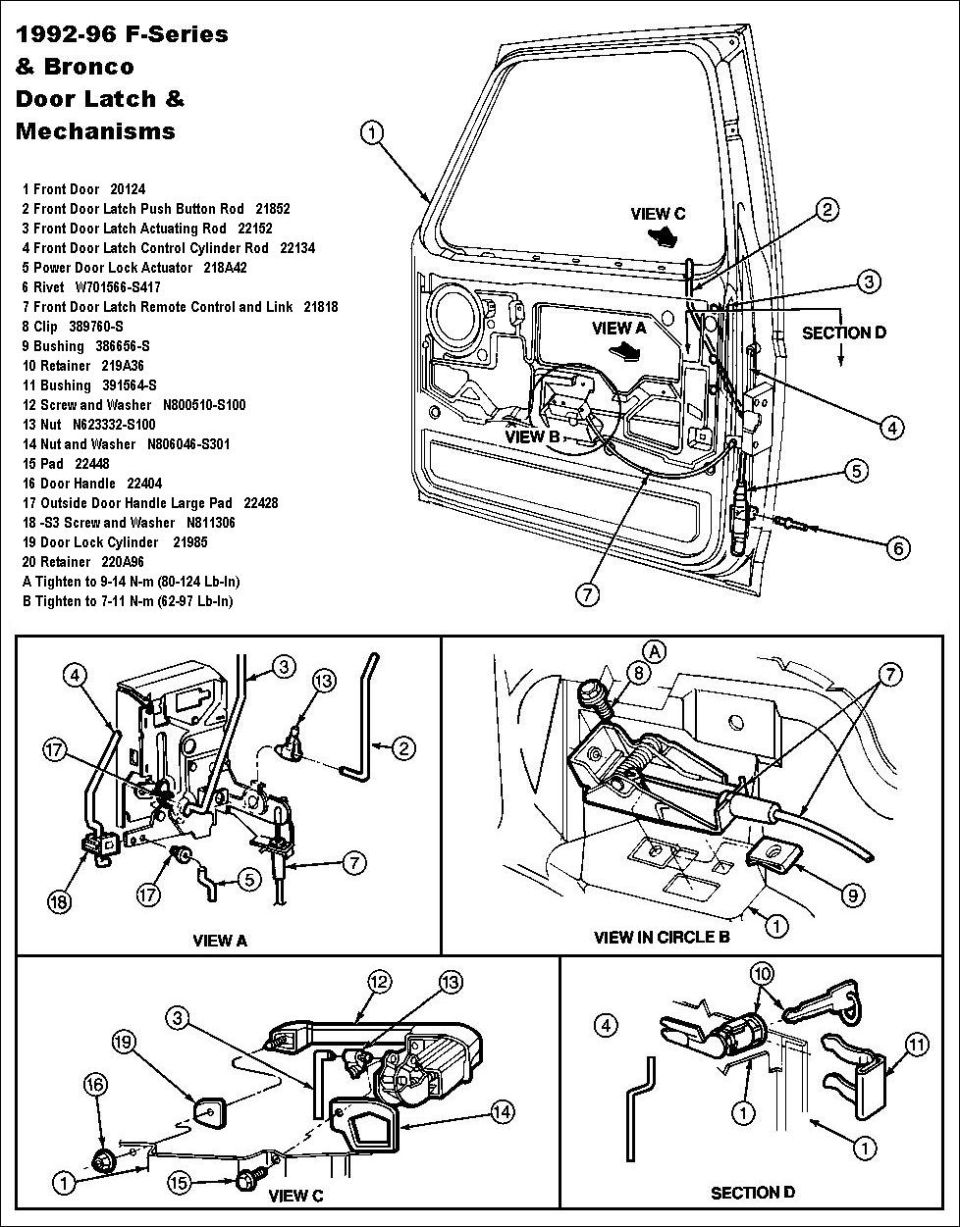

1992-96 Ford F-Series and Bronco door latch and mechanisms explo…

Door Latch '92 (it was revised in '93 with a rubber cover)
IF THE IMAGE IS TOO SMALL, click it.
ERROR: the descriptions & PNs for 8-20 are jumbled.
In section D, 4 refers to the Z-bent rod below it.
8 on the list is 13 in the diagrams
9 on the list is 17 in the diagrams D2VY-65219A38-B
10 on the list is 18 in the diagrams
11 on the list is not shown in the diagrams
12 on the list is 8 in the diagrams
13 on the list is 9 in the diagrams
14 on the list is 16 in the diagrams
15 on the list is 19 in the diagrams
16 on the list is 12 in the diagrams
17 on the list is 14 in the diagrams
18 on the list is 15 in the diagrams
19 on the list is 10 in the diagrams
20 on the list is 11 in the diagrams

Door skins:
Late '96-97 >8500GVWR (larger keyhole):
'95-early '96 (side impact):
'80-94: LHF F1TZ1520125A, F2TZ1520125B (FO1301106) ; RHF F1TZ1520124A, F2TZ1520124B (FO1301107)

For more info about the lever (F1LY6321970A) in Section D, see
http://www.supermotors.net/registry/5643/51416-2

For pics of a door being installed, see this album:
http://www.supermotors.net/registry/2742/66137-4

Door Panel Removal


Lock motor


The retainer clip (#11) for the lock cylinder is F58Z-1622023-AA (E9ZZ-6122023-A).

Latch Recall

Driver's latch/cable/remote F4TZ-15219A65-A
Passenger's latch/cable/remote F4TZ-15219A64-A
-----------------------------------------------------------------
TSB 91-08-04 LATCHES - DOOR - REPLACEMENT REQUIRED
Published 04/17/91

FORD:1985-88 EXP
1985-91 CROWN VICTORIA, ESCORT, MUSTANG, TEMPO, THUNDERBIRD
1986 LTD
1986-91 TAURUS
1988-91 FESTIVA
1989-91 PROBE
LINCOLN-MERCURY: 1985-87 LYNX
1985-91 CAPRI, CONTINENTAL, COUGAR, GRAND MARQUIS, MARK VII, TOPAZ, TOWN CAR
1986-91 SABLE
1987-91 TRACER
MERKUR: 1985-89 XR4TI 1988-89 SCORPIO
LIGHT TRUCK: 1985-90 BRONCO II
1985-91 AEROSTAR, BRONCO, ECONOLINE, F-150-350 SERIES, RANGER
1989-91 F SUPER DUTY
1991 EXPLORER
MEDIUM/HEAVY TRUCK: 1985-90 C SERIES
1985-91 CL-9000, F & B SERIES, L SERIES
1986-91 CARGO SERIES

ISSUE: Rework of door latches has been reported from Service Investigation Reports. This is unacceptable as it may affect proper latch function.

ACTION: Replace latches which function improperly and can not be adjusted.
WARNING: NEVER REWORK OR MODIFY A LATCH ASSEMBLY, ALWAYS REPLACE THE LATCH ASSEMBLY.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
