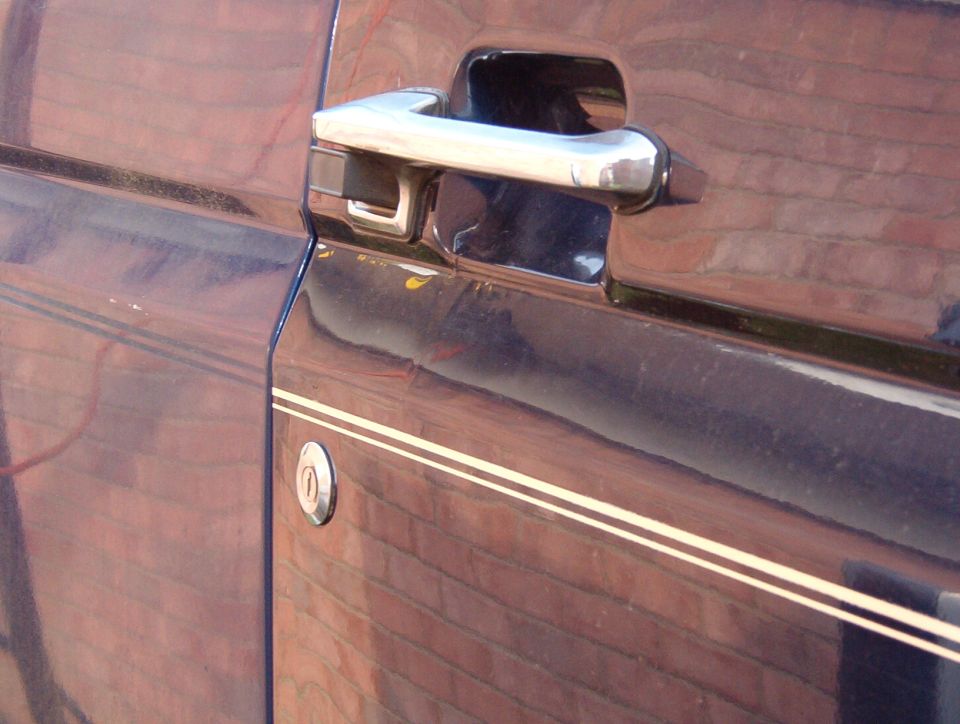

The first step is to align the strike bolt so the door bends are perfectly aligned with the body bends when it's fully closed. Striker bolt torque is 24-33lb-ft (33-45Nm). Check vertical alignment against the body lines, and horizontal alignment between the surface of the door & the surface of the body (flushness). Front-to-back alignment (spacing) isn't critical at this point.

For door alignment, see this post:
http://www.fourdoorbronco.com/board/showthread.php?6884-Door-Alignment

For pics of another door being installed, see this album:
http://www.supermotors.net/registry/2742/66137-4

Go to the NEXT pic...
