Where is the RABS module located on a 1992 Ford Bronco or F-series?

According to the diagram (View Z), the RABS module is located behind the dashboard/instrument panel, shown alongside the RABS test connector and PSOM test connector.

Where is the RABS sensor test connector on a 1992 F-series or Bronco?

The diagram states the sensor test connector is located on the LH (left-hand) fender apron in the engine compartment.

Where are the speed sensor and excitor ring located?

Section A of the diagram shows the speed sensor and excitor ring at the rear axle area of the chassis.

What warning lamps are part of the RABS system on these trucks?

The diagram identifies a yellow rear antilock warning lamp and a red brake warning lamp in the instrument cluster area.

What valve does the 1992 RABS system use and where is it?

It uses a dual solenoid electro-hydraulic valve, shown in View W mounted on the frame rail area of the chassis.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “The Bronco”/ Photo supermotors.net/registry/media/254886

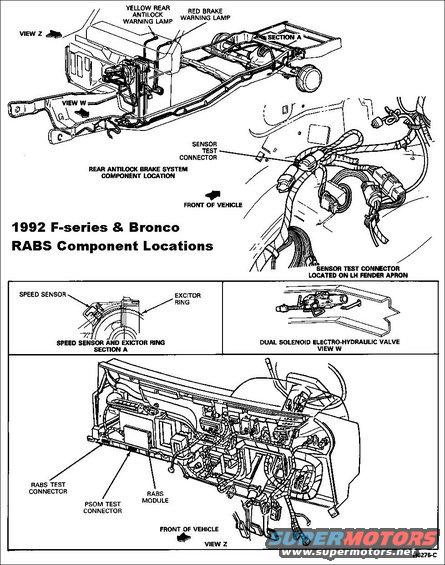

1992 Ford Bronco & F-Series RABS Component Location Diagram - Rear Antilock

1992 F-series and Bronco RABS component location illustrations

‹ ›

Service manual page showing rear antilock brake system (RABS) component locations for 1992 F-series and Bronco.

AI caption October 2005 · Photo 143 of 277

This document is a component location diagram for the Rear Antilock Brake System (RABS) on 1992 Ford F-series trucks and Broncos. The main illustration shows an overall chassis view labeled with the yellow rear antilock warning lamp, red brake warning lamp, the dual solenoid electro-hydraulic valve location (View W), and Section A at the rear axle. A separate detail shows the sensor test connector located on the left-hand (LH) fender apron in the engine compartment. Two inset views detail Section A — the speed sensor and excitor ring mounted at the rear axle — and View W, the dual solenoid electro-hydraulic valve. The lower illustration (View Z) shows the dashboard/instrument panel area from behind, identifying the locations of the RABS test connector, the PSOM (Programmable Speedometer/Odometer Module) test connector, and the RABS module behind the dash. Front-of-vehicle direction arrows orient each view. A reader can learn where every major RABS component is physically located on a 1992 F-series or Bronco: the speed sensor and excitor ring at the rear differential, the electro-hydraulic valve on the frame, the sensor test connector on the LH fender apron, and the module and diagnostic connectors behind the dash. Figure reference number H6276-C appears at the bottom.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the RABS module located on a 1992 Ford Bronco or F-series?: According to the diagram (View Z), the RABS module is located behind the dashboard/instrument panel, shown alongside the RABS test connector and PSOM test connector.
Where is the RABS sensor test connector on a 1992 F-series or Bronco?: The diagram states the sensor test connector is located on the LH (left-hand) fender apron in the engine compartment.
Where are the speed sensor and excitor ring located?: Section A of the diagram shows the speed sensor and excitor ring at the rear axle area of the chassis.
What warning lamps are part of the RABS system on these trucks?: The diagram identifies a yellow rear antilock warning lamp and a red brake warning lamp in the instrument cluster area.
What valve does the 1992 RABS system use and where is it?: It uses a dual solenoid electro-hydraulic valve, shown in View W mounted on the frame rail area of the chassis.
