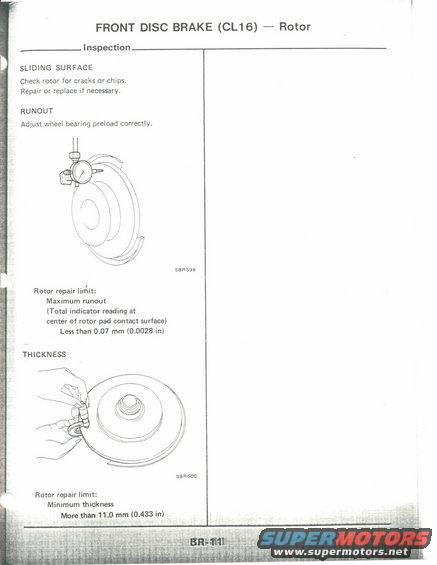

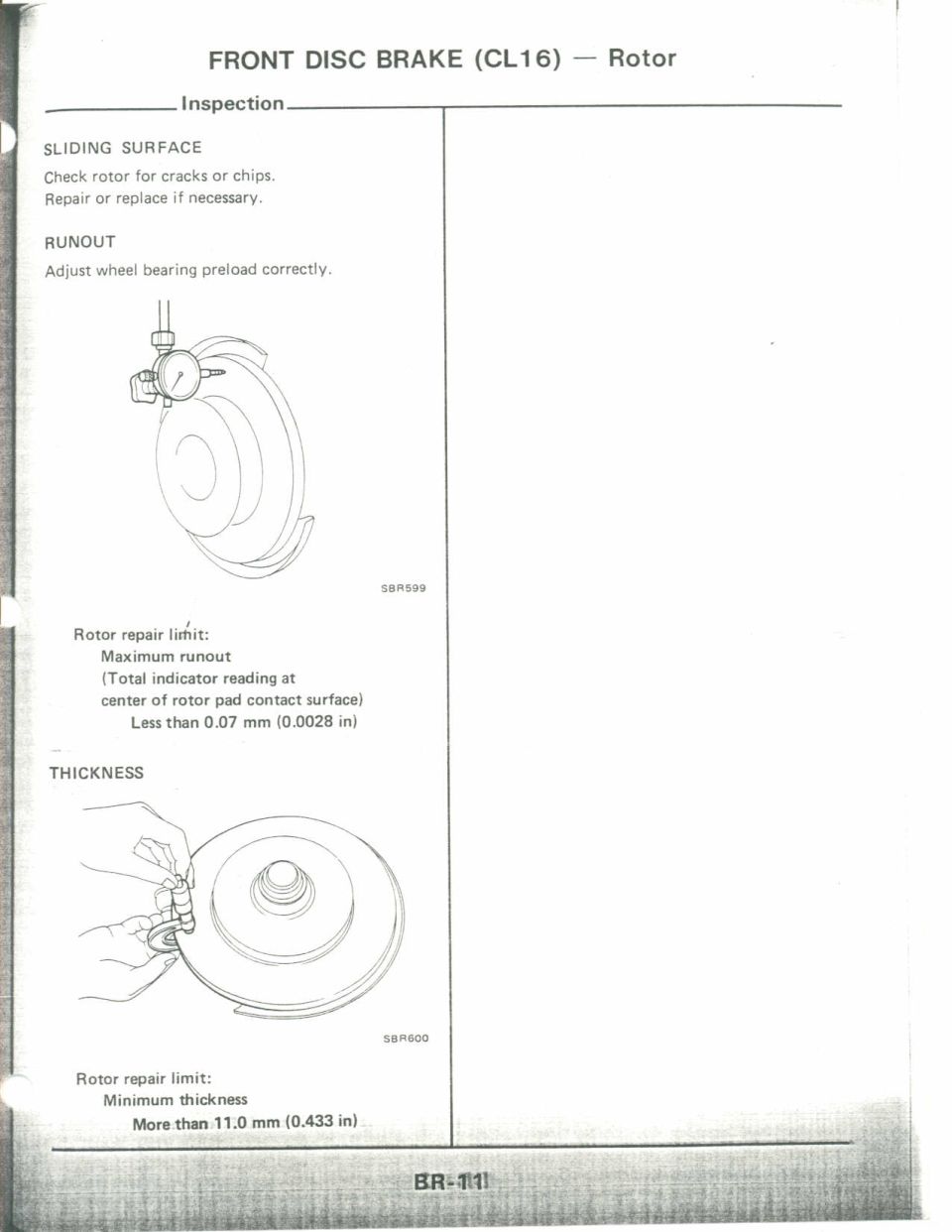

Scanned service manual page titled 'FRONT DISC BRAKE (CL16) — Rotor' showing inspection procedures for the rotor, including sliding surface, runout measurement with a dial indicator, and thickness measurement with a micrometer. Repair limits list max runout less than 0.07 mm and minimum thickness more than 11.0 mm.
FRONT DISC BRAKE (CL16) Rotor , Inspection SLIDING SURFACE Check rotor for cracks or chips. Repair or replace if necessary. RUNOUT Adjust wheel bearing preload correctly. senses Rotor repair linllit: Maximum runout (Total indicator reading at center of rotor pad contact surface) Less than 0.07 mm (0.0028 in) THICKNESS saasua Rotor repair limit: Minimum thidtness Morsxhan 11.0 mm (0.433 in)
