Nissan Micra Brake Pedal Exploded Diagram & Torque Specs - Service Manual BR-5

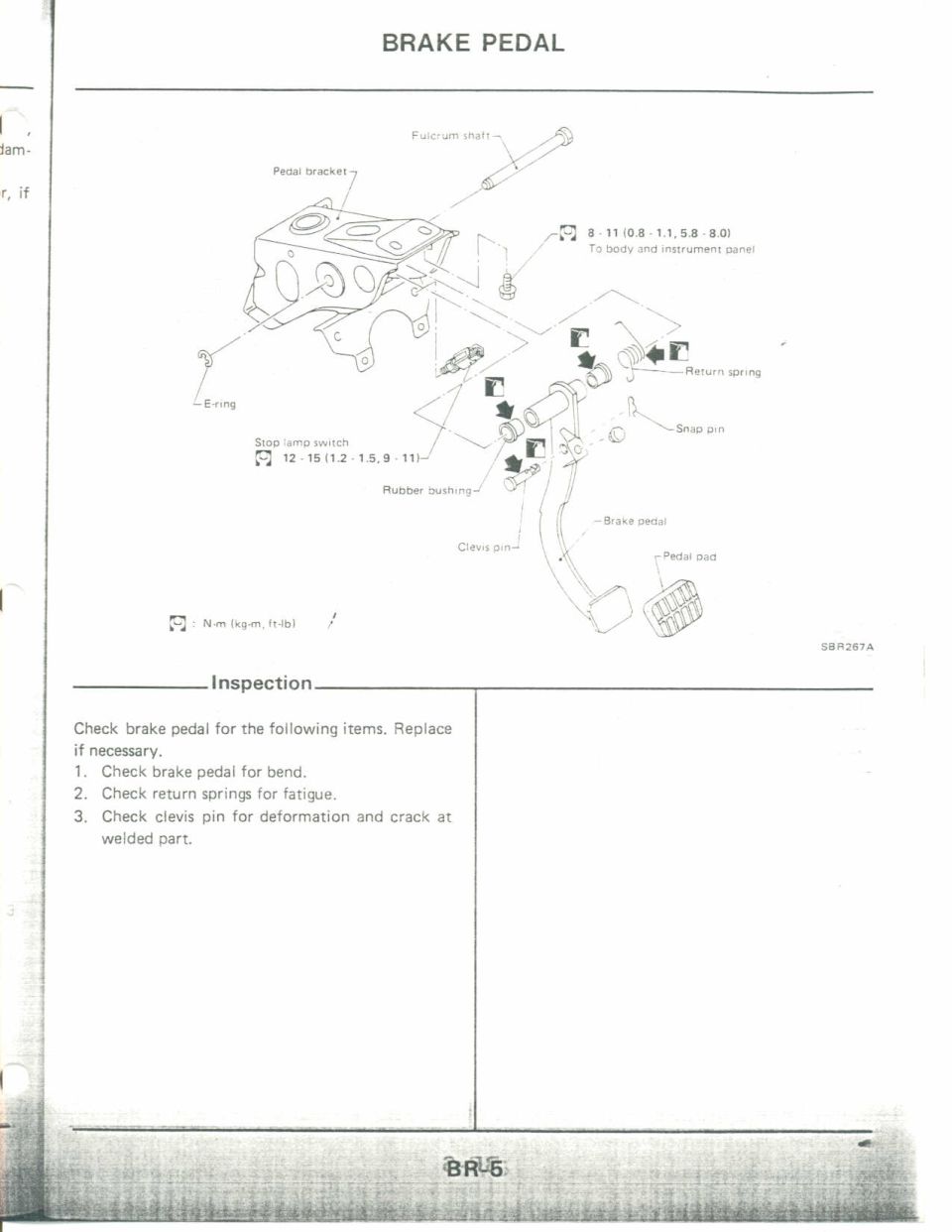

This is a scanned page (BR-5) from a Nissan service manual covering the brake pedal assembly. The top of the page presents an exploded parts diagram of the brake pedal and its mounting components, with labeled callouts for the fulcrum shaft, pedal bracket, E-ring, stop lamp switch, return spring, snap pin, rubber bushing, clevis pin, brake pedal, and pedal pad. Two torque specifications are given: the pedal bracket fasteners to the body and instrument panel are tightened to 8-11 N·m (0.8-1.1 kg-m, 5.8-8.0 ft-lb), and the stop lamp switch to 12-15 N·m (1.2-1.5 kg-m, 9-11 ft-lb). Lubrication points are indicated with grease symbols at the bushings and return spring contacts. The diagram carries the illustration reference SBR267A. Below the diagram, an 'Inspection' section instructs the reader to check the brake pedal for bend, check the return springs for fatigue, and check the clevis pin for deformation and cracking at the welded part, replacing components as necessary. The page was uploaded to a 1990 Nissan Micra gallery, though the page itself does not state model or year applicability.
