What is the minimum front brake pad thickness?

The pad wear limit minimum thickness is 2.0 mm (0.079 in).

What is the minimum front rotor thickness and maximum runout?

Rotor minimum thickness is more than 11.0 mm (0.433 in), maximum runout is less than 0.07 mm (0.0028 in), and maximum parallelism is less than 0.02 mm (0.0008 in).

What is the brake pedal free height specification?

190 - 200 mm (7.48 - 7.87 in) for manual transmission and 194 - 204 mm (7.64 - 8.03 in) for automatic transmission.

What is the rear brake drum inner diameter?

180 mm (7.09 in), with type LT18B rear brakes and a 15.87 mm (5/8 in) cylinder diameter.

What brake booster type is used and what is its leakage limit?

The brake booster type is M15; maximum vacuum leakage 15 seconds after the engine is stopped is 3.3 kPa (25 mmHg, 0.98 inHg).

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/266430

Nissan Micra Brake Specifications (S.D.S.) - Pad, Rotor & Pedal Specs BR-16

Brake system Service Data and Specifications: front CL16 caliper, rear LT18B, master cylinder, pedal specs

‹ ›

Brake SDS general specs and inspection limits. Front disc CL16 cylinder dia 45.0 mm, pad 32.0x10.0x94.0; rear drum LT18B 180 mm; M15 booster; rotor min thickness 11.0 mm; pad min 2.0 mm.

AI caption November 2005 · Photo 298 of 412

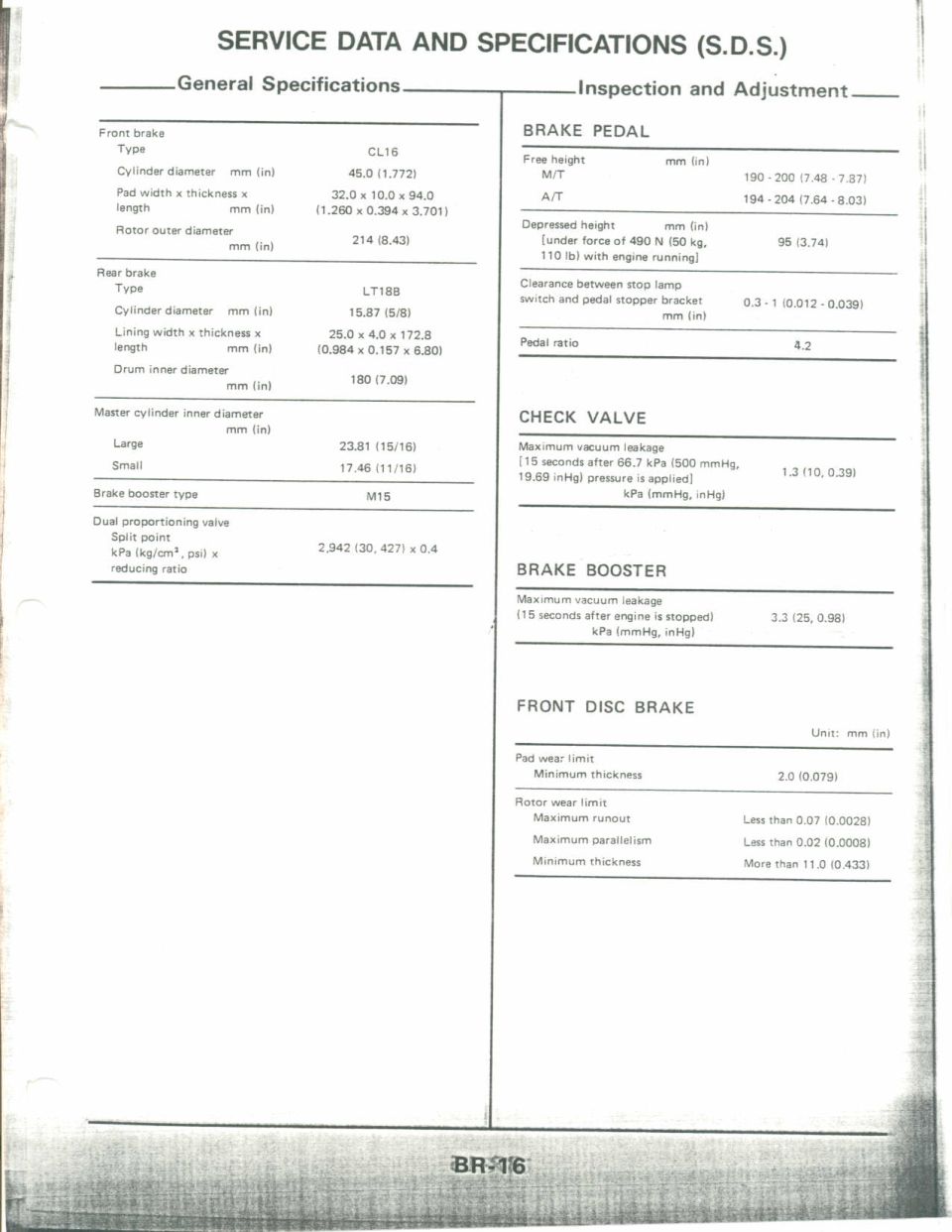

This is page BR-16 of a factory service manual, presenting Service Data and Specifications (S.D.S.) for the brake system. The General Specifications column lists the front brake as type CL16 with a 45.0 mm (1.772 in) cylinder diameter, 32.0 x 10.0 x 94.0 mm pads, and a 214 mm (8.43 in) rotor outer diameter; the rear brake is type LT18B with a 15.87 mm (5/8 in) cylinder, 25.0 x 4.0 x 172.8 mm linings, and a 180 mm (7.09 in) drum inner diameter. Master cylinder inner diameters are 23.81 mm (15/16) large and 17.46 mm (11/16) small; the brake booster is type M15, and the dual proportioning valve split point is 2,942 kPa (30 kg/cm², 427 psi) x 0.4 reducing ratio. The Inspection and Adjustment column gives brake pedal free height (190-200 mm M/T, 194-204 mm A/T), depressed height (95 mm under 490 N), stop lamp switch clearance (0.3-1 mm), pedal ratio (4.2), check valve and booster maximum vacuum leakage limits, and front disc brake wear limits: 2.0 mm minimum pad thickness, 0.07 mm max rotor runout, 0.02 mm max parallelism, and 11.0 mm minimum rotor thickness.
