Nissan Micra Front Disc Brake CL16 Caliper Exploded Diagram & Pad Replacement

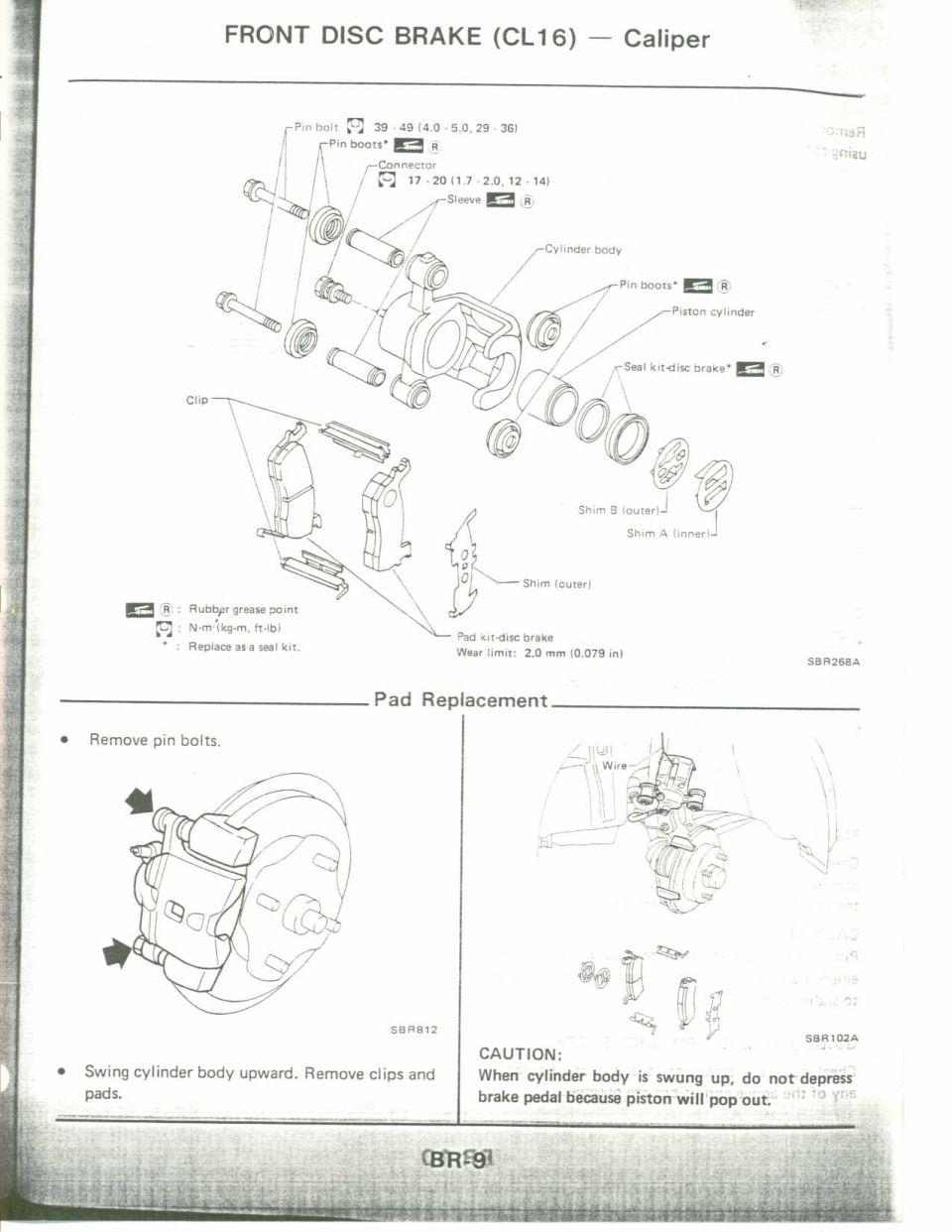

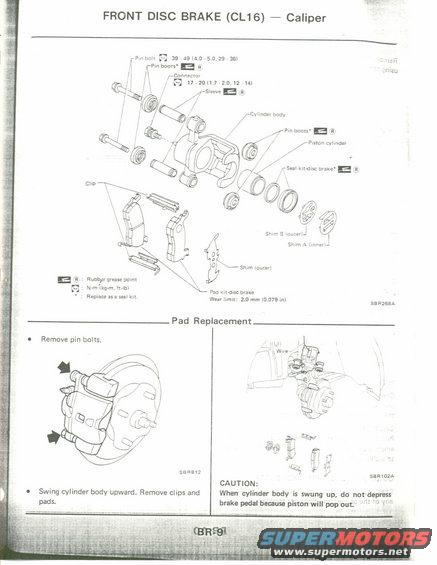

This service manual page covers the front disc brake caliper (type CL16), showing an exploded parts diagram and the pad replacement procedure. The exploded view identifies all caliper components: pin bolts, pin boots, connector, sleeve, cylinder body, piston cylinder, disc brake seal kit, clips, inner and outer shims (Shim A and Shim B), and the disc brake pad kit. Torque specifications are given for the pin bolts (39-49 N·m / 4.0-5.0 kg-m / 29-36 ft-lb) and the connector (17-20 N·m / 1.7-2.0 kg-m / 12-14 ft-lb). The pad wear limit is stated as 2.0 mm (0.079 in). A legend explains symbols for rubber grease points, torque units in N·m (kg-m, ft-lb), and parts marked with an asterisk that must be replaced as a seal kit. The pad replacement section instructs removing the pin bolts, swinging the cylinder body upward, and removing clips and pads, illustrated with two figures (SBR812 and SBR102A). A caution warns not to depress the brake pedal while the cylinder body is swung up, because the piston will pop out. The page is marked BR-9 from the brakes section of the manual.
