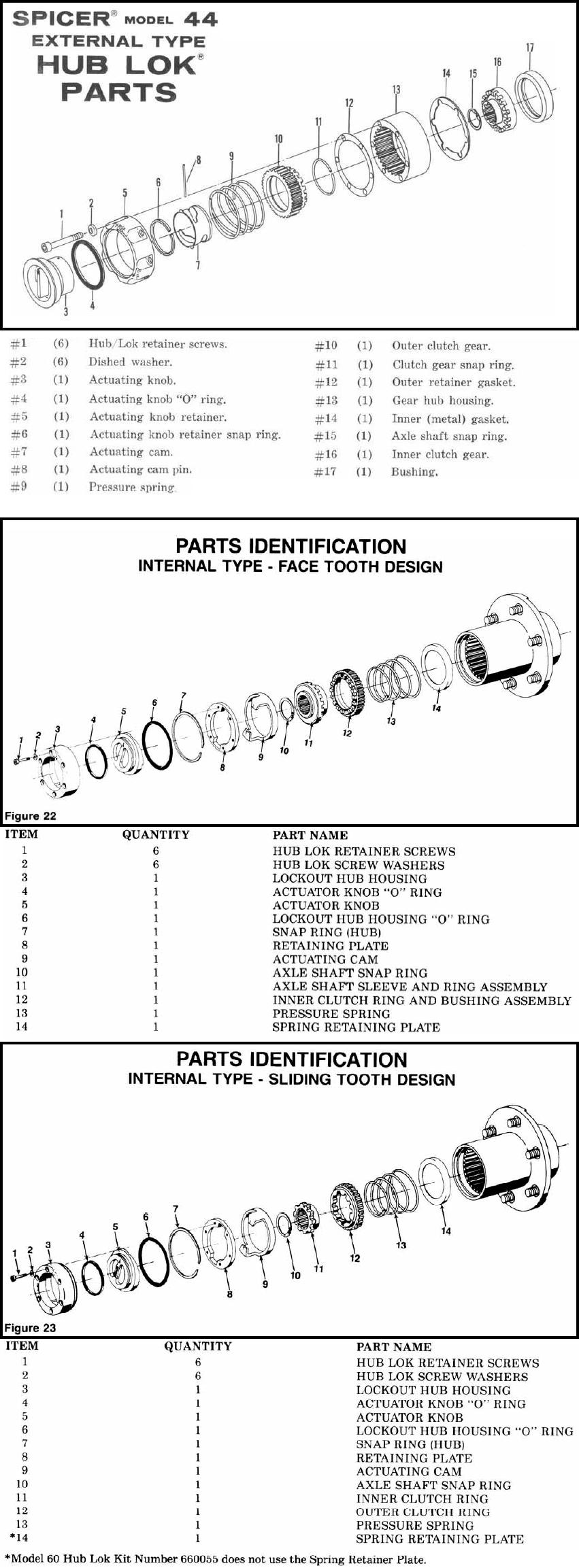

Spicer Model 44 Hub Lok parts identification diagram with explod…

Early Hub Lock Exploded Diagrams
IF THE IMAGE IS TOO SMALL, click it.

Excerpts from the Dana/Spicer hub lock service manual. http://www2.dana.com/pdf/5330.PDF
available from the Dana Axle Expert site's Librarian.
http://www2.dana.com/Expert/wc.dll?DSD~demenu~DEMENUA~

Before the small outboard snap ring can be installed, the stub shaft must be pushed fully outboard against the inner spindle seal by reaching behind the steering knuckle to the u-joint.
