Nissan Ignition System Wiring Diagram EL-30 - Coil, Distributor & Switch (SEL517D)

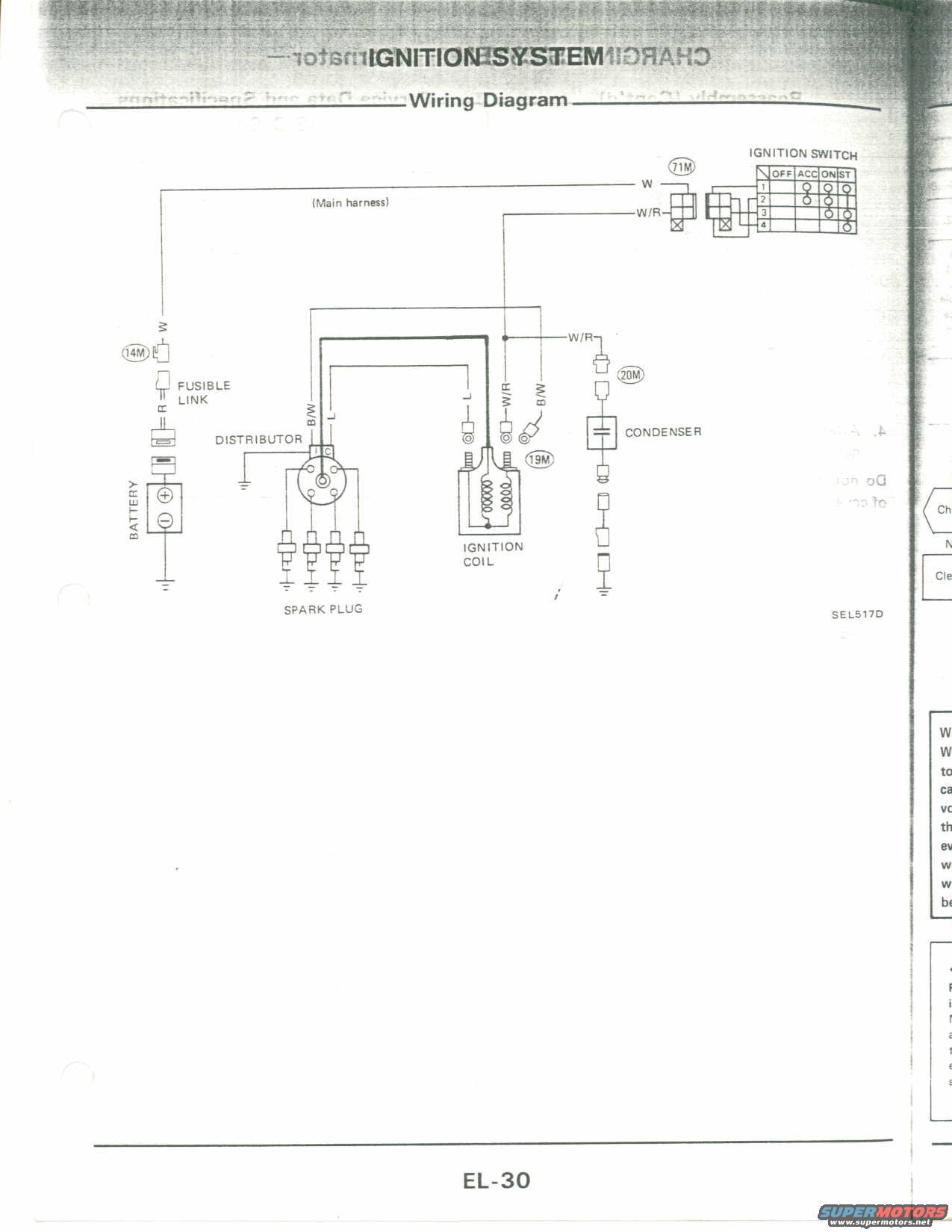

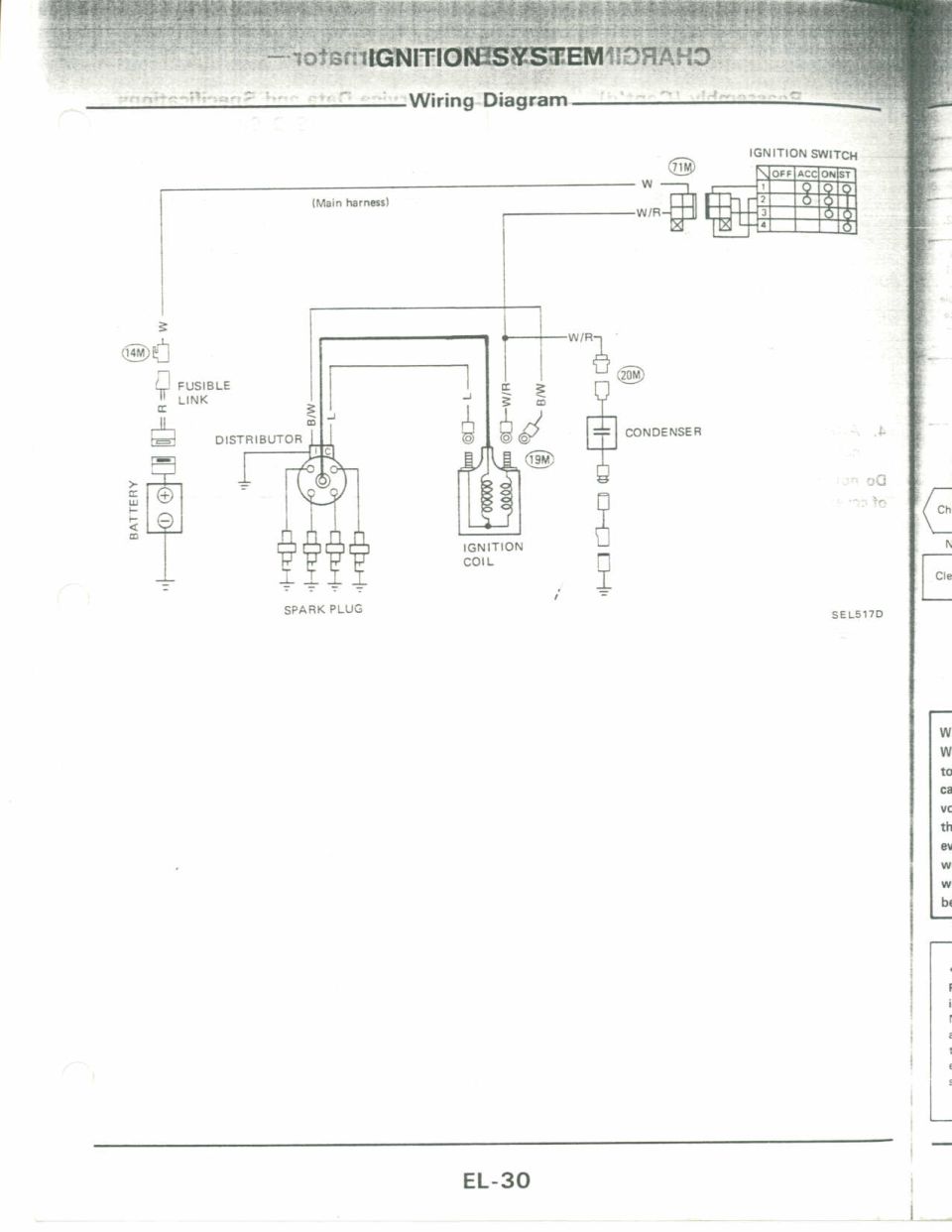

This is page EL-30 from a Nissan factory service manual (Electrical section), showing the Wiring Diagram for the Ignition System (figure code SEL517D). The diagram traces the ignition circuit from the battery through a fusible link (red wire) and white (W) wire to the ignition switch, then via a white/red (W/R) wire to the ignition coil and condenser. An ignition switch continuity table shows which of terminals 1–4 are connected in the OFF, ACC, ON, and ST key positions. The distributor connects to the ignition coil via blue (L) and black/white (B/W) wires, and the diagram shows four spark plugs fed from the distributor cap. Harness connector reference numbers 71M (ignition switch), 14M (battery area), 19M (ignition coil), and 20M (condenser) are marked. All grounds for the battery, distributor, coil, and condenser are indicated. This is a points/condenser-style ignition layout for a four-cylinder engine. A reader can learn the wire colors, connector IDs, ignition switch terminal logic, and overall circuit path needed to diagnose no-spark or ignition wiring problems. Text along the right margin is cut off and illegible.
