What fuse rating protects the tail/clearance lamp circuit in this diagram?

The diagram shows a 15A fuse in the fuse block feeding the combination (light) switch circuit for the clearance, license, tail and marker lamps.

What wire colors are used for the stop and back-up lamps?

The stop lamp circuit uses LG (from the stop lamp switch) and the back-up circuit uses R/L and Y wires, with B wires for ground at the rear combination lamps.

How does the back-up lamp circuit differ between manual and automatic transmissions?

M/T models use a back-up lamp switch (connector 25M, marked M), while A/T models use an inhibitor switch (connector 26M, marked A); both feed the same R/L wire to the rear combination lamp back-up bulbs.

Where does the high-mounted stop lamp get its power?

It is fed by an LG wire from the stop lamp circuit through connectors 90M/9B and 8B, with a B ground wire.

What connector numbers are shown for the rear combination lamps?

The rear combination lamp R.H. connects through connector 85M and the L.H. through connector 81M in both diagrams.

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/294106

Nissan Clearance, Tail, Stop & Back-up Lamp Wiring Diagram - EL-42

Clearance, License and Tail Lamp plus Stop and Back-up Lamp Wiring Diagrams (Nissan FSM EL-42)

‹ ›

Factory exterior-lighting wiring page: clearance/license/tail and side-marker lamp circuit plus stop and back-up lamp circuit with high-mounted stop lamp and A/T inhibitor / M/T back-up switch.

AI caption February 2006 · Photo 388 of 412

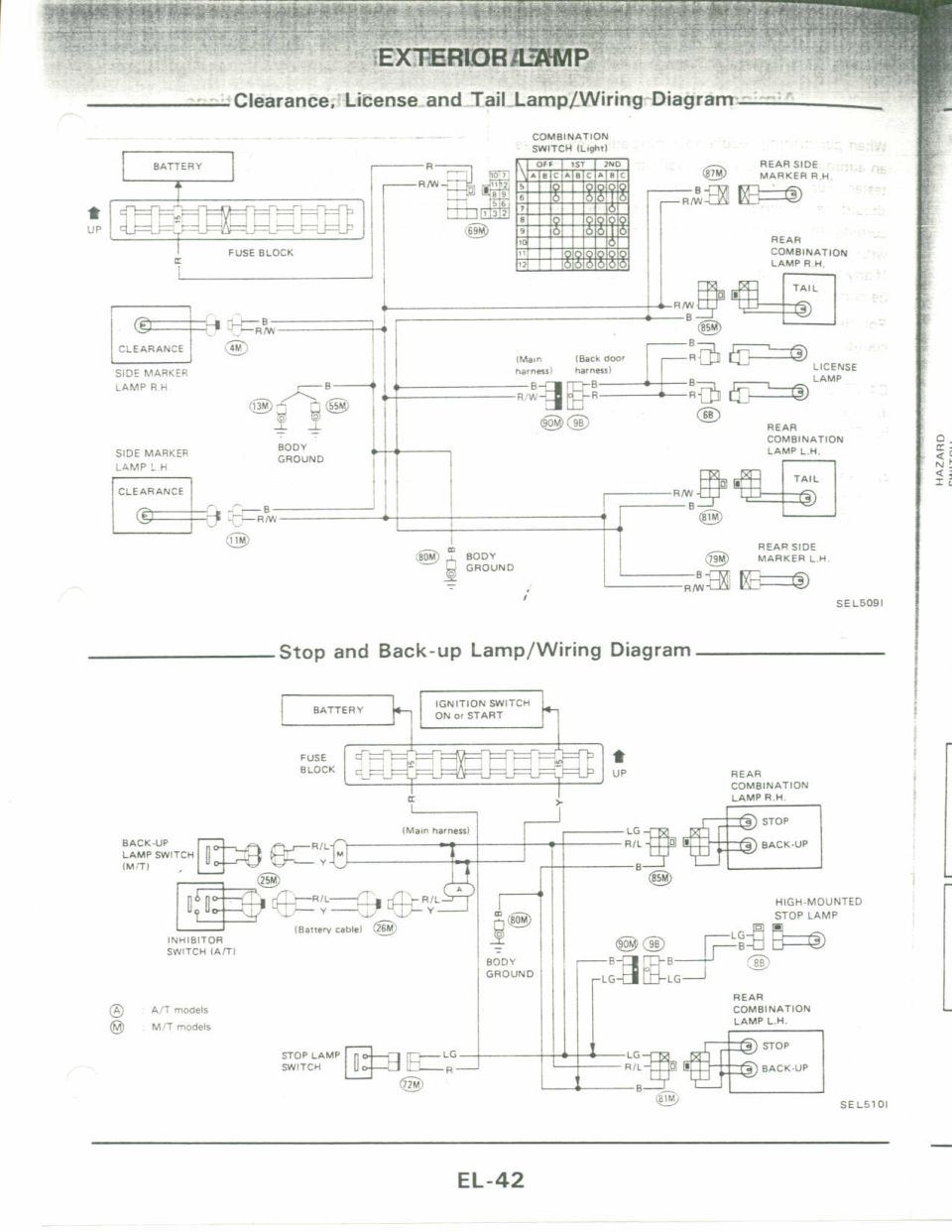

This is page EL-42 of a Nissan factory service manual, from the Exterior Lamp (EL) section, containing two wiring diagrams. The top diagram, 'Clearance, License and Tail Lamp/Wiring Diagram' (SEL509I), shows power flow from the battery through a 15A fuse in the fuse block to the combination (light) switch, then to the front clearance/side marker lamps (R.H. and L.H.), rear side marker lamps, rear combination tail lamps, and license lamps, including a combination switch contact table for OFF/1ST/2ND positions (terminals 5-12, contacts A/B/C). Wire colors shown include R, R/W, and B, with body grounds and connector numbers such as 4M, 11M, 13M, 55M, 69M, 79M, 80M, 81M, 85M, 87M, 90M, 9B, and 6B. The bottom diagram, 'Stop and Back-up Lamp/Wiring Diagram' (SEL510I), covers the stop lamp switch, back-up lamp switch (M/T), inhibitor switch (A/T), high-mounted stop lamp, and rear combination STOP/BACK-UP bulbs, fed via two 15A fuses from battery and ignition switch (ON or START), with wire colors LG, R/L, Y, R, and B and connectors 25M, 26M, 72M, 8B, 80M, 81M, 85M, 90M, 9B. A reader can trace tail, license, marker, stop and back-up lamp circuits and identify wire colors and connector locations.
