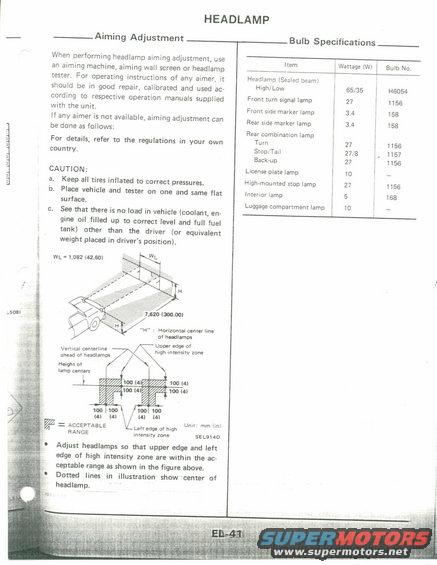

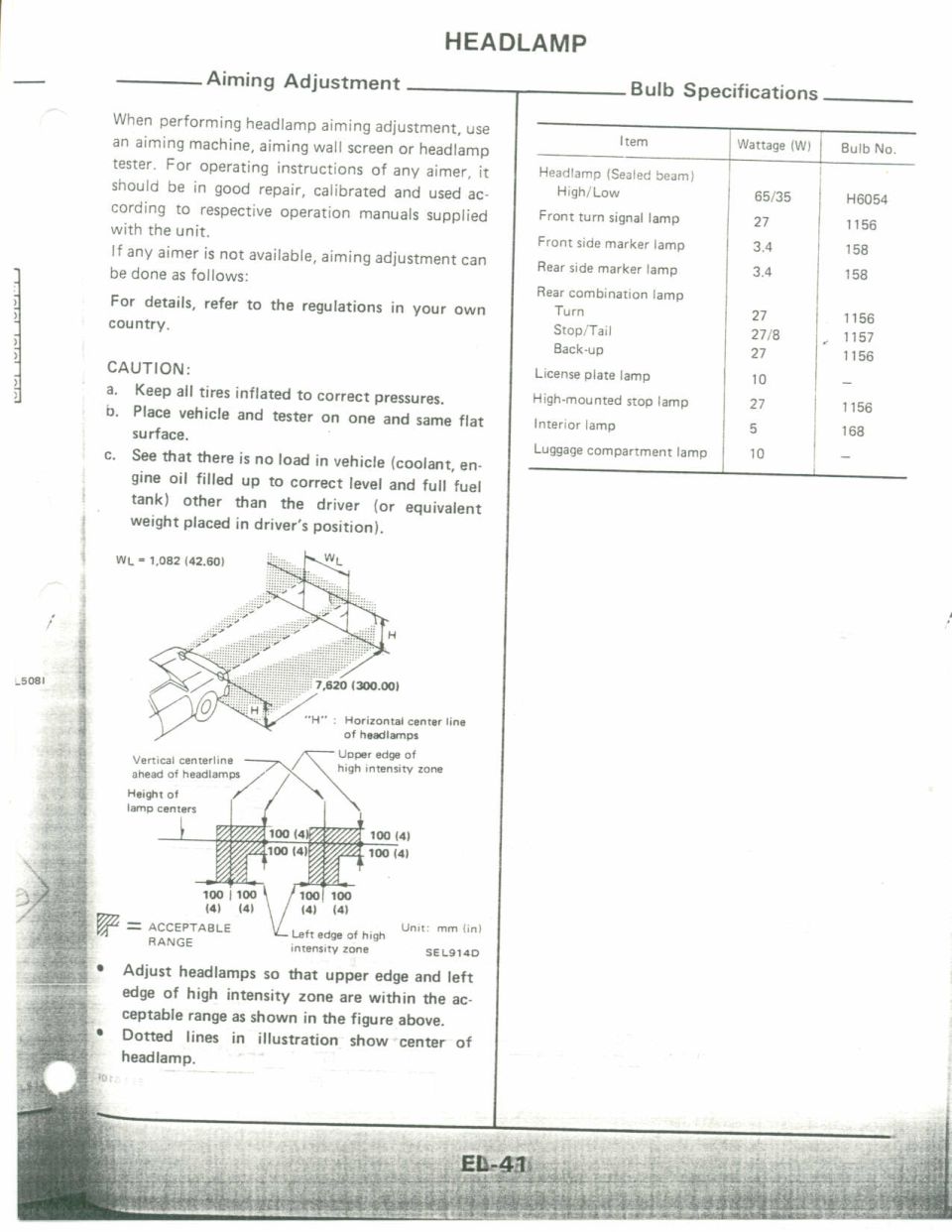

Service manual page on headlamp aiming adjustment with bulb spec…

HEADLAMP Aiming Adjustment When performing headlamp aiming adjustment, use an aiming machine, aiming wail screen or headlamp tester. For operating instructions of any aimer, it should be in good repair, calibrated and used ac cording to respective Operation manuals supplied with the unit. If any aimer is not available, aiming adjustment can be done as follows: For details, refer to the regulations in your own country, CAUTION: a. Keep all tires inflated to correct pressures. in. Place vehicle and tester on one and same flat surface. 9. See that there is no load in vehicle (coolant, en- gine oil filled up to correct level and full fuel tank) other than the driver (or equivalent weight placed in drivers position). WL I 1.082 (42.50) E i .508! i .620 (31).! "H . Horizonlll clntlr line ' oi hudlxnps ii . Upper adga of Venlcal cenmrllne high 2le Inn! - ahead of headlamps . ' Hliml of lamp cent": g i loo (4 100 (4) 4 a. mo (4) ton ial r, .- ' mo 1 we too too ' ul (A) in (II 5 = ACCEPTAELE Mud my" Unit: mm (in) RANGE intensity zone sELQMD Adjust headlamps so that upper edge and left edge of high intensity zone are within the ac- ceptable range as shown in the figure above. '- Dotted lines in illustration show center of y headlamp. Bulb Specifications ~ I tern Wattage (W) Bulb No. Headlamp (Sealed beami ; High/Low 65/35 H6054 Front turn signal lamp 27 1156 Front side marker lamp 3.4 158 Rear side marker lamp 3.4 158 Rear combination lamp Turn 27 1156 Stop/Tall 27/8 , 1157 Backup 27 1156 License plate lamp 1!) High-mou nted stop lamp 27 1156 interior lamp 5 168 Luggage compartment lamp 10
