What does fuse position 1 protect on the 1987 Ford F-250 fuse panel?

Fuse position 1 is a 15 amp fuse protecting the Stop/Hazard Lamps and Speed Control circuits.

What amperage is the heater/A/C blower fuse in this Ford truck fuse panel?

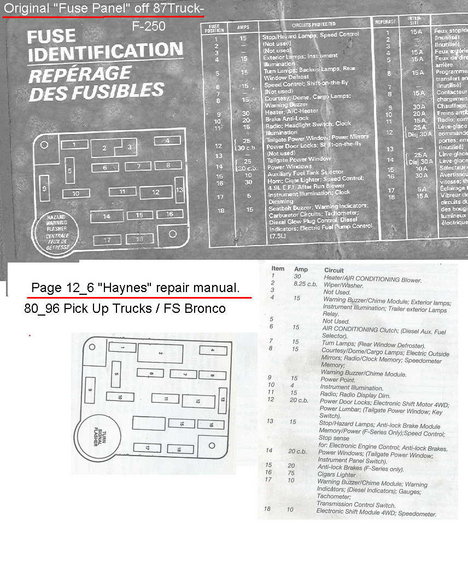

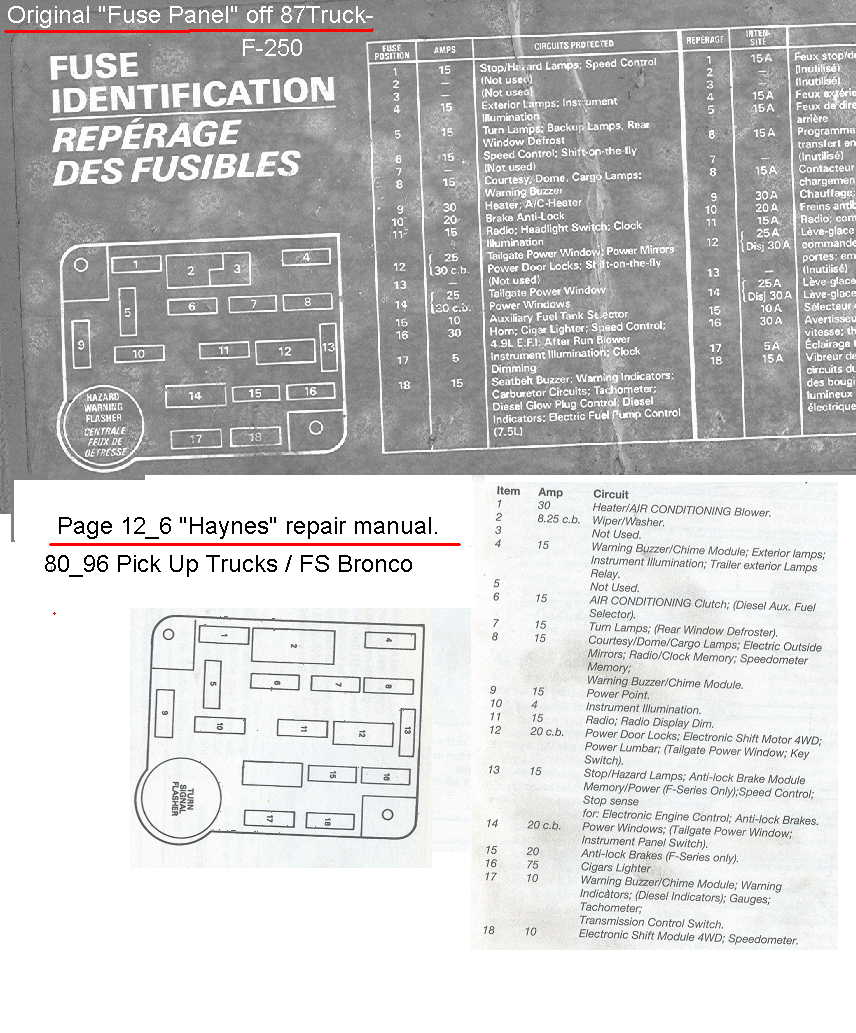

Both charts show it as 30 amps, position 9 on the original 1987 F-250 decal (Heater; A/C-Heater) and item 1 in the Haynes chart (Heater/Air Conditioning Blower).

Which fuse controls the power door locks on 1980-96 Ford trucks per the Haynes chart?

Item 12, a 20 amp circuit breaker, covers Power Door Locks, Electronic Shift Motor 4WD, Power Lumbar, and Tailgate Power Window/Key Switch.

Where is the hazard/turn signal flasher located on this fuse panel?

Both diagrams show a round flasher at the lower-left of the fuse panel: labeled 'Hazard Warning Flasher / Centrale Feux de Détresse' on the 1987 decal and 'Turn Signal Flasher' in the Haynes diagram.

What vehicles does the Haynes fuse chart in this scan cover?

It is from page 12_6 of a Haynes repair manual covering 1980-96 Ford Pick Up Trucks and full-size (FS) Bronco.
