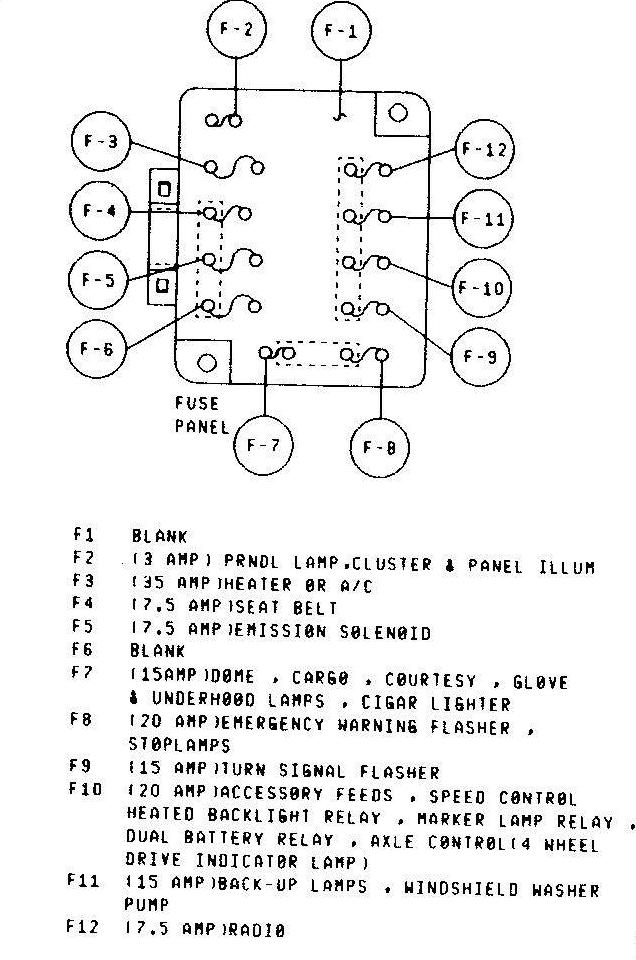

1979 Ford Bronco Fuse Panel Diagram - Fuse Positions F1-F12 & Amp Ratings

Fuse panel diagram with F1 through F12 positions and amperage legend

‹ ›

Fuse panel chart showing fuse positions F1-F12 with amperage ratings and the circuits each fuse protects.

AI caption April 2013 · Photo 63 of 104

This document is a fuse panel diagram and legend, uploaded as reference material for a 1979 Ford Bronco. The top portion shows a line drawing of the fuse panel with twelve fuse positions (F-1 through F-12) arranged around the block: F-1 and F-2 across the top, F-3 through F-6 down the left side, F-7 and F-8 along the bottom, and F-9 through F-12 up the right side. The lower portion is a legend listing each fuse position, its amperage, and the circuits it protects. F1 and F6 are blank (unused). Rated fuses include: F2 (3 amp) PRNDL lamp, cluster and panel illumination; F3 (35 amp) heater or A/C; F4 (7.5 amp) seat belt; F5 (7.5 amp) emission solenoid; F7 (15 amp) dome, cargo, courtesy, glove and underhood lamps, cigar lighter; F8 (20 amp) emergency warning flasher and stoplamps; F9 (15 amp) turn signal flasher; F10 (20 amp) accessory feeds, speed control, heated backlight relay, marker lamp relay, dual battery relay, axle control (4-wheel-drive indicator lamp); F11 (15 amp) back-up lamps and windshield washer pump; F12 (7.5 amp) radio. A reader can identify fuse locations, ratings, and protected circuits for troubleshooting electrical faults.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse controls the radio on this fuse panel?: F12, a 7.5 amp fuse, protects the radio.
Which fuse is for the heater or A/C?: F3, rated at 35 amps, covers the heater or A/C.
What does fuse F10 protect?: F10 (20 amp) covers accessory feeds, speed control, heated backlight relay, marker lamp relay, dual battery relay, and axle control (4 wheel drive indicator lamp).
Which fuse positions are unused?: F1 and F6 are listed as BLANK.
What fuse covers the stoplamps and emergency flasher?: F8, a 20 amp fuse, protects the emergency warning flasher and stoplamps.
