What is the firing order for the Ford 351C, 351M, and 400M engines?

The firing order is 1-3-7-2-6-5-4-8, as shown across the top of the diagram.

Which direction does the distributor rotate on the 351C/351M/400M?

The distributor rotates counter-clockwise, as stated on the diagram and shown by the curved arrow on the distributor cap.

How are the cylinders numbered on these Ford engines?

One bank is numbered 1-2-3-4 from front to rear, and the other bank is numbered 5-6-7-8 from front to rear, per the engine block diagram.

How are the spark plug wire terminals arranged on the distributor cap?

Going clockwise around the cap from the top: 1, 8, 4, 5, 6, 2, 7, 3. The wires are connected in firing order following the counter-clockwise rotor rotation.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ 1978 Ford Bronco/ Photo supermotors.net/registry/media/1106632

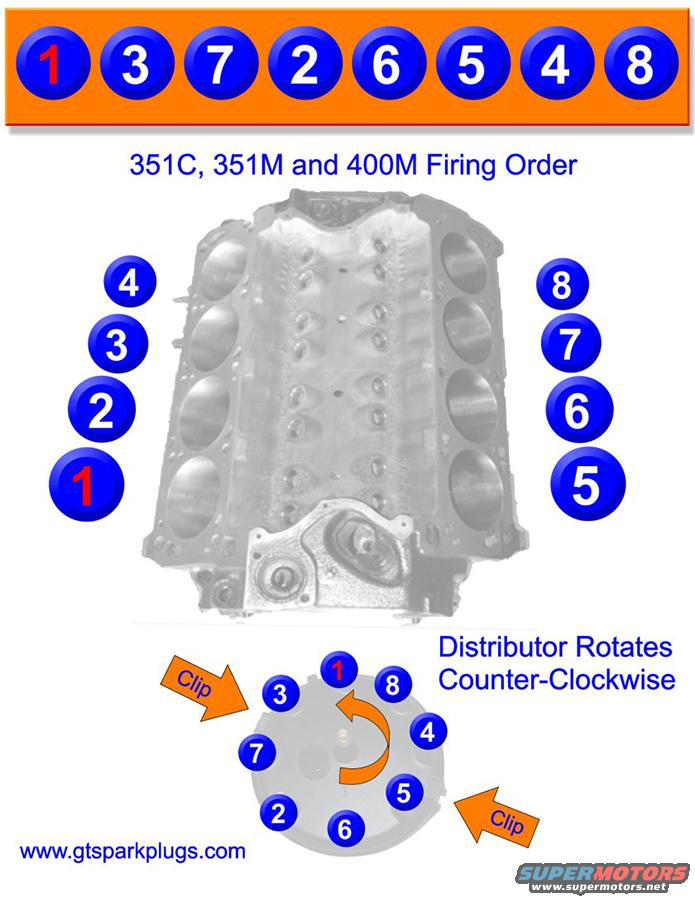

Ford 351C, 351M & 400M Firing Order Diagram 1-3-7-2-6-5-4-8 & Distributor Cap

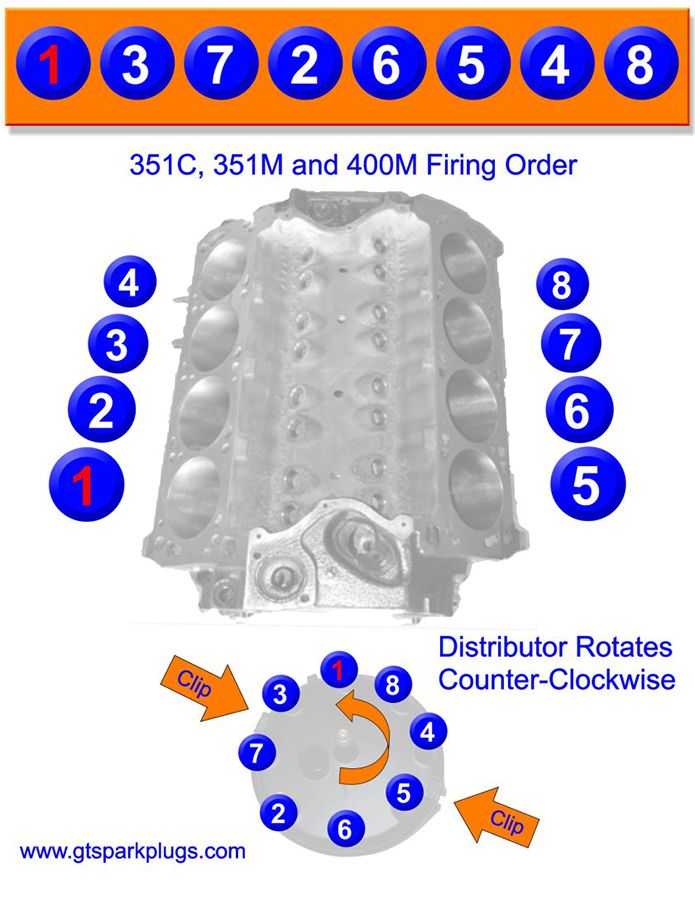

351C/351M/400M engine firing order diagram with cylinder numbering and distributor rotation

‹ ›

Firing-order schematic for Ford 351C, 351M and 400M V8 engines showing cylinder sequence 1-3-7-2-6-5-4-8 and counter-clockwise distributor rotation.

AI caption April 2017 · Photo 310 of 356

This document is a firing order reference diagram for Ford 351C (Cleveland), 351M, and 400M V8 engines, published by gtsparkplugs.com. The firing order is prominently displayed across the top as 1-3-7-2-6-5-4-8. Below the title is a top-down view of a V8 engine block with cylinder numbering: the left bank is numbered 1 through 4 (with cylinder 1 nearest the front) and the right bank is numbered 5 through 8 (cylinder 5 nearest the front). At the bottom, a distributor cap diagram shows the terminal positions for spark plug wires (1, 8, 4, 5, 6, 2, 7, 3 arranged around the cap) and notes that the distributor rotates counter-clockwise, with a curved arrow illustrating the rotation direction. Two orange "Clip" callouts with arrows indicate the locations of the distributor cap retaining clips, which help orient the cap correctly. A reader can use this diagram to correctly route spark plug wires from the distributor cap to the appropriate cylinders when performing a tune-up, distributor replacement, or diagnosing a no-start/misfire condition on these Ford engines. The 400M engine option was available in vehicles such as the uploader's 1978 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the firing order for the Ford 351C, 351M, and 400M engines?: The firing order is 1-3-7-2-6-5-4-8, as shown across the top of the diagram.
Which direction does the distributor rotate on the 351C/351M/400M?: The distributor rotates counter-clockwise, as stated on the diagram and shown by the curved arrow on the distributor cap.
How are the cylinders numbered on these Ford engines?: One bank is numbered 1-2-3-4 from front to rear, and the other bank is numbered 5-6-7-8 from front to rear, per the engine block diagram.
How are the spark plug wire terminals arranged on the distributor cap?: Going clockwise around the cap from the top: 1, 8, 4, 5, 6, 2, 7, 3. The wires are connected in firing order following the counter-clockwise rotor rotation.
