SHO 3.0L and 3.2L spec tables for camshaft lobe lift, piston dia…

SHO 3.0L and 3.2L spec tables for camshaft lobe lift, piston diameter, ring groove and piston pin
SHO 3.0L and 3.2L spec tables for camshaft lobe lift, piston diameter, ring groove and piston pinOriginal file
SHO 3.0L and 3.2L spec tables for camshaft lobe lift, piston diameter, ring groove and piston pin

Reference · 1992-1995 TaurusAll 37 manual pages

Piston ring, 3.2L piston, oil pump specs and 3.0L SHO drive belt tension table SHO 3.0L and 3.2L spec tables for camshaft lobe lift, piston diameter, ring groove and piston pin 1995 Taurus/Sable 3.0L/3.2L SHO engine specifications for bore, stroke, cylinder head, block and crankshaft Lubrication system spec table with oil pump clearances and 5.0 qt oil capacity Taurus/Sable front spring chart (-5310-) with spring tag codes and standard or heavy duty load/rate values Taurus/Sable rear spring chart (-5560-) with spring tag codes, load/rate values and sedan/wagon duty marks Lubrication system spec table with oil pump clearances and oil capacity EI (Low Data Rate) diagnostic harness pin voltage table for key on, cranking and idling Excess-Air Factor λ & Ignition Timing Effects on HC, NOx, CO Emissions - Manual Ignition function and timing text page with diagram of crankshaft and piston at advanced ignition Excess-air factor lambda text page with graphs of power, fuel consumption and exhaust emissions Mixture formation text page with torque curves for turbocharged vs naturally aspirated engines 37manual pages1992-1995 Ford Taurus More reference Ford Taurus 3.0L/3.0L SHO/3.8L Charging System Wiring Diagram (Alternator IAR)Wiring diagram 1993 Ford Taurus Data Test Connector Pinout - Self Test, Signal Return, Fuel PumpSpec plate 3.0L SHO accessory drive belt routing with generator, A/C compressor and idler pulley calloutsSchematic Ford AX4N/AX4S MLP Sensor (TRS) Test Procedure - C171 Pinout & Resistance ChartService procedure Ford Taurus 3.2L SHO Accessory Drive Belt Routing Diagram & Part NumbersExploded parts Ford Taurus / SHO ABS Module 55-Pin Connector Pinout - Circuits & Wire ColorsFuse chart Ford SHO 3.0L/3.2L V6 Engine Specs - Valve, Camshaft, Rod & Bearing ClearancesTorque spec 2013 Ford Taurus SHO w/Performance Pkg specification table with price, engine and test resultsBrochure Aluminum H-Brace Fabrication Blueprint - 1993 Ford Taurus DIY Brace DrawingBlueprint

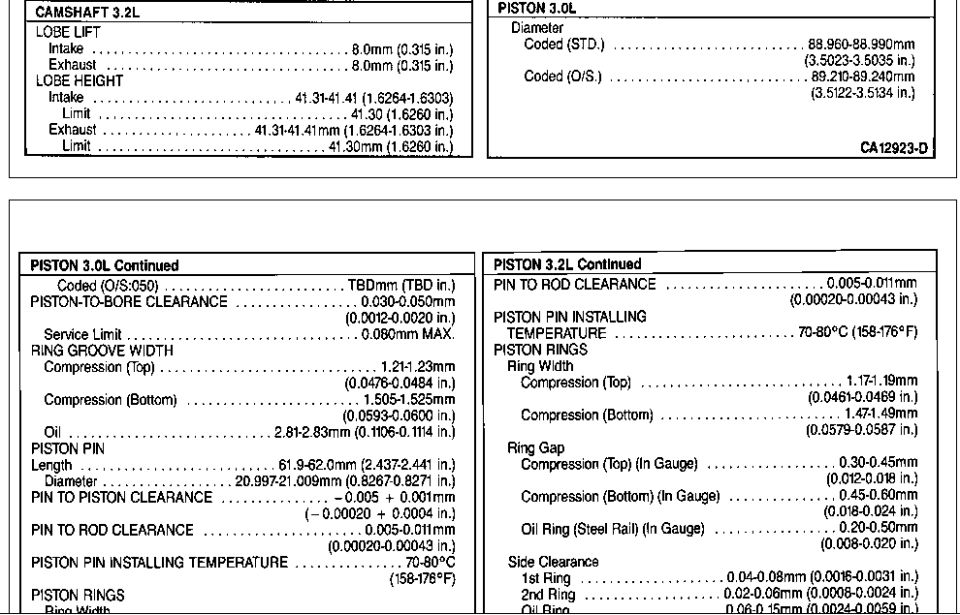

Spec tables for 3.2L camshaft lobe lift and height and 3.0L/3.2L pistons, including piston-to-bore clearance, ring groove width, pin and ring clearances.

Part of 1992-1995 Ford Taurus Manual Pages
