Ford Taurus 3.0L V6 Spark Plug Wire & Coil Pack Routing Diagram (1993)

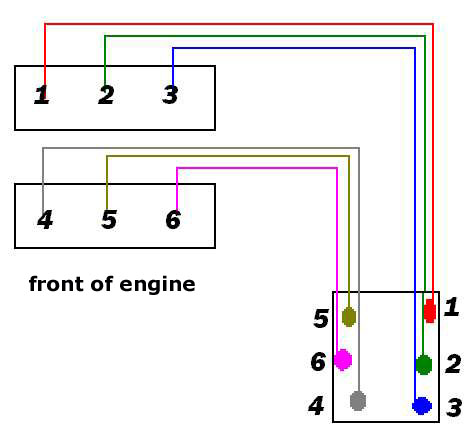

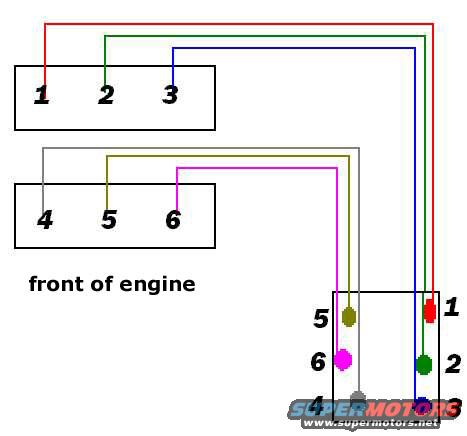

This document is a simple color-coded spark plug wire routing diagram for a V6 engine with a distributorless ignition (coil pack) system. It shows two cylinder banks: the rear bank containing cylinders 1, 2, and 3, and the front bank (nearest the 'front of engine' label) containing cylinders 4, 5, and 6. At the lower right is the coil pack, drawn with six towers: terminals 5, 6, and 4 on the left side (top to bottom) and terminals 1, 2, and 3 on the right side (top to bottom). Colored lines trace which coil tower connects to which cylinder: cylinder 1 to coil terminal 1 (red), cylinder 2 to terminal 2 (green), cylinder 3 to terminal 3 (blue), cylinder 4 to terminal 4 (gray), cylinder 5 to terminal 5 (olive/dark yellow), and cylinder 6 to terminal 6 (magenta). A reader can use this diagram to correctly route spark plug wires from each coil pack tower to its corresponding cylinder, which is useful when replacing plug wires or diagnosing a misfire caused by crossed wires. The document was uploaded to a 1993 Ford Taurus gallery, though it contains no explicit vehicle or year identification.
