1968-82 Chevy Corvette Inner Skirt Diagram - Skirt Seals & A-Arm Dust Shield

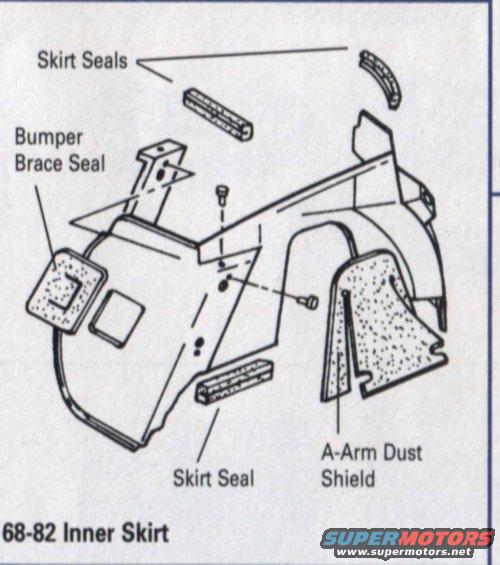

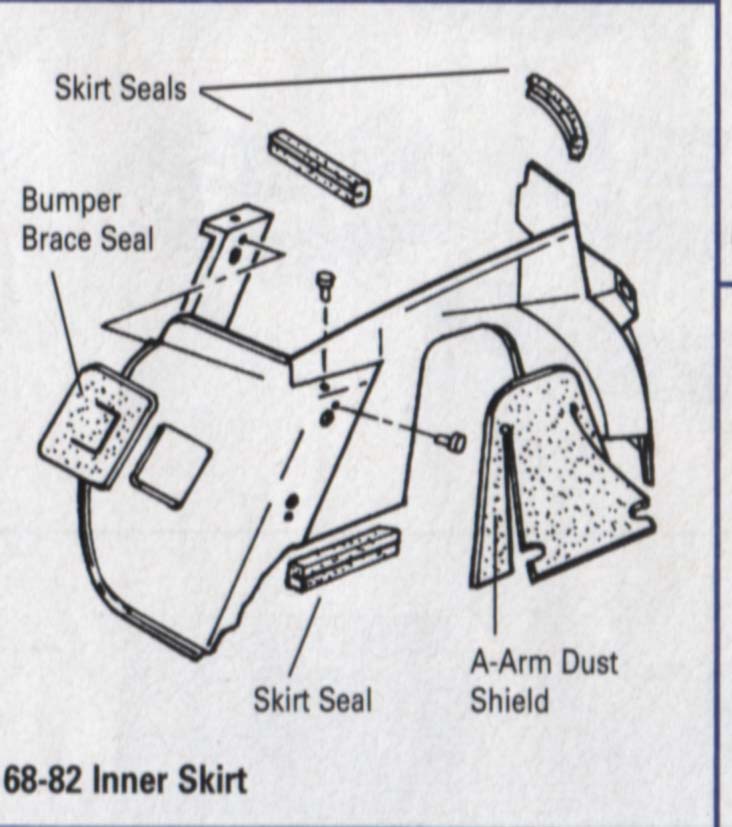

This document is a black-and-white exploded parts diagram labeled "68-82 Inner Skirt," showing the inner fender skirt assembly for 1968-1982 Chevrolet Corvettes. The illustration depicts the inner skirt panel (inner fender) in an exploded view with associated seal and shield components floating away from their installed positions. Labeled components include the "Skirt Seals" (two seals shown at the top — one straight ribbed strip and one curved arc-shaped seal), the "Bumper Brace Seal" (a square pad-style seal with a square cutout at the front of the skirt), an additional "Skirt Seal" (a straight ribbed strip along the lower edge), and the "A-Arm Dust Shield" (a textured shield fitting inside the wheel opening area). Fastener hardware such as screws/bolts is illustrated with dashed alignment lines showing installation points, though no part numbers, torque values, or quantities are printed on the page. A reader can learn the relative locations and shapes of the seals and dust shield that attach to the inner skirt, which is useful when restoring or reassembling the front inner fender area of a C3 Corvette. The diagram carries no additional text, legend, or table beyond the five callout labels and the caption.
