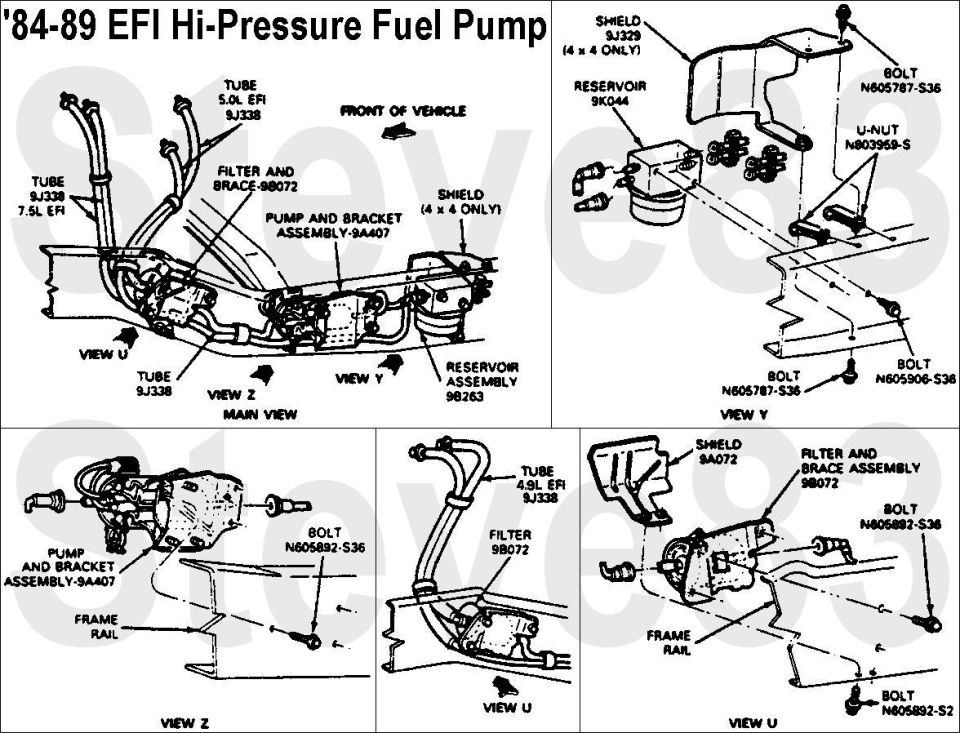

1984-89 EFI high-pressure fuel pump assembly diagram with part n…

Hi-Pressure Fuel Pump, Filter, & Dual-Function Reservoir F1UZ-9B263-B for '84-89 EFI
IF THE IMAGE IS TOO SMALL, click it.



NOTE: The frame mounted fuel filter was repositioned to between the fuel pump and engine in February, 1986.

To permanently eliminate the reservoir, use these Dorman fuel tubes.
