C185 gray PCM connector pinout for gasoline engines with pin 1-4…

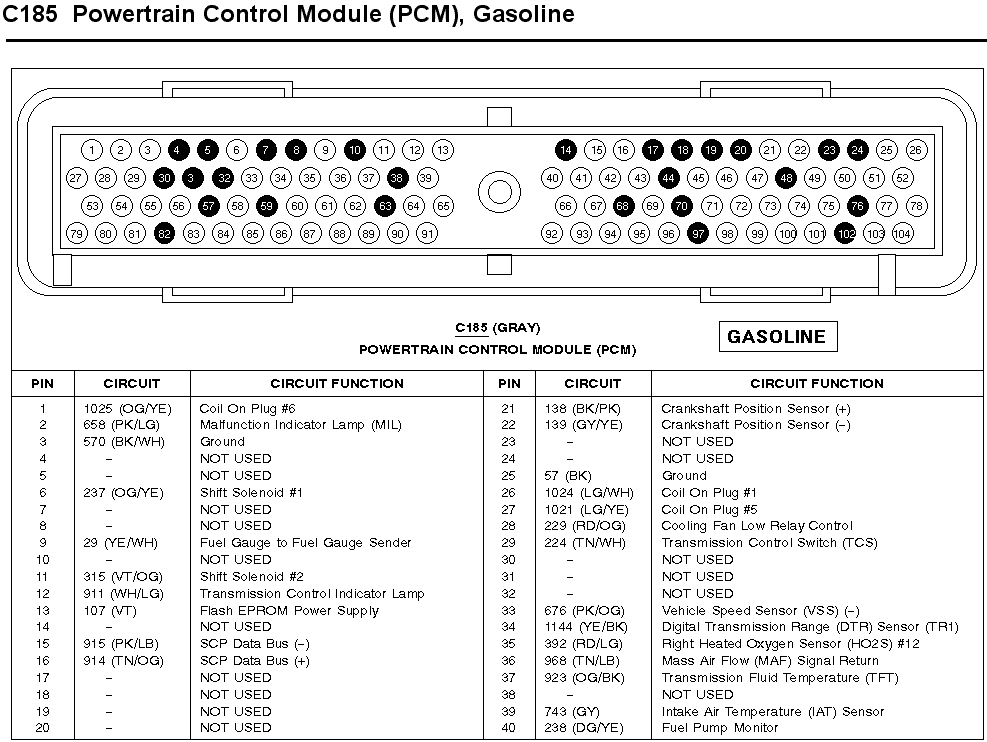

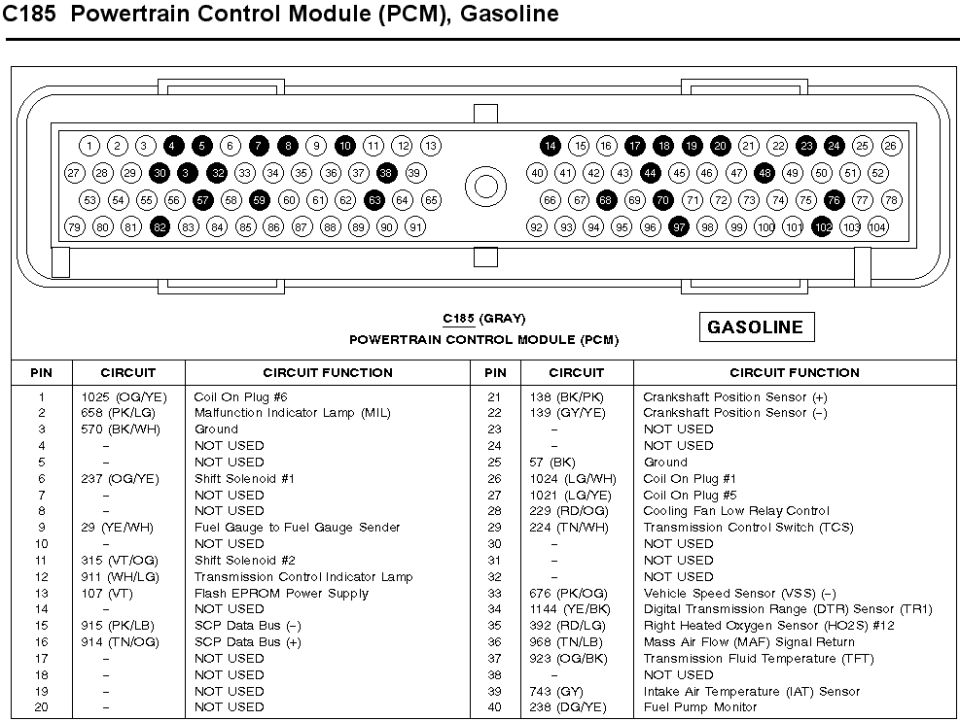

C185 gray PCM connector pinout for gasoline engines with pin 1-40 circuit and function table
C185 gray PCM connector pinout for gasoline engines with pin 1-40 circuit and function tableOriginal file
C185 gray PCM connector pinout for gasoline engines with pin 1-40 circuit and function table

Reference · 1989-1997 CougarAll 25 wiring diagrams

Ford Fuse 2, 6 & 15 Power Distribution Wiring Diagram - Circuits 65, 296, 640 Ford C251 Instrument Cluster Connector Pinout - 16-Pin Wiring Diagram C250 Instrument Cluster Connector Pinout - 16-Pin Wiring Diagram & Functions C185 gray PCM connector pinout for gasoline engines with pin 1-40 circuit and function table 1997 Mercury Cougar PATS Transceiver Module Wiring Diagram - Fuse 12, C209 Ford/Mercury Instrument Cluster Wiring Diagram 63-3: SCP, PATS, Brake Warning Ford Thunderbird/Cougar, Ranger, Explorer IAT & ECT Sensor Connector Pinout 1996 Ford/Mercury Cooling Fan Wiring Diagram - CCRM, EDF/HEDF Relays & PCM 25wiring diagrams1989-1997 Mercury Cougar More reference PATS Configuration Command Index table listing HEC and PCM commands with descriptionsManual page 1997 Mercury Cougar Standard Front Brake Caliper Exploded Diagram - 15 Inch WheelExploded parts Shift Solenoid Failure Always On - SS-1 & SS-2 Stuck ON Gear Chart (7G484)Service procedure 4.6L Vacuum Distribution Diagram - EVR, IAC, EVAP Purge & Brake Booster RoutingVacuum routing

Wiring diagram of the C185 (gray) Powertrain Control Module connector, gasoline, with the 104-pin face and circuit numbers and functions for pins 1-40.

Part of 1989-1997 Mercury Cougar Wiring Diagrams

AI caption · Photo 35 of 86

Is this accurate? Sign in to help verify it.
