What amperage is fuse 15 and when is it powered?

Fuse 15 is a 10A fuse in the I/P fuse panel that is hot in START or RUN. It feeds circuit 640 (R/V, Red/Violet) through splice S223.

What components does fuse 15 (circuit 640 R/V) power?

The instrument cluster (connectors C250 and C251, pages 60-1/60-2/60-3), air bag diagnostic monitor (C277 pin 13, page 46-1), low engine coolant switch (C194 pin 4, page 60-4), and low engine oil warning relay (C200 pin 3, page 60-3).

What does fuse 6 (15A, circuit 296 W/P) supply?

Through splice S226, circuit 296 White/Purple feeds the wiper control module (C211 pin 11), warning chime module (C220), speed control amplifier (C215 pin 4), clock (C226), A/C-heater control assembly (C265 pin 4), anti-theft controller module (C404, with anti-theft only), and remote/keyless entry module (C402 pin 6, via splice S413).

What wire color and circuit number feeds the windshield wiper motor?

Circuit 65 DG (Dark Green), from the 30A fuse 2 (hot in ACC or RUN) via splice S225, to the wiper control module (C211 pin 2) and windshield wiper motor (C151 pin 3, page 81-1).

Where is the fuse panel documented in this manual?

The I/P fuse panel is referenced to page 13-5 of the manual.

Home/ Registry/ Mercury/ Cougar/ 1989-1997/ 1997 Mercury Cougar/ Photo supermotors.net/registry/media/745649

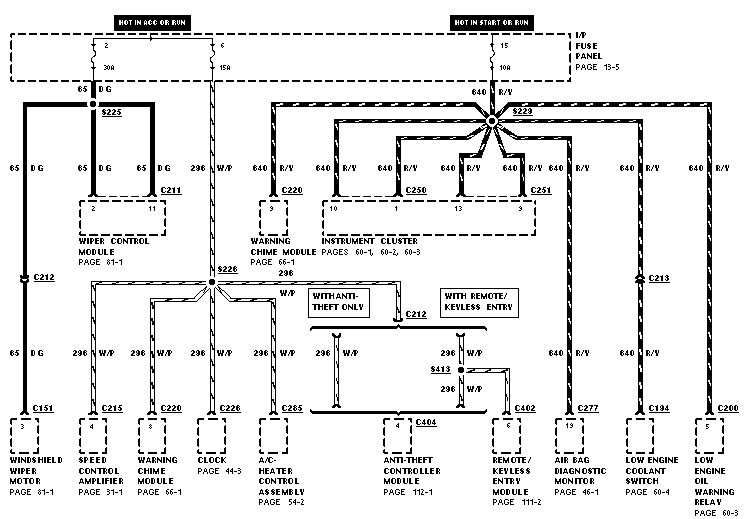

Ford Fuse 2, 6 & 15 Power Distribution Wiring Diagram - Circuits 65, 296, 640

Power distribution wiring diagram with fuse panel, instrument cluster, and modules, color-coded

‹ ›

Power distribution wiring diagram showing the fuse panel, instrument cluster, anti-theft and keyless modules with color-coded circuits.

AI caption July 2009 · Photo 45 of 86

This is a Ford EVTM-style power distribution wiring diagram showing three instrument panel fuses and the circuits they feed. Fuse 2 (30A) and fuse 6 (15A) are hot in ACC or RUN; fuse 15 (10A) is hot in START or RUN, all in the I/P fuse panel (page 13-5). Fuse 2 supplies circuit 65 (Dark Green) via splice S225 to the wiper control module (C211) and windshield wiper motor (C151). Fuse 6 supplies circuit 296 (White/Purple) via splice S226 to the wiper control module, warning chime module (C220), speed control amplifier (C215), clock (C226), A/C-heater control assembly (C265), anti-theft controller module (C404, with anti-theft only, through C212), and remote/keyless entry module (C402, via splice S413). Fuse 15 supplies circuit 640 (Red/Violet) via splice S223 to the instrument cluster (C250/C251), air bag diagnostic monitor (C277), low engine coolant switch (C194, via C213), and low engine oil warning relay (C200). Each component includes its EVTM page reference, letting a reader trace power feeds, wire colors, splice points, and connector pin numbers for diagnosing wiper, chime, cruise, clock, HVAC, keyless entry, cluster, air bag, and warning-lamp power supply issues.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What amperage is fuse 15 and when is it powered?: Fuse 15 is a 10A fuse in the I/P fuse panel that is hot in START or RUN. It feeds circuit 640 (R/V, Red/Violet) through splice S223.
What components does fuse 15 (circuit 640 R/V) power?: The instrument cluster (connectors C250 and C251, pages 60-1/60-2/60-3), air bag diagnostic monitor (C277 pin 13, page 46-1), low engine coolant switch (C194 pin 4, page 60-4), and low engine oil warning relay (C200 pin 3, page 60-3).
What does fuse 6 (15A, circuit 296 W/P) supply?: Through splice S226, circuit 296 White/Purple feeds the wiper control module (C211 pin 11), warning chime module (C220), speed control amplifier (C215 pin 4), clock (C226), A/C-heater control assembly (C265 pin 4), anti-theft controller module (C404, with anti-theft only), and remote/keyless entry module (C402 pin 6, via splice S413).
What wire color and circuit number feeds the windshield wiper motor?: Circuit 65 DG (Dark Green), from the 30A fuse 2 (hot in ACC or RUN) via splice S225, to the wiper control module (C211 pin 2) and windshield wiper motor (C151 pin 3, page 81-1).
Where is the fuse panel documented in this manual?: The I/P fuse panel is referenced to page 13-5 of the manual.
