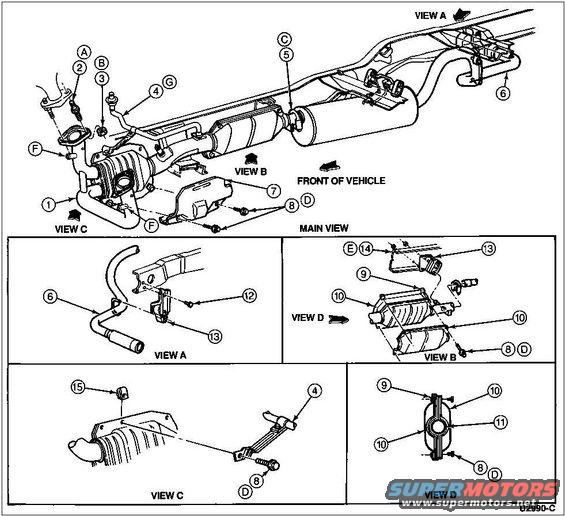

exhaust5.8l96.jpg '96 5.0L & 5.8L F-series Exhaust (except Lightning)
[url=https://www.supermotors.net/registry/media/1097789][img]https://www.supermotors.net/getfile/1097789/thumbnail/exhaustlightning.jpg[/img][/url]
IF THE IMAGE IS TOO SMALL, click it.

Before madly ripping out all the emissions systems on your vehicle, read [url=http://www.fourdoorbronco.com/board/showthread.php?5427-Emissions-Systems]this article[/url].

1  Catalytic Converter Assembly  5F250
2  Stud, Catalytic Converter-to-Exhaust Manifold  391104-S2
3  Nut, Catalytic Converter-to-Exhaust Manifold  375636-S309
4  Air Inlet Tube  9J454 (EXCEPT 5.8L)
5  Clamp  N804034-S (all EXCEPT Bronco)
6  Muffler  5230
7  Catalytic Converter Heat Shield, Front  5E287
8  Bolt, Front Heat Shield  N605905-S103
9  Nut, U-Lock  N800295-S102
10  Catalytic Converter Heat Shield, Rear  5K283
11  Catalytic Converter  5F250
12  Rivet  N647098-S
13  Muffler Assembly Bracket  5A246 (E6TZ-5A246-B)
14  Nut, Support Bracket  N620481-S2
15  Nut, U-Lock  N803714-S102
A - Tighten to 40-50 Nm (30-37 Lb-Ft)
B - Tighten to 34-46 Nm (24-34 Lb-Ft)
C - Tighten to 54-71 Nm (40-52 Lb-Ft)
D - Tighten to 22-28 Nm (16-21 Lb-Ft)
E - Tighten to 17-23 Nm (13-17 Lb-Ft)
F - Upstream HEGO bungs: Left-B2S1; Right-B1S1
G - 5.0L 50 States 5.8L 49 States (No Air Inlet Tube on California 5.8L)

The unidentified object in the main pipe directly below "4G" is the downstream HEGO (B1S2).

Note: It is normal for a certain amount of moisture and staining to be present around the muffler seams. The presence of soot, light surface rust or moisture does not indicate a faulty muffler.

To check for leaks, read this caption:
[url=https://www.supermotors.net/registry/media/998125][img]https://www.supermotors.net/getfile/998125/thumbnail/stethoscope.jpg[/img][/url]

** Exhaust System Alignment **

A misaligned exhaust system is usually indicated by vibration, grounding, rattling or binding of system components. Often the associated noise is hard to distinguish from other chassis noises. Look for broken or loose clamps and brackets. Replace or tighten as necessary. It is important that exhaust clearances and alignment be maintained.

Perform the following procedures to align the system:

1. Loosen the retaining hardware, clamp and the pipe support brackets.

2. Align the exhaust system, beginning at the front of the vehicle, to establish maximum clearance.

3. Tighten all retainers to specification. Note: Tighten the flange nuts and the exhaust manifold nuts evenly and alternately.

Note: Three way catalytic converters (TWC) (5E212), exhaust inlet pipes (5246), mufflers (5230), brackets, clamps and insulators should be replaced if they are worn or badly corroded. Do not attempt to service these parts.

4. Start the engine and check the exhaust system for leaks.

** Service fix for Noise: Loose Catalyst or Muffler Heat Shields **

NOTE: At idle or during normal driving conditions, a buzz or rattle may be detected, which can be traced to the exhaust system. The heat shield attachment to the muffler or catalyst may come free. The loose shield will vibrate off the muffler or catalyst and cause the buzz or rattle.

1. Attach two worm clamps (Part #391218 ) to the catalyst or muffler as shown in the illustration.  NOTE: The catalyst may have two cans. If shields on both cans are loose, four clamps (2 of each) will be required.

2. Align the clamp to secure the heat shield to the muffler or catalyst.  NOTE: Torque the clamp to no more than 68 N-m (60 in-lb).

3. Trim excess band to approximately 25.4mm (1 inch).
