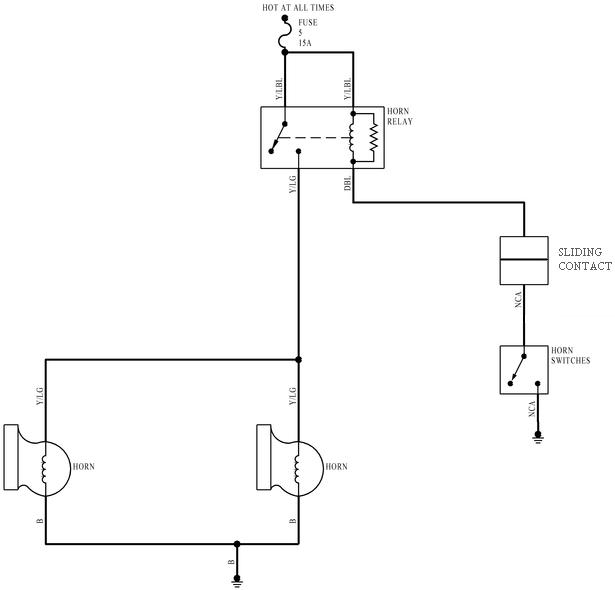

horncircuit.jpg '92-93 Horn Circuit w/Cruise Control

'94-96 is essentially the same, except the "sliding contact" is replaced by the airbag clock spring.  In '93-96, the horn switch ground is inside the cruise servo (if equipped), or the cruise jumper.

'80-91 uses a 3-terminal horn relay mounted on or near the cruise module under the dash.
horncircuit.jpg | Hits: 11575 | Posted on: 7/14/03 | View original size (19.53 KB)

'92-93 Horn Circuit w/Cruise Control

'94-96 is essentially the same, except the "sliding contact" is replaced by the airbag clock spring. In '93-96, the horn switch ground is inside the cruise servo (if equipped), or the cruise jumper.

'80-91 uses a 3-terminal horn relay mounted on or near the cruise module under the dash.
