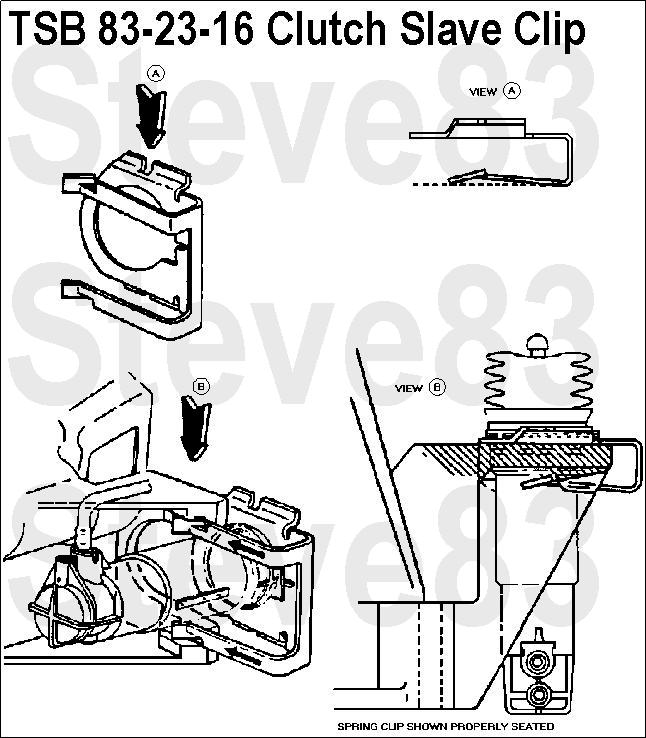

tsb832316clutchslaveclip.jpg TSB 83-23-16Clutch  Slave Clip

LIGHT TRUCKS: 1983 F-250 HD/F-350

When servicing the slave cylinder, care must be taken during reinstallation to make sure both tabs on the spring clip are properly seated into place on the flywheel housing. Incorrectly seated clips could work loose from the housing and cause the slave cylinder to become disengaged, resulting in an inoperative clutch system and potential damage to the slave cylinder internal components.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY

For other TSBs, check [url=http://www.revbase.com/BBBMotor/]here[/url].
tsb832316clutchslaveclip.jpg | Hits: 3515 | Posted on: 4/20/09 | View original size (92.46 KB)

TSB 83-23-16Clutch Slave Clip

LIGHT TRUCKS: 1983 F-250 HD/F-350

When servicing the slave cylinder, care must be taken during reinstallation to make sure both tabs on the spring clip are properly seated into place on the flywheel housing. Incorrectly seated clips could work loose from the housing and cause the slave cylinder to become disengaged, resulting in an inoperative clutch system and potential damage to the slave cylinder internal components.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY

For other TSBs, check here.
