Engine Compartment Wiring Harness Diagram - Underhood Fuse Block & Relay Locations

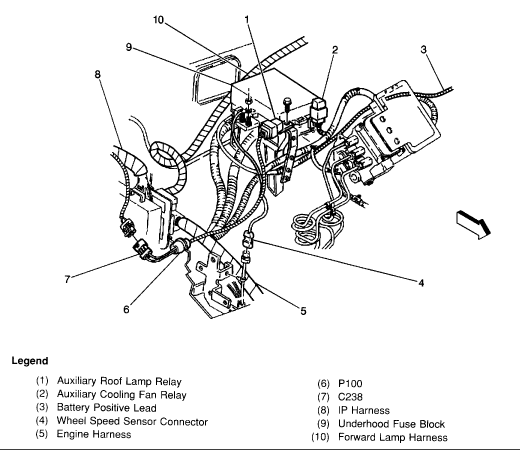

This document is a schematic-style component location diagram showing the routing and connection points of an engine compartment wiring harness. Ten numbered callouts identify major electrical components and harness segments, which are decoded in a legend beneath the illustration. Identified items include the Auxiliary Roof Lamp Relay (1), Auxiliary Cooling Fan Relay (2), Battery Positive Lead (3), Wheel Speed Sensor Connector (4), Engine Harness (5), connector/grommet identifiers P100 (6) and C238 (7), the IP (instrument panel) Harness (8), the Underhood Fuse Block (9), and the Forward Lamp Harness (10). The drawing depicts how these harnesses converge near the underhood fuse block and where the battery positive lead and various connectors attach. A directional arrow in the drawing indicates orientation (likely vehicle front). A reader can use this diagram to locate specific harness branches, relays, and connectors in the engine bay when diagnosing electrical problems, tracing wiring between the instrument panel and engine harnesses, or identifying pass-through points such as P100 and C238. The document contains no fuse amperage values, wire colors, part numbers, or stated vehicle year/model applicability; it is purely a component location/identification illustration with legend.
