2007 Ford Crown Victoria 4.6L Coolant Pump Exploded Diagram & Torque Specs

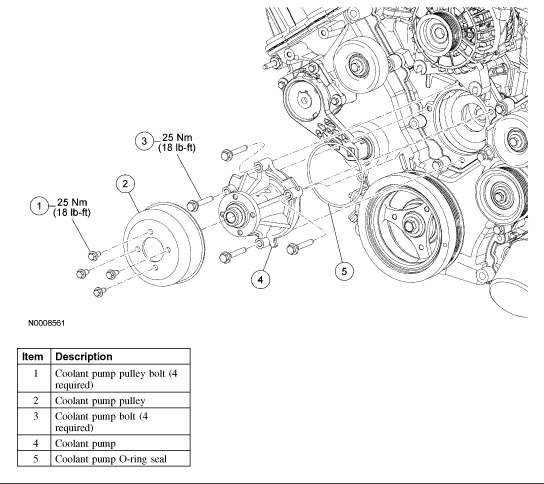

This document is an exploded-view parts diagram showing the coolant pump (water pump) assembly on the front of an engine, uploaded to the gallery of a 2007 Ford Crown Victoria. The illustration identifies five numbered components: (1) the coolant pump pulley bolts (4 required), (2) the coolant pump pulley, (3) the coolant pump bolts (4 required), (4) the coolant pump itself, and (5) the coolant pump O-ring seal. Torque specifications are given in callouts on the drawing: both the coolant pump pulley bolts (item 1) and the coolant pump bolts (item 3) are tightened to 25 Nm (18 lb-ft). The drawing shows the pump and pulley positioned in front of the engine's front cover, with the crankshaft pulley/harmonic balancer and accessory drive components visible in the background, indicating the pump mounts to the front of the engine and seals with an O-ring rather than a flat gasket. The figure reference number N0008561 appears below the illustration. A reader can learn the assembly order, required fastener counts, sealing method, and the correct torque values for reinstalling the coolant pump and its pulley.
